Ethernet Network Interface Card BCM957412A4120AC

End-to-end System Anticipates and Prevents Congestion Proactively
Model BCM957412A4120AC
Ports Dual
ASIC BCM57412
System Interface Type
 PCIe 3.0 x 8
Warranty 3 Years

Facebook Twitter Pinterest LinkedIn 分享

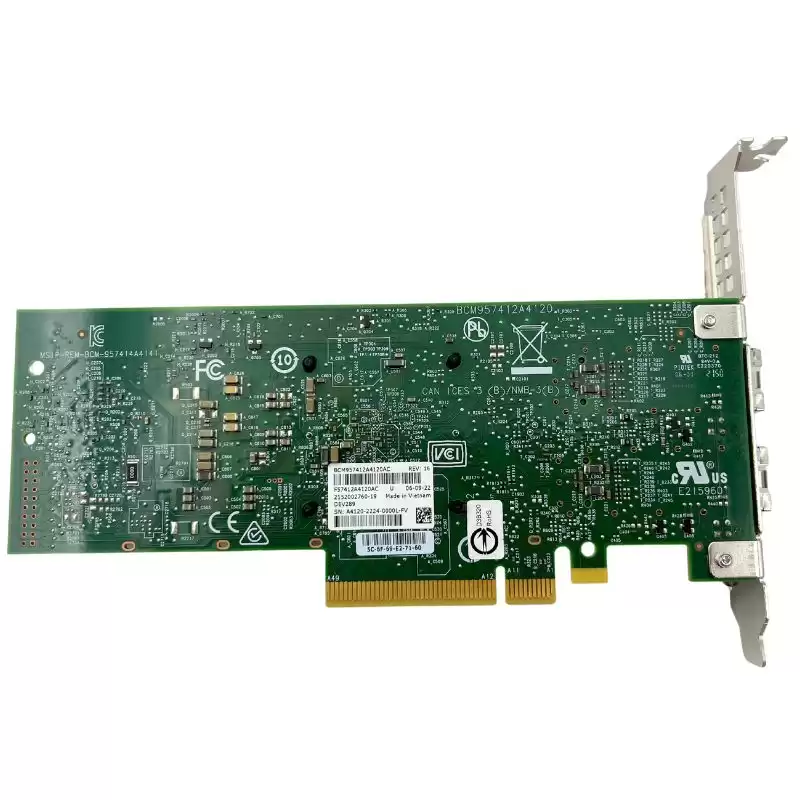

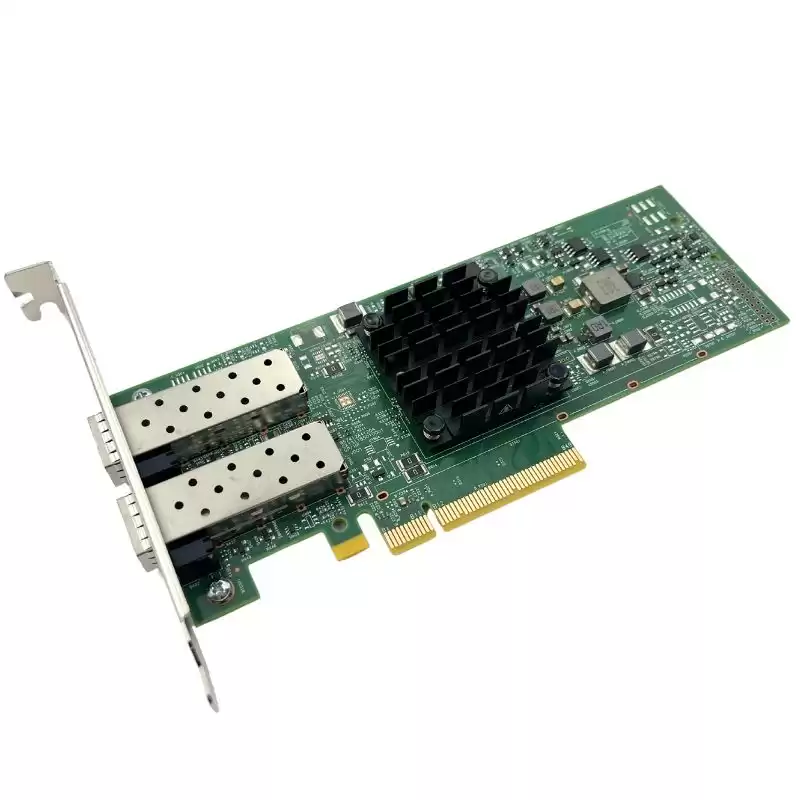

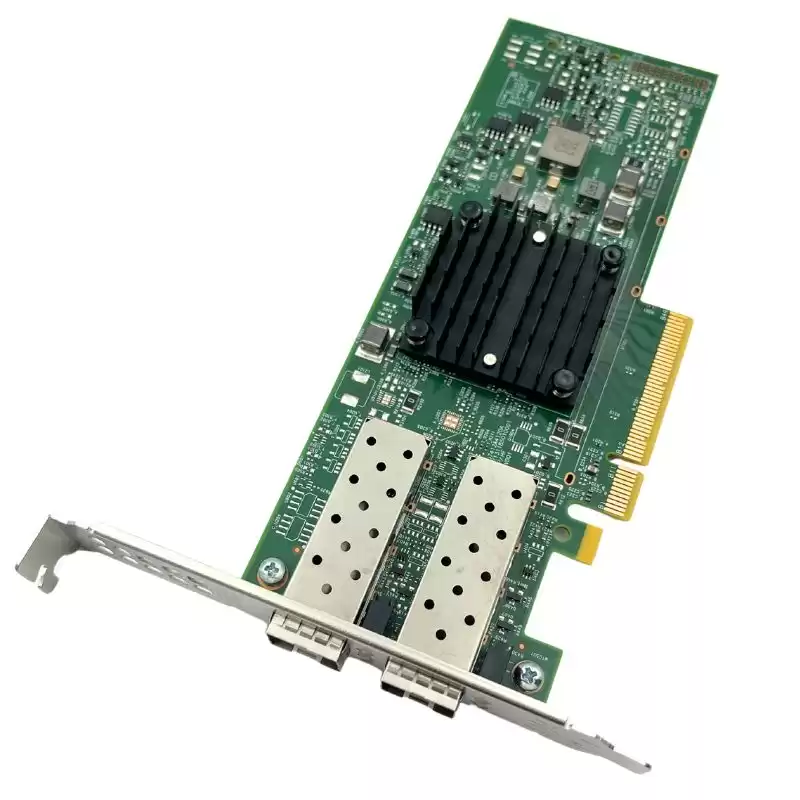

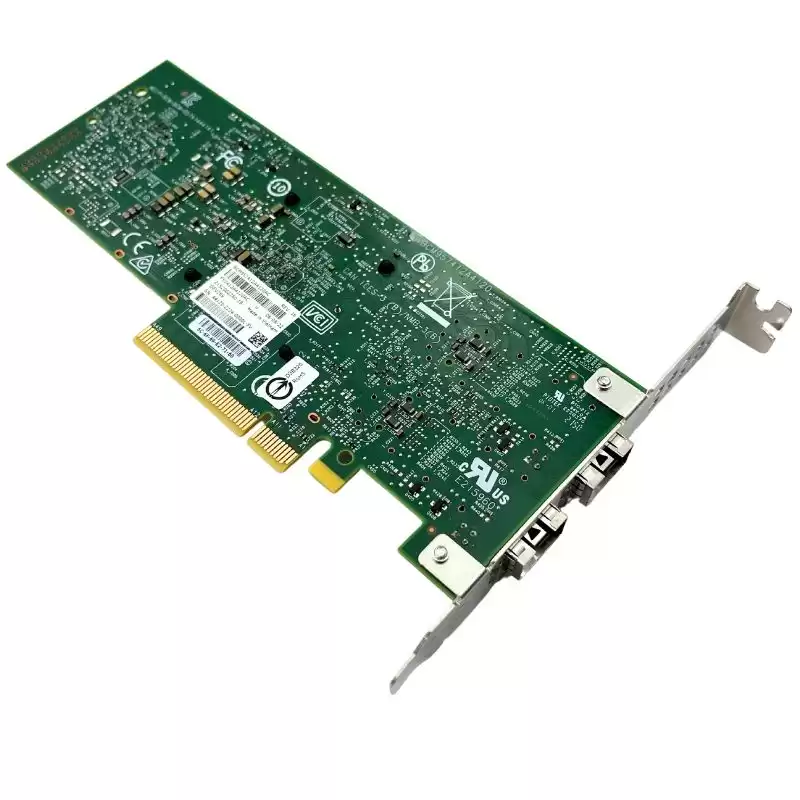

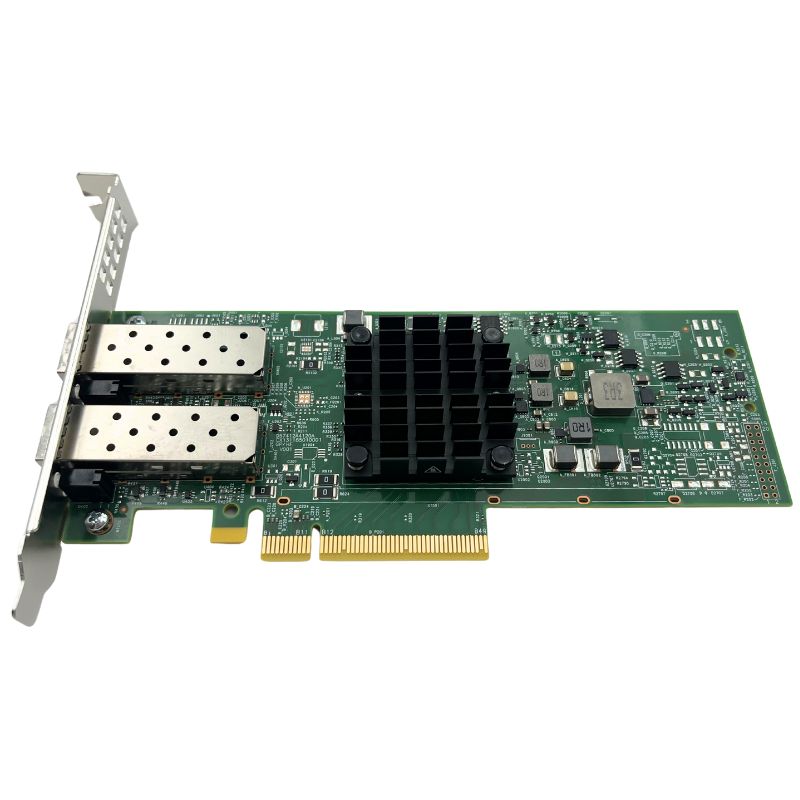

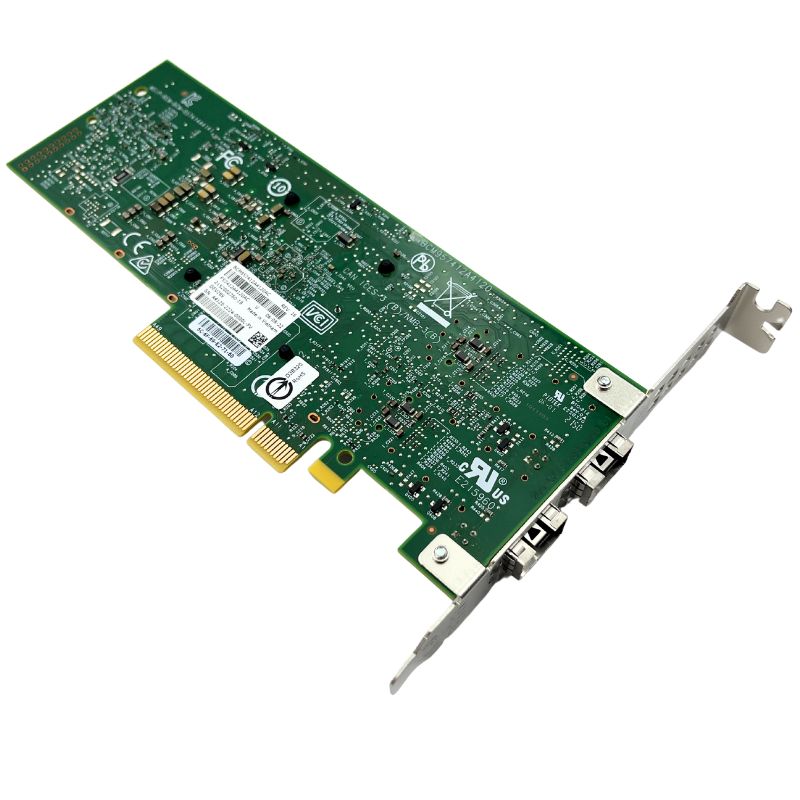

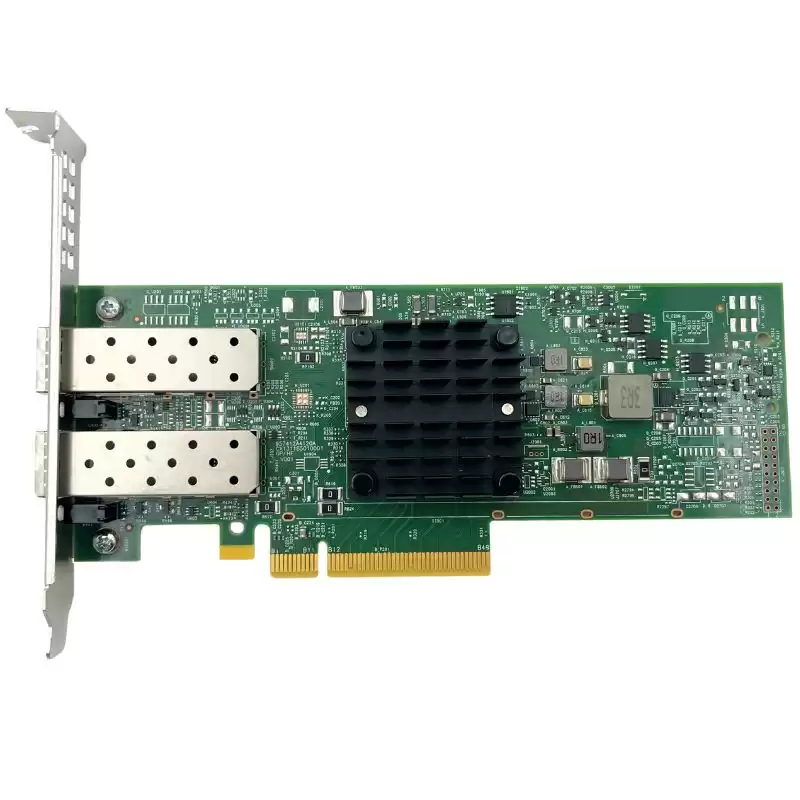

BCM957412A4120AC 10GbE Dual-port SFP+, PCIe 3.0 x 8
Applications
The BCM957412A4120AC is a dual-port 10 Gb/s PCI-Express 3.0 x8 Network Interface Card that supports both SFP+ optical modules and copper direct-attach cables. It features the Broadcom BCM57412 10GbE MAC controller with an integrated dual-channel 10GbE SFI transceiver. The card is equipped with advanced technologies such as RoCE, SDN, and NFV to ensure efficient network management.

Built on the scalable BCM57412 10GbE MAC controller architecture, the P210P 2x10G PCIe NIC is engineered to deliver highly scalable and feature-rich networking solutions for servers. It is ideal for enterprise and cloud-scale networking and storage applications, including high-performance computing, telecommunications, machine learning, storage disaggregation, and data analytics.
Key Features
  • The dual-port pluggable media interface supports both 10G SFP+ optical transceivers and copper direct-attach cables.
  • It is fully compliant with the SFF-8402 standard and adheres to the x8 PCI Express v3.0 specification.
  • The interface features SR-IOV with support for up to 128 virtual functions (VFs) and includes Function Level Reset (FLR) capability.
  • It enables virtual network termination for protocols such as VXLAN, NVGRE, and GRE encapsulation/decapsulation, along with vSwitch acceleration.
  • Additionally, it provides tunnel-aware stateless offloads and supports RDMA over Converged Ethernet (RoCE).
  • The interface also complies with the SMBus 2.0 standard.
Specification
Model BCM957412A4120AC
Data Rate Per Port 10/1GbE
Connector Type SFP+
Bracket Height Full Height and Low Profile
Controller BCM57412
Systems Interface Type PCIe 3.0x 8(8.0 GT/s)

Lead time

Quantity (pieces) 1-10 10-60 >60
Lead time (days) 3 3-5 To be negotiated



About US


About us
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!
Our Advantages

Shipping & Packing
  • Packing: standard export packing or customized packing
  • Shipping Ways:
      By express (3-7 days via DHL, UPS, TNT, FEDEX; 5-10 day Via EMS)
      By air or sea or combined tranportation

FAQ
Q1: What payment method do you accept?
A1: Trade assurance, T/T, Western Union

Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.

Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.

Q4: How about the warranty service?
A4: 3 year for warranty free.
