Ethernet Network Interface Card BCM957504-N425G

Quad-Port 25 Gb/s SFP28 Ethernet PCI Express 4.0 x16 OCP 3.0 SFF Network Adapter
Model BCM957504-N425G
Ports Quad
ASIC BCM57504
System Interface Type
 PCIe 4.0 x16
Warranty 3 Years

Facebook Twitter Pinterest LinkedIn 分享
BCM957504-N425G  25 Gb/s  Quad-Port , SFP28 PCIe 4.0 x16
Applications

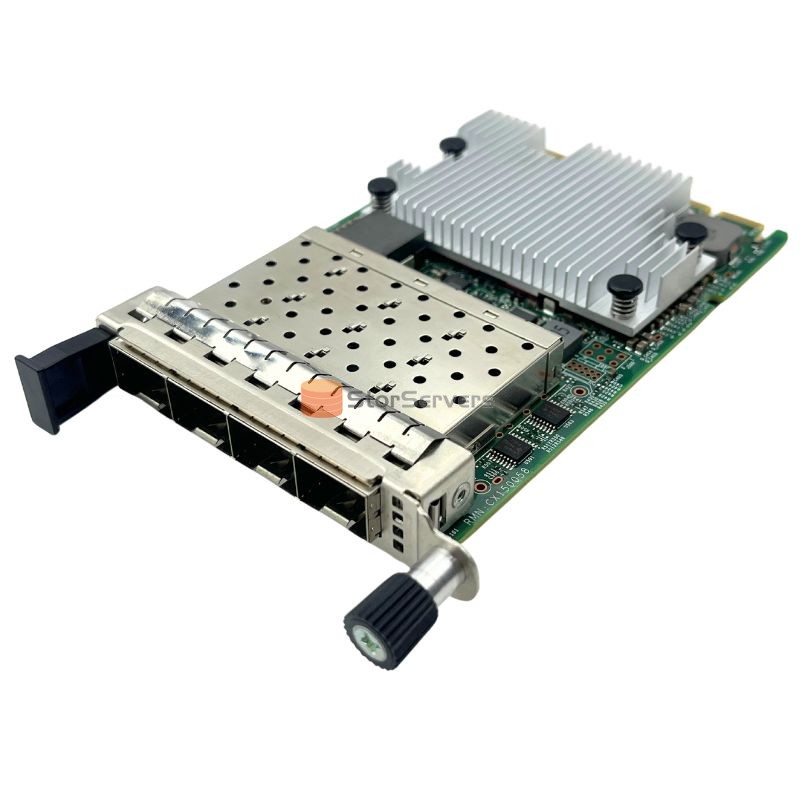

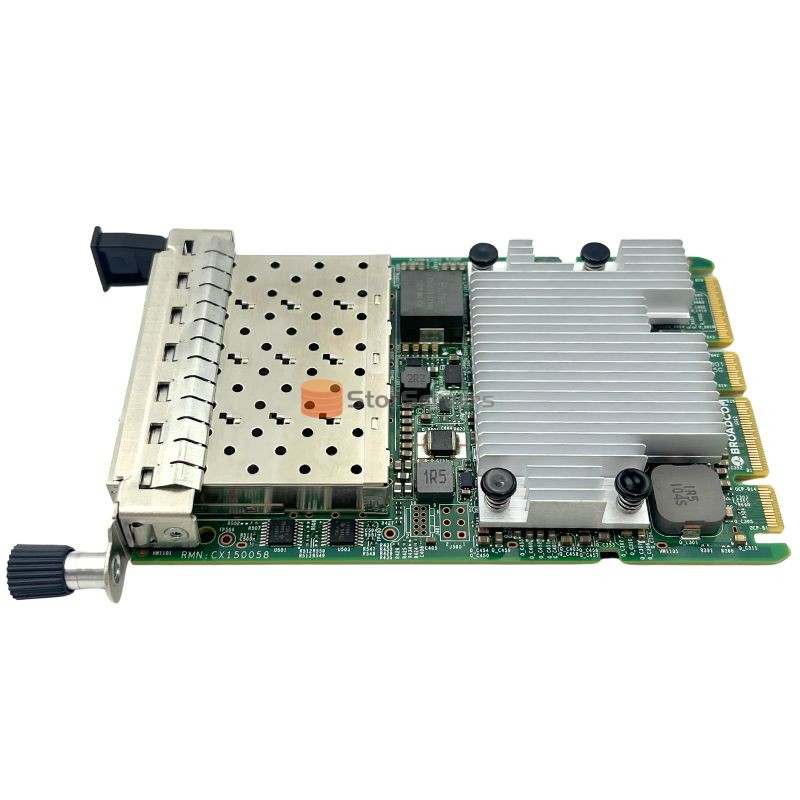

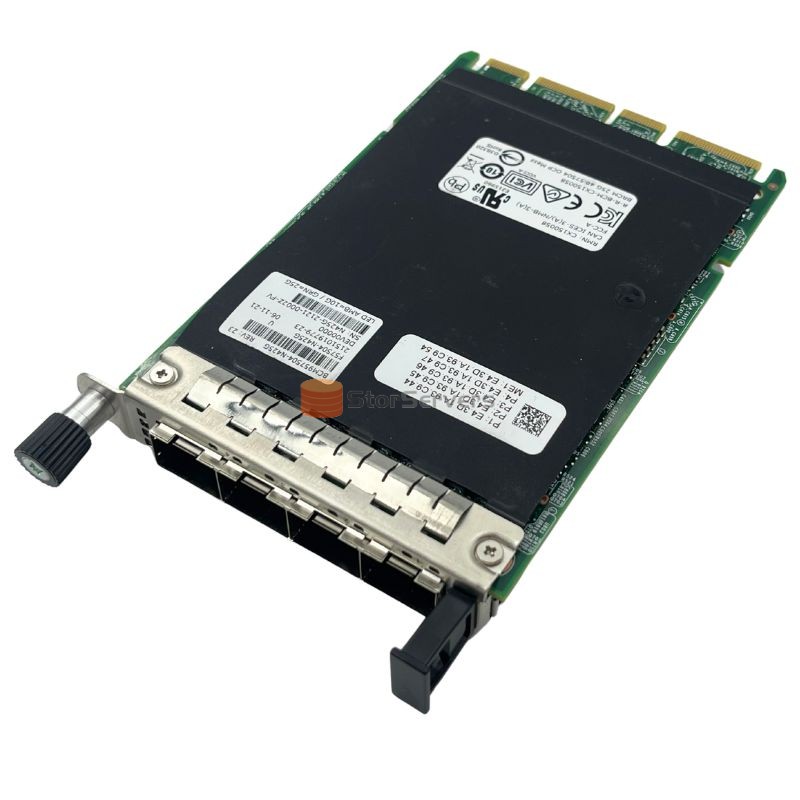

 The Broadcom  BCM957504-N425G is a quad-port 25 Gb/s PCI Express 4.0 x16 network adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with four SFP28 network connectors. The adapter supports SFP28/SFP+ optical modules and copper direct-attach cables. The network adapter uses the Broadcom BCM57504 100GbE MAC controller with an integrated quad-channel 25GbE SFI transceiver.
Key Features
  • Quad-port pluggable media interface, compatible with a SFP28/SFP+ optical transceiver or a copper direct attach cable.
  • Industry’s most secure PCIe adapter solution leveraging Broadcom’s BroadSAFE technology.
  • Multi-Host up to four hosts.
  • Fully compliant with the SFF-8402 standard.
  • x16 PCI Express 4.0 compliant.
  • OCP 3.0 FRU support.
Specification
Model BCM957504-N425G
Data Rate Per Port 25 Gb/s
Connector Type SFP28
Bracket Height

half-height OCP 3.0
Controller BCM57504
Systems Interface Type PCIe 4.0 x16

Lead time

Quantity (pieces) 1-10 10-60 >60
Lead time (days) 3 3-5 To be negotiated
