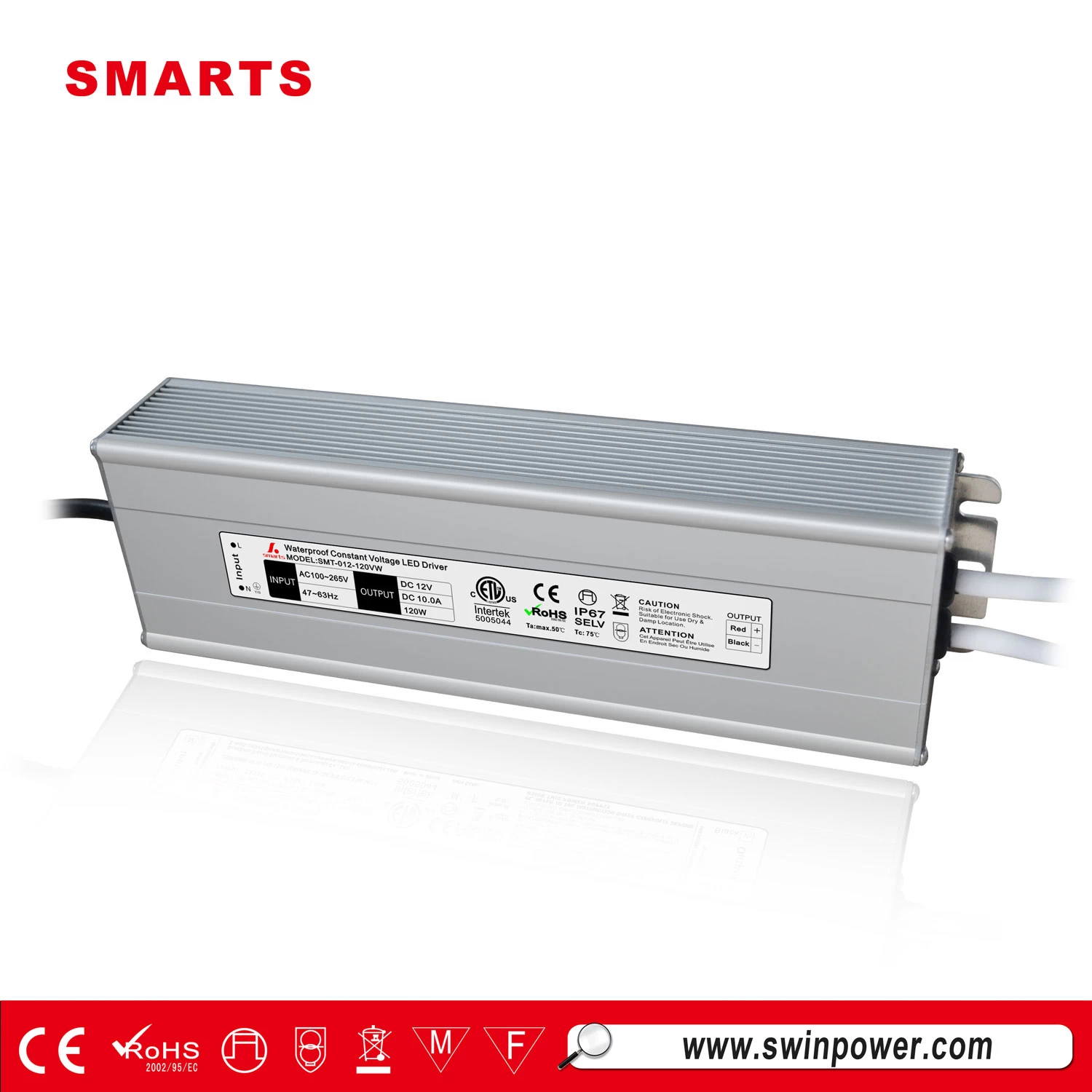

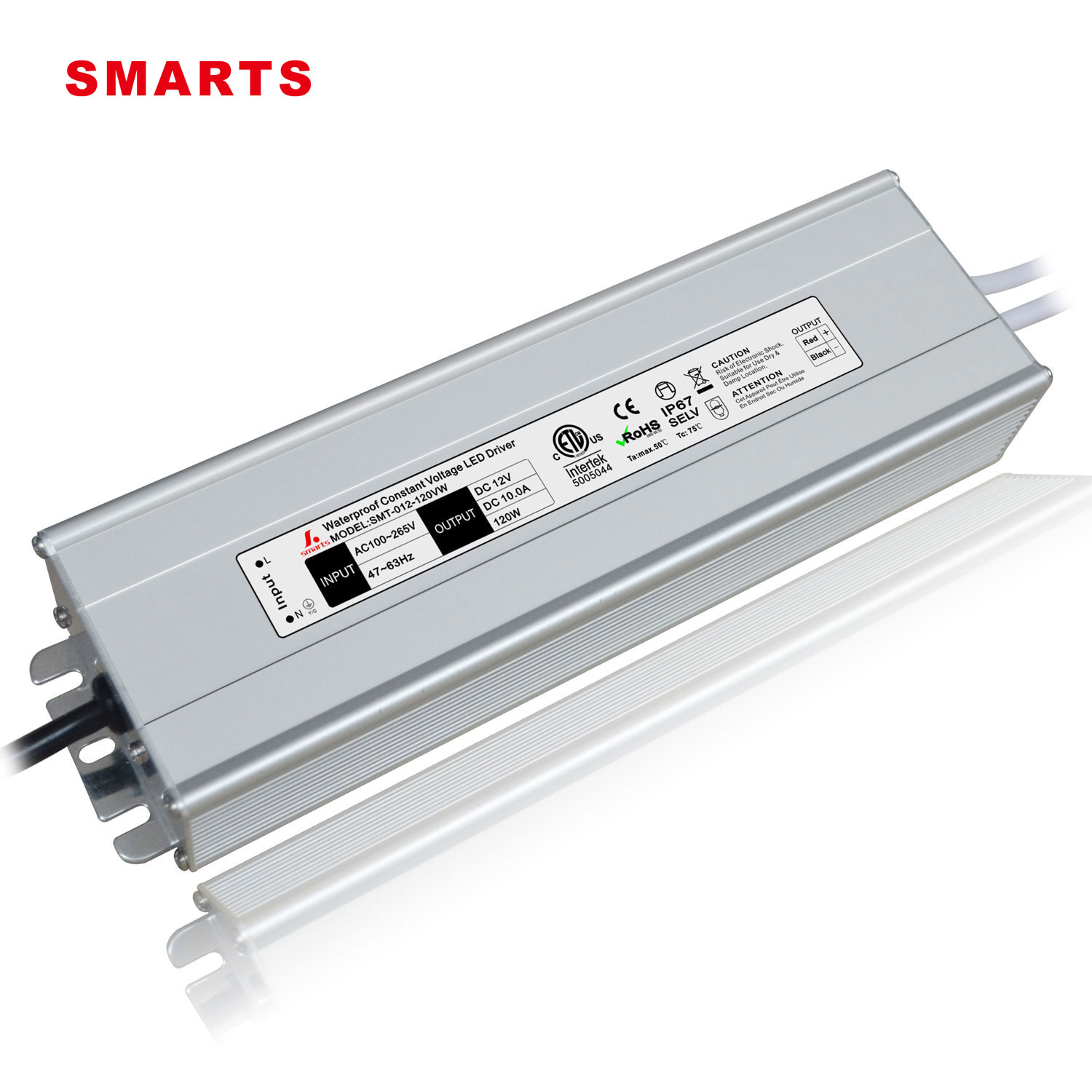

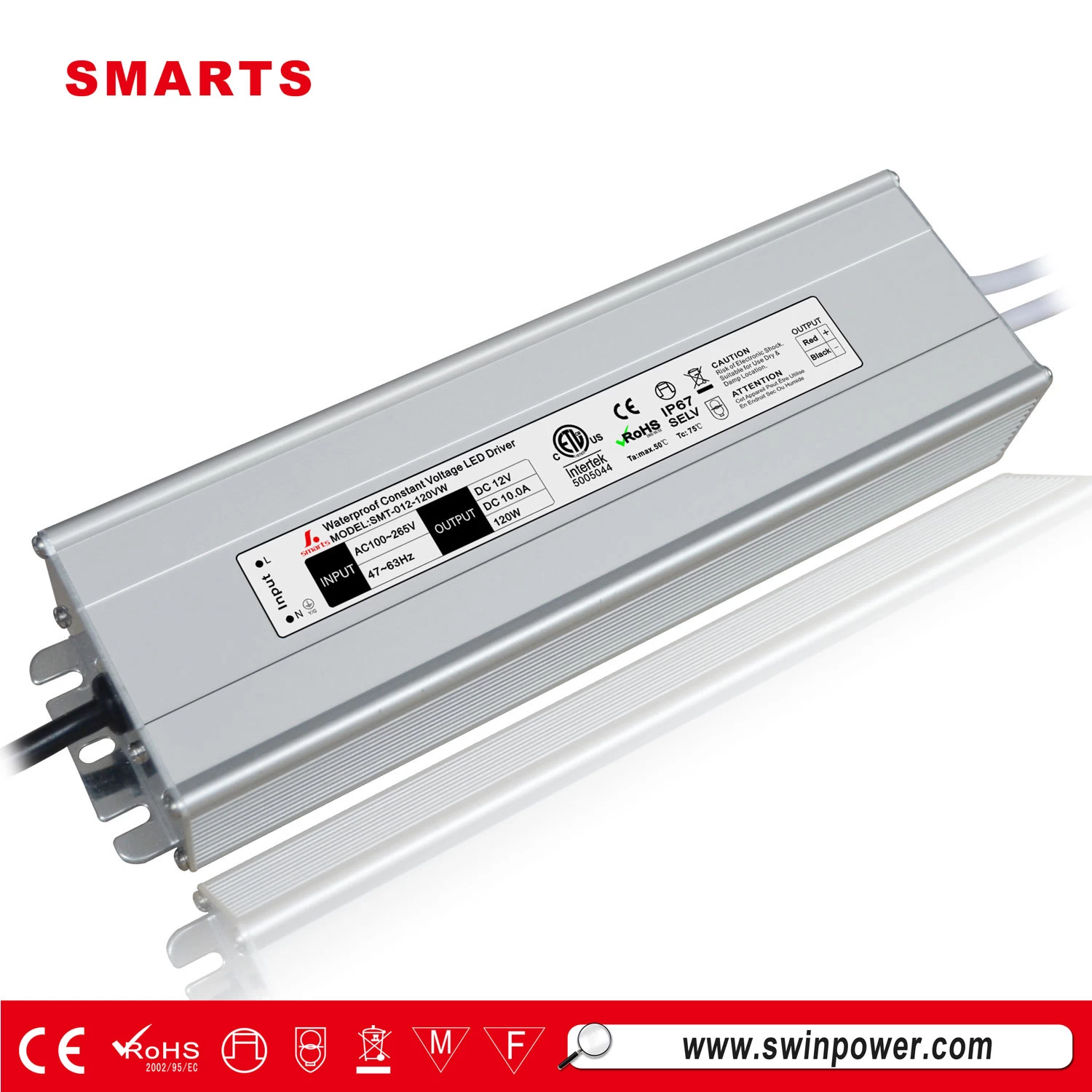

ETL approved AC 240v DC 12vdc 120W 10A LED transformer


SMT-012-120VW is 12vdc LED transformer, it is waterproof IP67 verison. It has CE ETL ROHS approved.



  • CertificationCE/ETL/ROHS
  • Size215×69×43
  • Dimming modenon
  • Working Mode120W
  • Output Current10A
  • Output Voltage12Vdc&24Vdc
  • Input Voltage100-265Vac

ETL approved AC 240v DC 12vdc 120W 10A LED transformer


SMT-012-120VW is 12vdc LED transformer, it is waterproof IP67 verison. It has CE ETL ROHS approved.



Features of 12vdc LED transformer


● IP67 for indoor or outdoor installations

● Protections:Short circuit/Overload/Over temperature

● Cooling by free air convection

● 100% full load burn-in test

● Suitable for LED lighting

● Products through ETL,CE,RoHS Certification

●3 years warranty


Specification of 12vdc LED transformer:


SPECIFICAION
MODEL SMT-012-120VW SMT-024-120VW
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 10.0A 5.0A
CURRENT RANGE 0~10.0A 0~5.0A
RATED POWER 120W 120W
RIPPLE&NOISE(max) 150mV 150mV
VOLTAGE TOLERANCE ±0.5V ±0.5V
SETUP RISE TIME 80ms/110V,220VAC
HOLD UP TIME(Typ.) 60ms/110V,220VAC
INPUT VOLTAGE RANGE 100~265VAC
FREQUENCY RANGE 50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) ﹥83%
AC CURRENT(Typ.) 0.92A/110VAC, 0.86A/220VAC
INRUSH CURRENT (Typ.) COLD START 50A/110VAC, 220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload protected@145-160% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS CE ETL. Mark(LVD),IP67
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC  IP-GND:1.5KVAC
EMC Test Standards EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE 1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25 of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
    capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.



FAQ:


What is the voltage of a white LED?




The typical forward voltage of a white LED is in the range of 3V to 5V. Since the best choice to power white LEDs is a constant current source and the input voltage range of a Li-Ion battery is below or equal to the LED forward voltage a new power supply solution is required.
