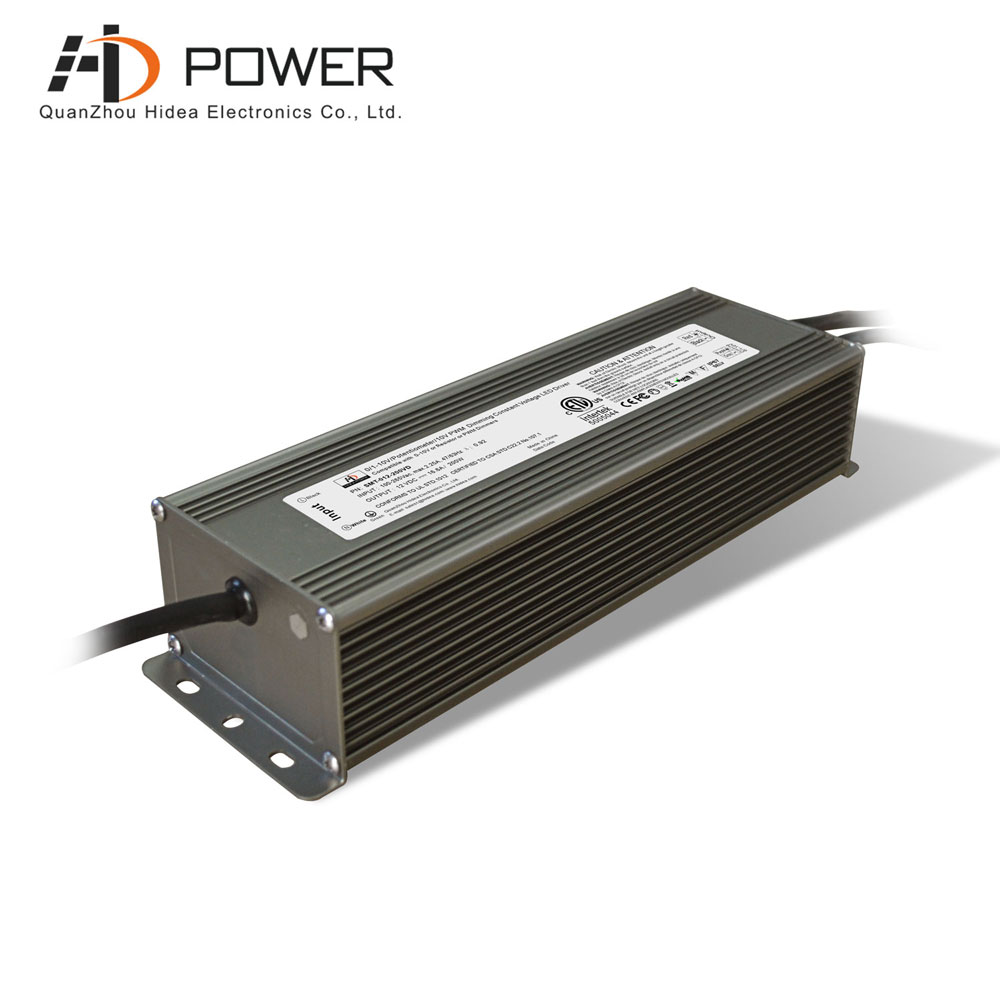

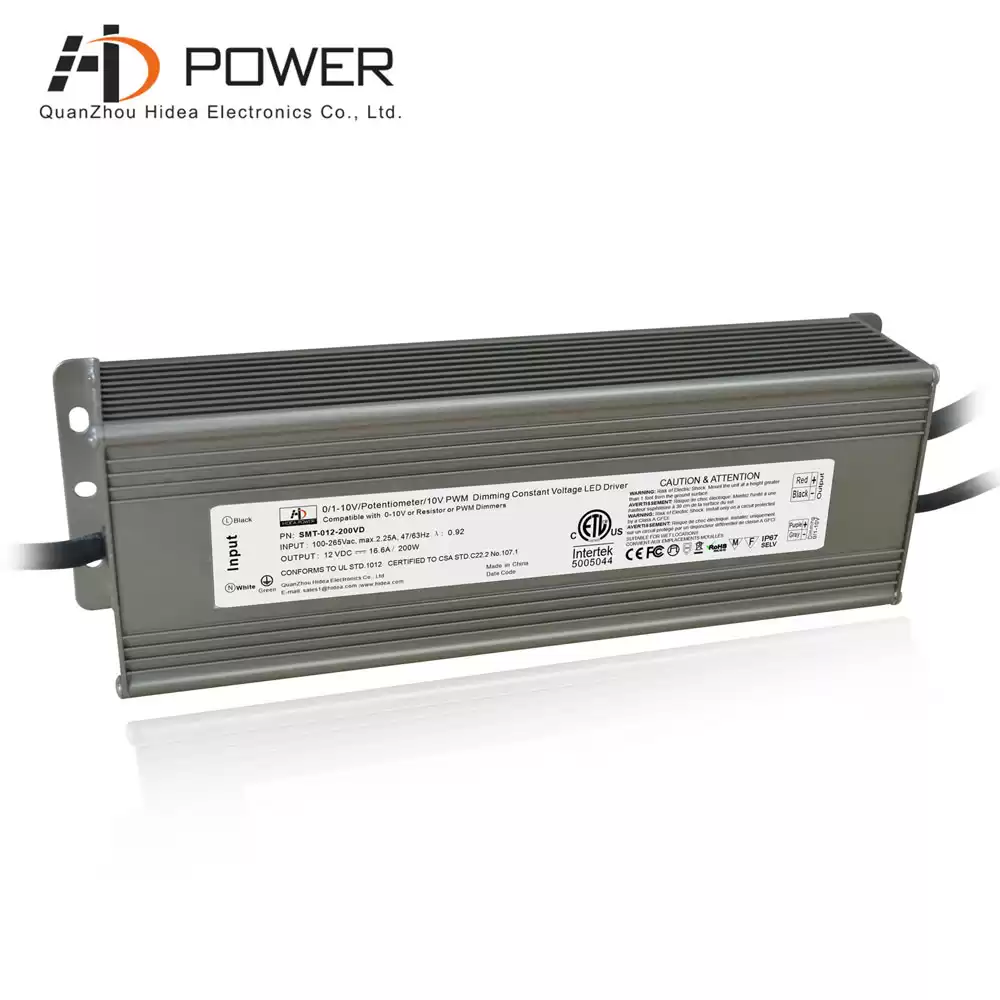

ETL CE listed 12v 200w dimmable led driver

SMT-012-200VD is 200w 12v dimmable power supply, for lighting , LED XPL Linear Light of Hylite Led Lighting ultra-efficient use. It can dimming well with Lutron 0-10v dimmers.


  • Size255*80*53mm
  • Shape & SizeStandard Size
  • Output Voltage12/24Vdc
  • Output Power(Watt)200W
  • Input Voltage100-265Vac
  • Weight1800g
  • Working ModeConstnat Voltage LED Driver
  • Dimming Mode0-10V Dimming
  • CertificationETL
  • Warranty5 Years

12v dimmable power supply are available in 20–200 watt models. The amount of power needed for your application is dependent on the watts required by your LED lighting. it can working with Hylite Led Lighting LED XPL Linear Light wet locations.

  Specification

Model SMT-012-200VD SMT-024-200VD
Output DC Voltage 12V 24V
Voltage Accuracy ±0.5V
Rated current 0~16.67A 0~8.33A
Rated power 200W 200W
Input Voltage Range 100-265VAC
Frequency Range 47~63HZ
Power Factor ( Typ.) PF≧0.90/120V / PF≧0.90/220V
Full Load Efficiency(Typ.) >88%(120V)/  >88%(220V) >88%(120V) / >88%(220V)
AC Current(Typ.) 2.104A@120V 1.148A@220V
Leakage current ﹤0.9mA/120VAC / ﹤0.7mA/220VAC
Protection Short Circuit Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over voltage ≦150VAC / ≦280VAC
Over temperature 100℃±10℃ shut down o/p voltage, re-power on to recover
Environment Working TEMP. -40~+50℃
Working Humidity 20~95%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z  axes
Safety&EMC Safety standards EN61347-1 EN61347-2-13  IP67
Withstand voltage I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC
Isolation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC EMISSION Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level
Others Weight 1.8Kg
Size 255*80*53mm(L*W*H)
packing 440*295*145mm/8pcs/CTN    265*98*55 mm for inner box
Notes 1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .

  Compatible Light Type

SMT-012-200VD 12v dimmable power supply 200w is needed instead of standard 110-130vac/170-265vac to 12v transformers commonly used for halogen bulbs. Specifical in Hylite Led Lighting LED XPL Linear Light directional illumination.

200w dimmable led driver
