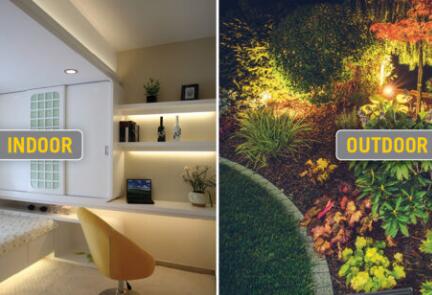

Constant Voltage waterproof led power supply 12v are reliable, long-lasting and can be used for a variety of applications such as Aceleds backlit ad signs, architecture lighting, decorative lighting, accent lighting, landscape lighting, and LED displays.
Specification
|

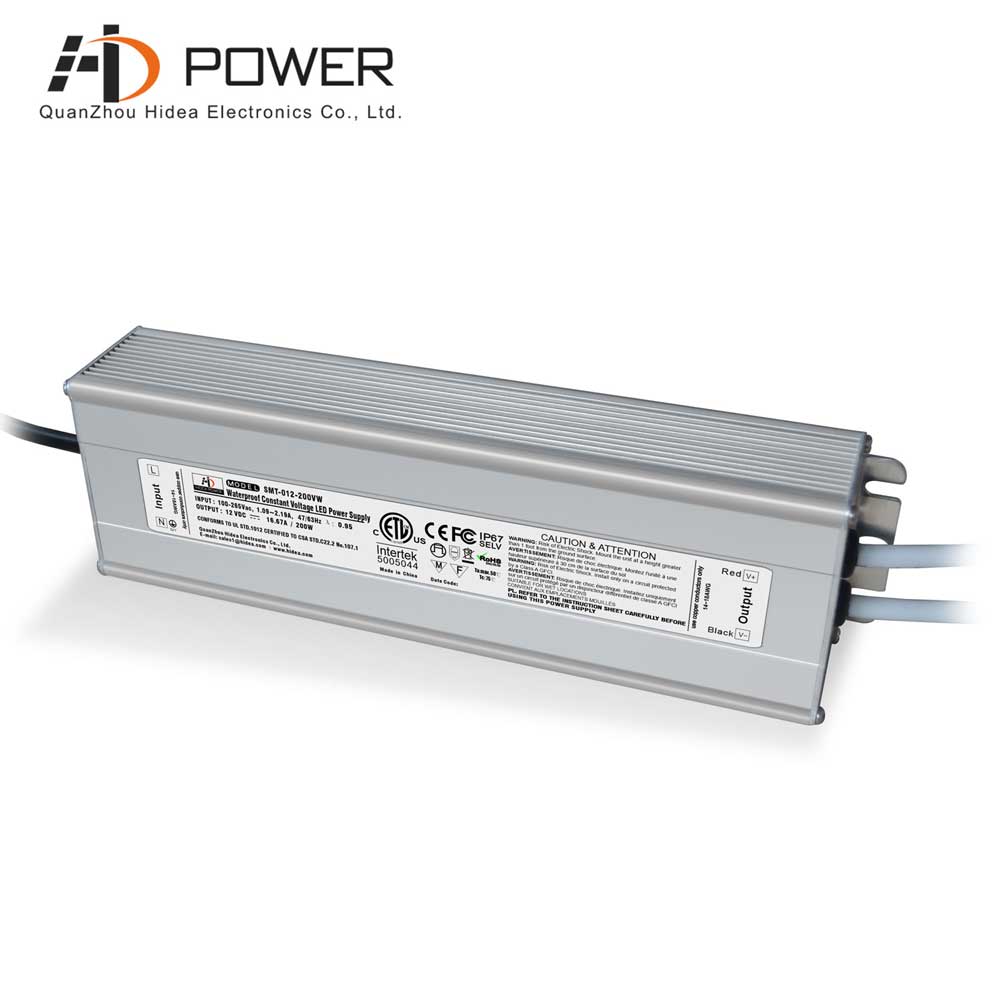

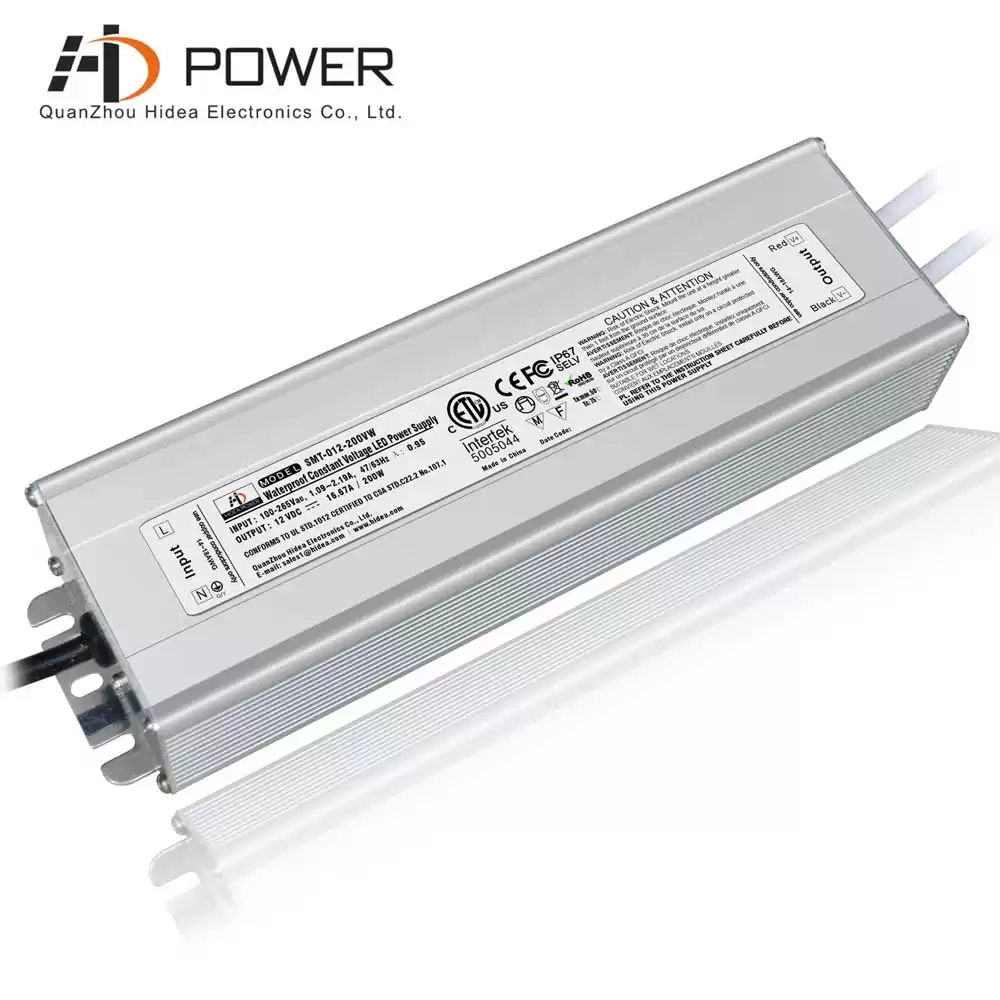

MODEL
|
SMT-012-200VW
|
SMT-024-200VW
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
16.67A
|
8.33A
|
|
CURRENT RANGE
|
0~16.67A
|
0~8.33A
|
|
RATED POWER
|
200W
|
200W
|
|
RIPPLE&NOISE(max)
|
150mV
|
150mV
|
|
VOLTAGE TOLERANCE
|
±0.5V
|
±0.5V
|
|
SETUP RISE TIME
|
80ms/110VAC, 220VAC
|
|
HOLD UP TIME(Typ.)
|
60ms/110VAC, 220VAC
|
|
INPUT
|
VOLTAGE RANGE
|
90~265VAC
|
|
FREQUENCY RANGE
|
50~60Hz
|
|
POWER FACTOR(Typ.)
|
>0.95@110VAC ; >0.98@220VAC
|
|
EFFICIENCY(Typ.)
|
﹥91%
|
|
AC CURRENT(Typ.)
|
2.10A@110VAC; 1.01A@220VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 50A/110VAC, 220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+55℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
CE ETL Mark(EMC,LVD),IP67
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3.0KVAC IP-GND:3.0KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type
Features 18 super bright LEDs in a sturdy and sealed housing, waterproof and vibration resistant design, fully submersion-rated waterproof and vibration resistant. High quality Pilotlights 12VDC led strips are compatible with outdoor led power supply.
Related Products
|
 Waterproof led power supply 12v offers an assortment of Constant Voltage LED Drivers in various wattages: 30w, 60w, 100w, 120w, 150w, 200w, 300w.

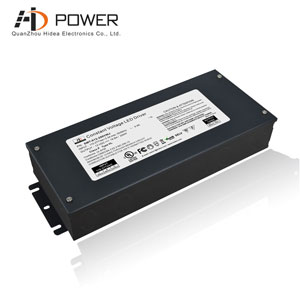

Mode：SMT-012-200VWJ
Dimming Mode : Triac Dimming
Output Power : 200W
intput voltage：100-277V AC
Size：260*103*46MM （L*W*H）
|
