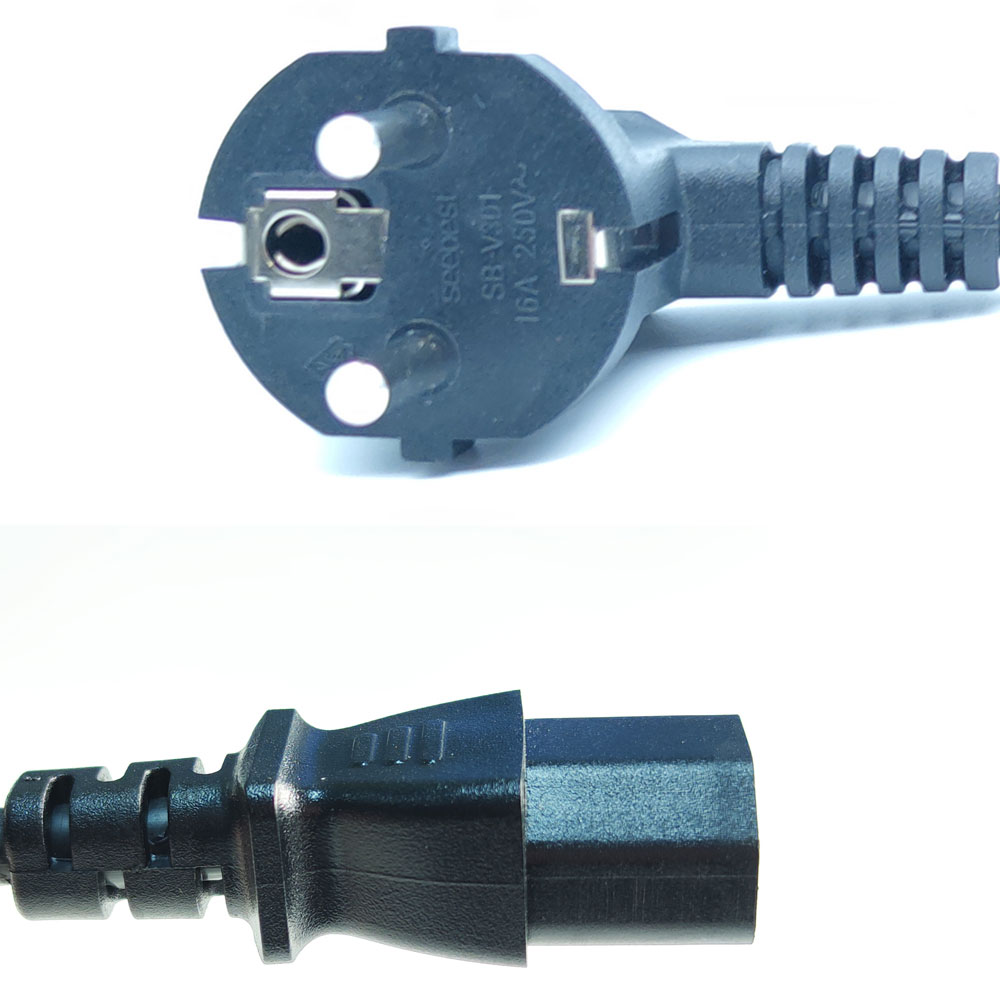

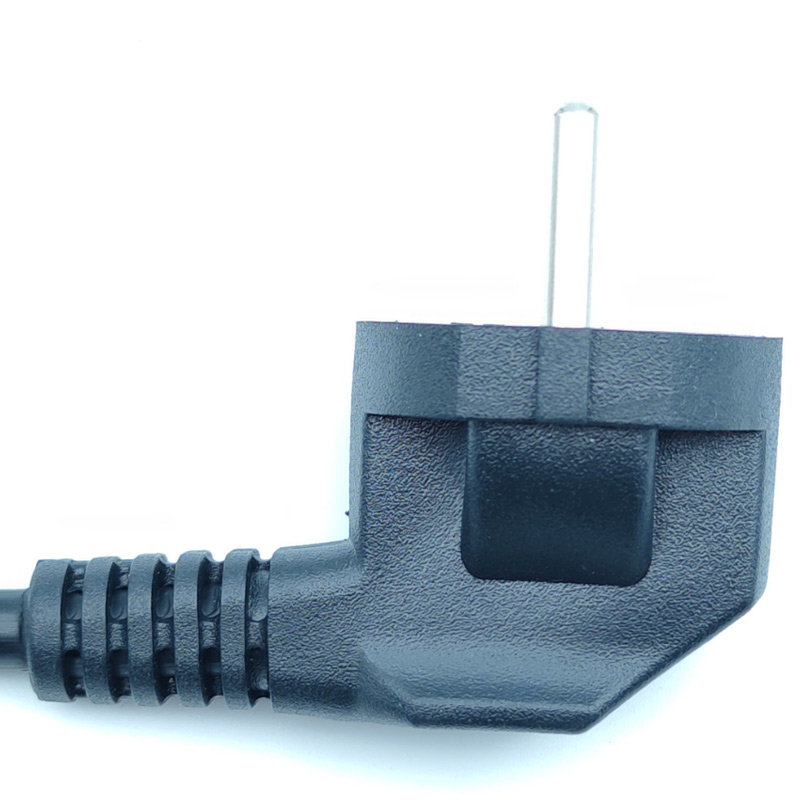

European CEE 7/7 Schuko Plug IEC C13 Connector VDE AC Power Cord
PRODUCTS FEATURES
-

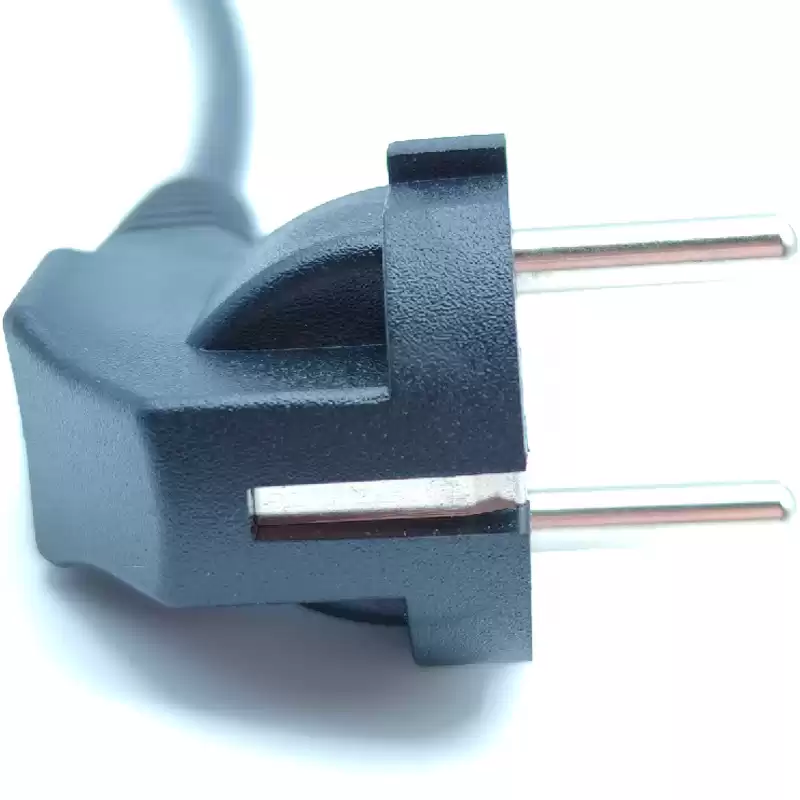

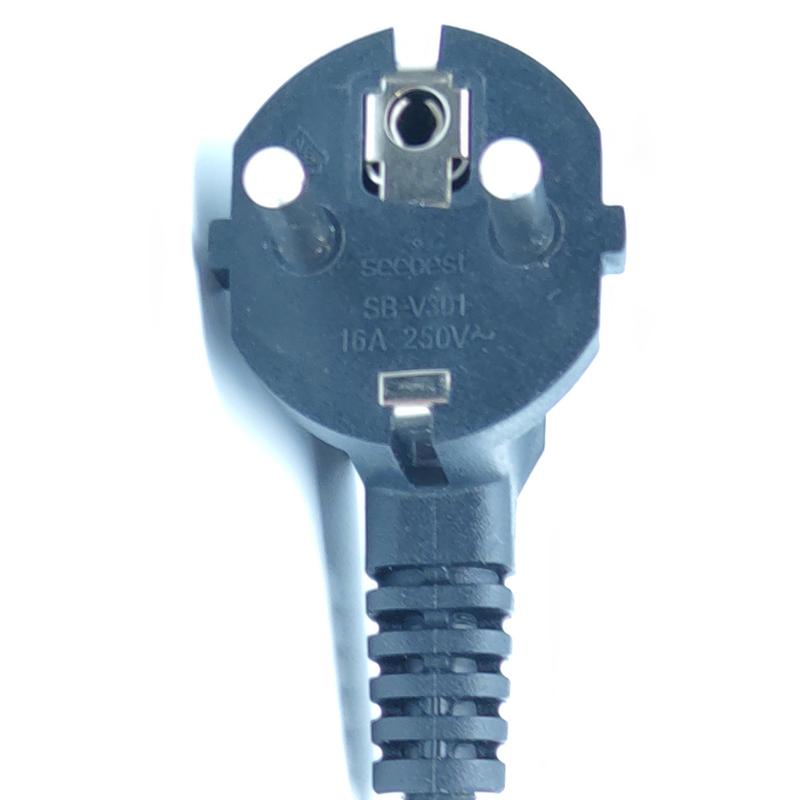

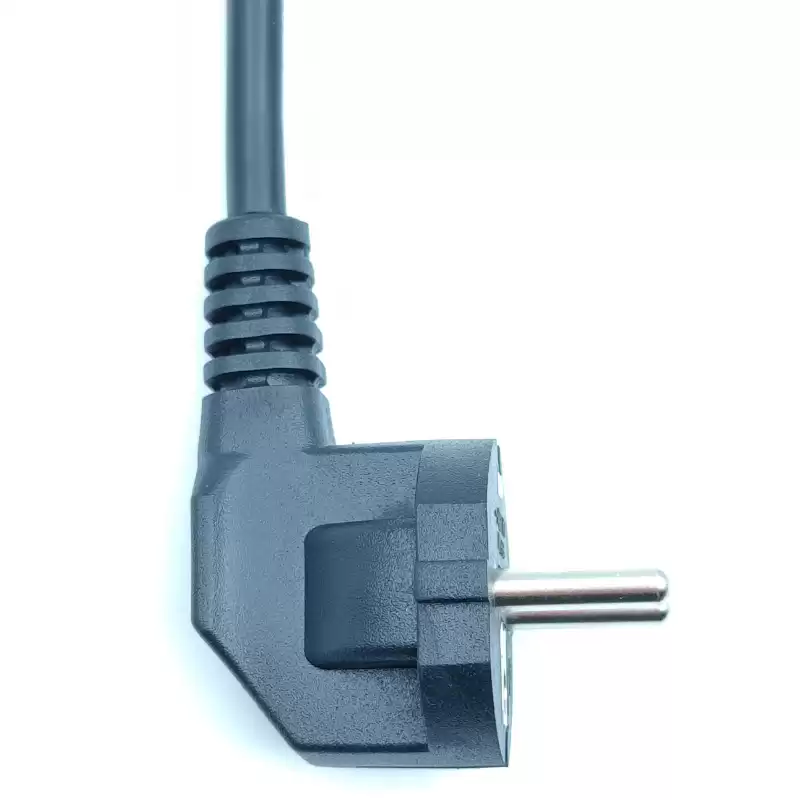

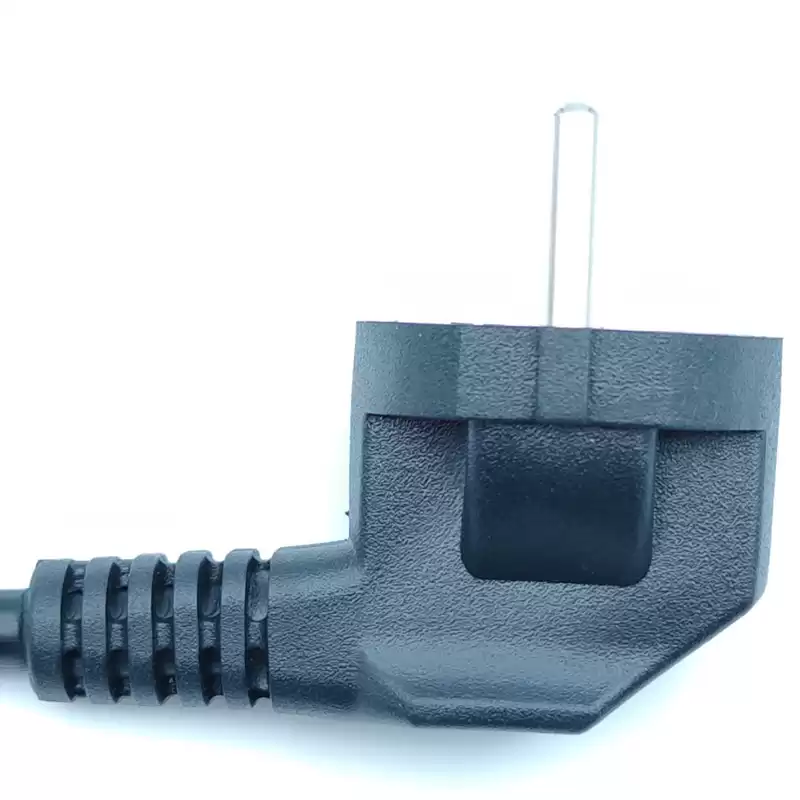

Plug type: Euro Schuko plug grounding
-
Standard: CEE7 standard sheet 7-7, DIN VDE 0620-2-1
-
Approvals: VDE
-
Electricity: 16A, 250V
-
Number of Poles and Wires: 3 poles 3 wires earthed
-

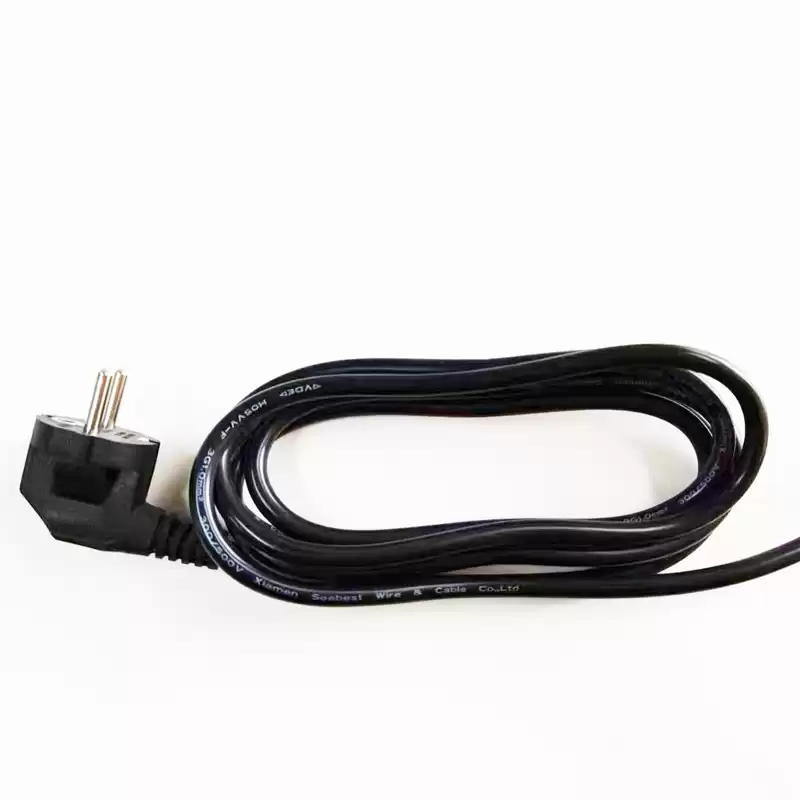

Cable length: 1.0m, 1.5m, 1.8m or custom length
-

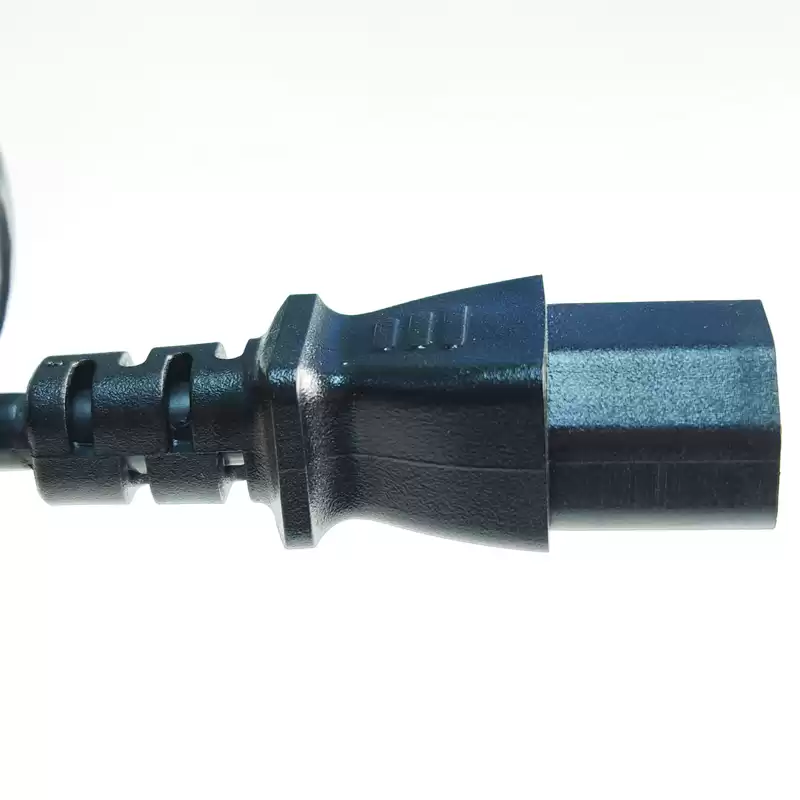

End: IEC C13
-
Color: Black is standard or custom color
-
Outer Mold Material: PVC, Rubber
-
Plug Insert Material: PBT, ABS
-
Blade Material: Nickel Coated Brass
-
Wire Sheath Material: PVC
-
Environmental Certifications: RoHS, REACH
PRODUCTS APPLICATION
The EU German type Euro plug with electrical
rates 16A, voltage 250V, according to the CEE7/7 (European plug), mainly used in Home appliance, equipment, power
tools and so on
PRODUCTS STRUCTURE

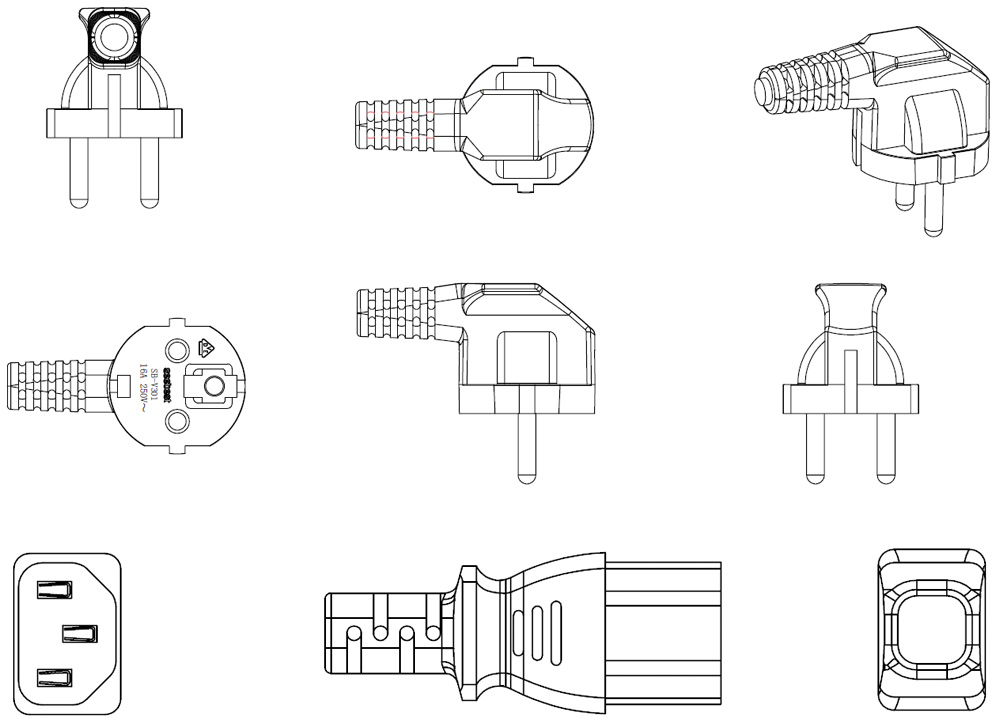

European VDE Power Cord Schuko Plug and IEC C13 Connector structure as below:
PRODUCTS SPECIFICATION
|
Approval:
|
VDE
|
OEM:
|
Yes
|
|
Current voltage:
|
250V
|
Overall diameter:
|
Criterion/OEM
|
|
Current rating:
|
16A
|
Outer Mold Material:
|
PVC
|
|
Number of Poles and Wires:
|
3 Pin (3 Poles, 3 Wires)
|
Blade Material:
|
Nickel Coated Brass
|
|
Cable End Termination:
|
C13
|
Contact Pin:
|
Nickel Coated Brass
|
|
Color:
|
Black is standard and custom color is available
|
Conductor:
|
Bare or Tinned Stranded Copper
|
|
Environment Protections:
|
ROHS, REACH
|
Packing:
|
Standard Carton
|
|
CABLE TYPE:
|
|
H03VV-F 3*0.75mm2
|
|
H05VV-F 3*0.75-1.0-1.5mm2
|
