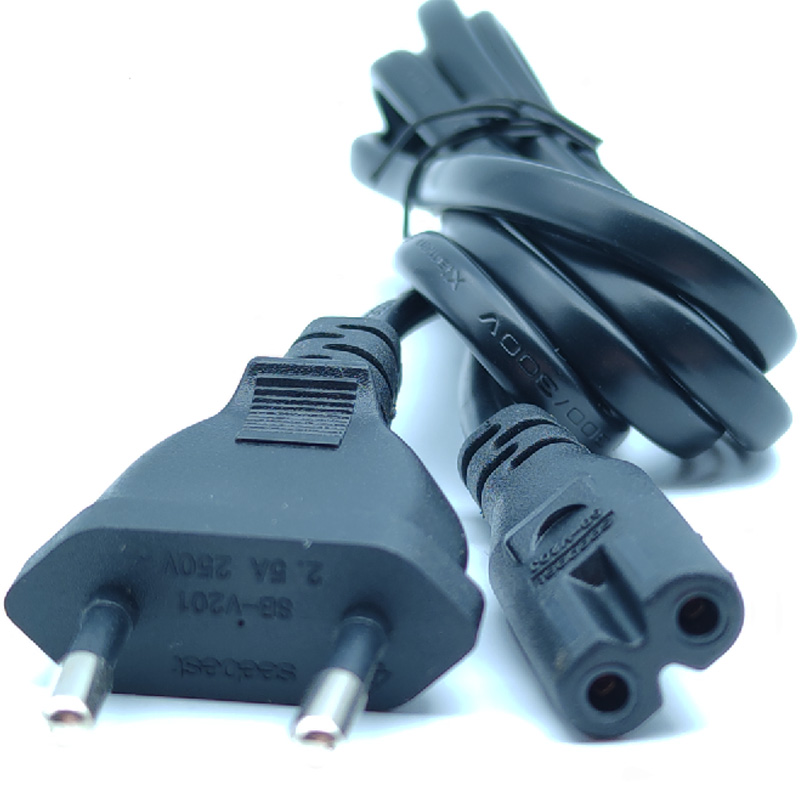

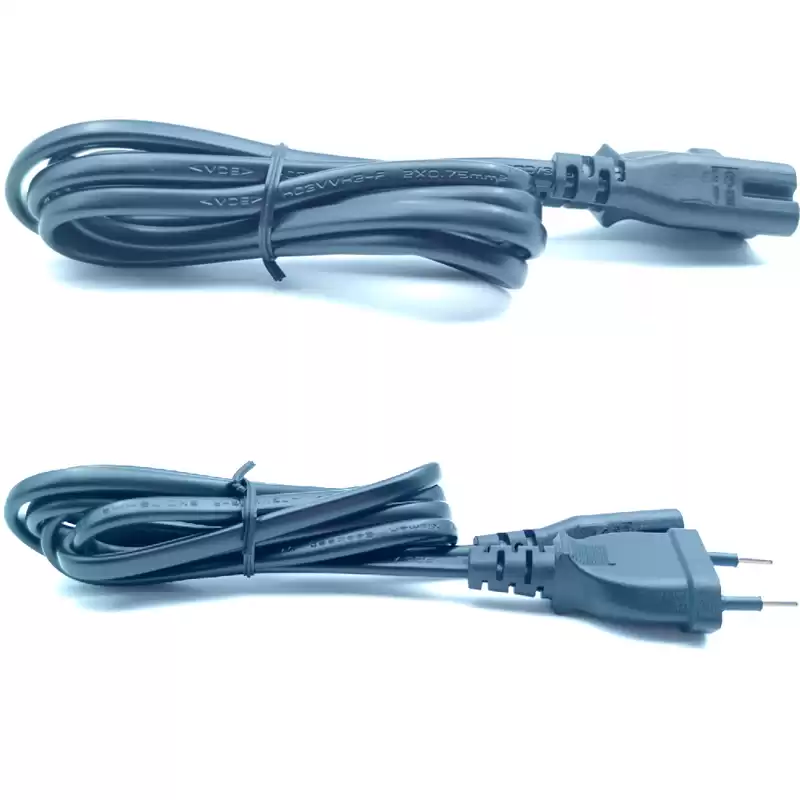

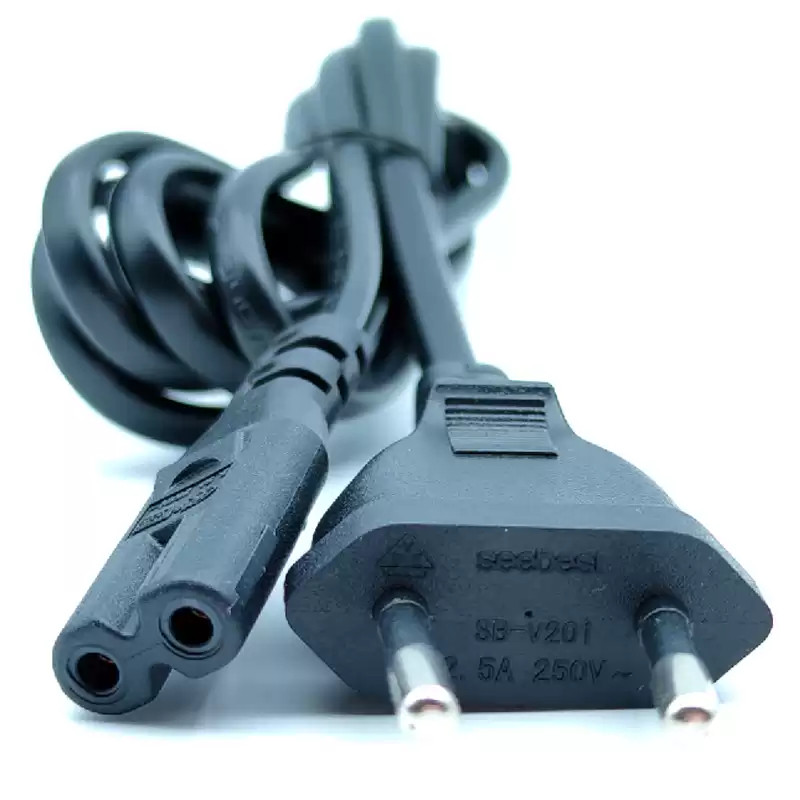

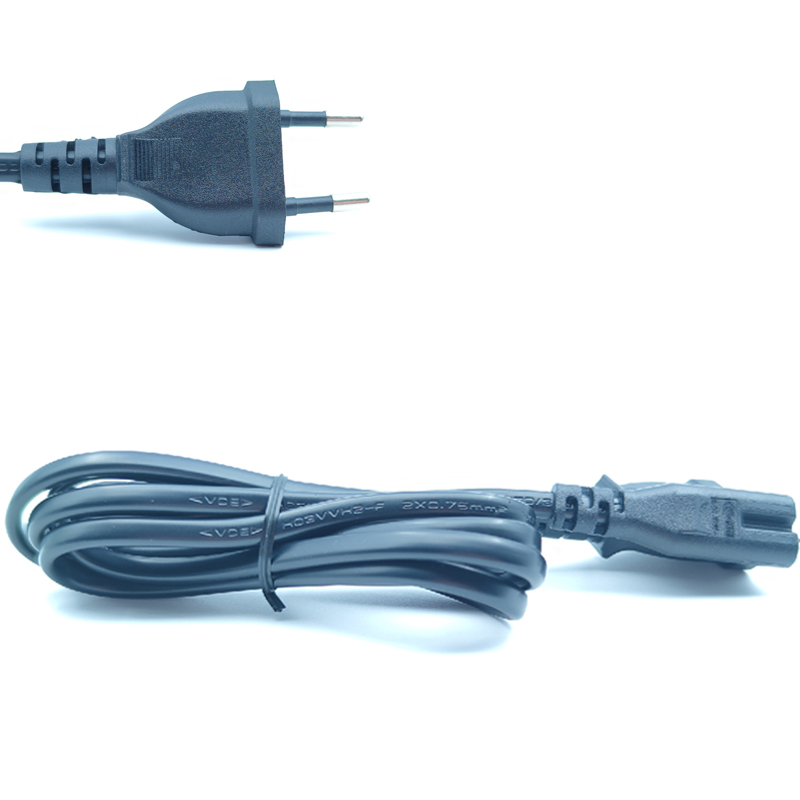

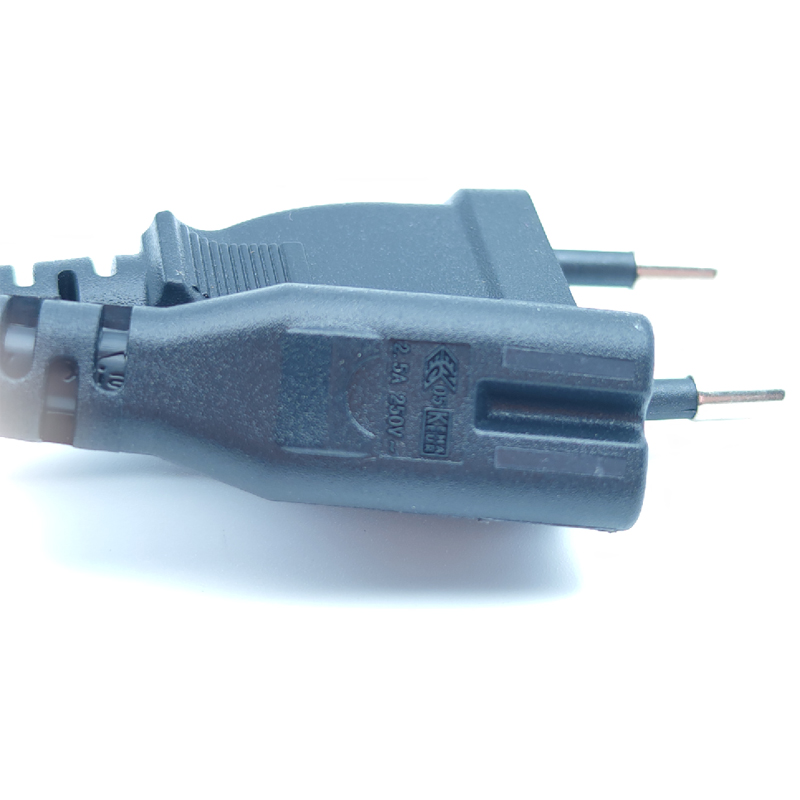

VDE AC Power Cord CEE 7/16 Europe Two Pins Plug IEC C7 Connector
PRODUCTS FEATURES
-

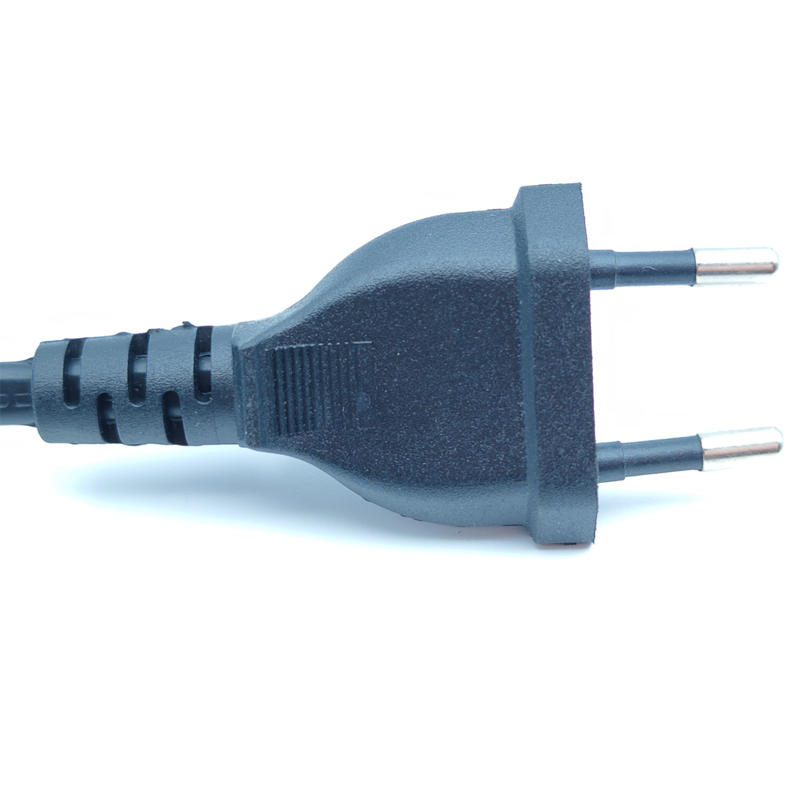

Plug type: CEE7/16 Euro Plug
-
Standard: CEE7/16, EN50075, DIN VDE 0620
-
Approvals: VDE
-
Electricity: 2.5A, 250V
-
Number of Poles and Wires: 2 Poles 2 Wires
-
Cable length: 1.0m, 1.5m, 1.8m or custom length
-

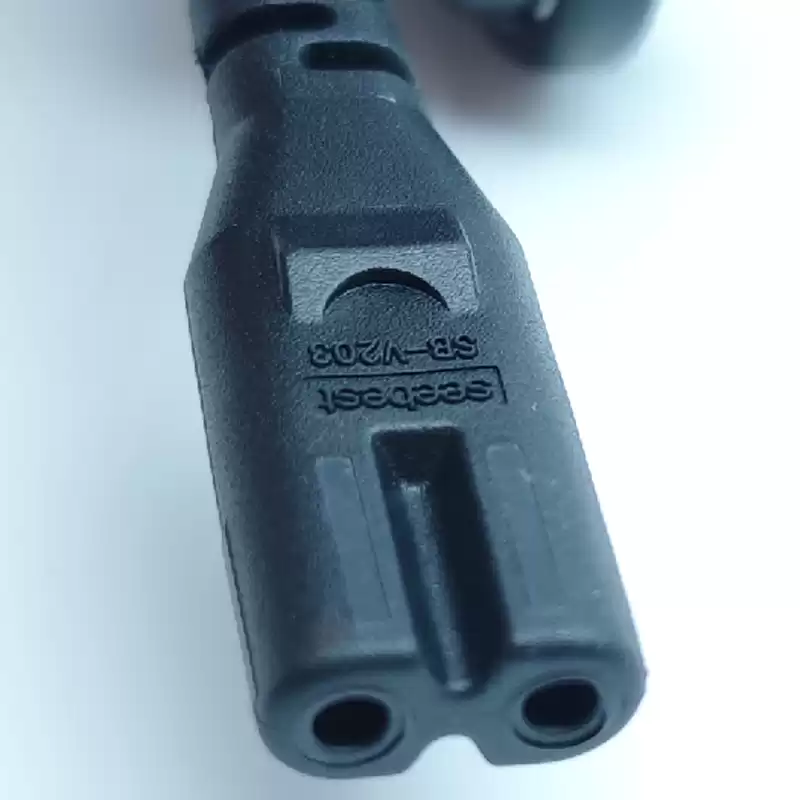

End: IEC 60320 C7
-
Color: Black is standard or custom color
-
Outer Mold Material: PVC, Rubber
-
Plug Insert Material: PBT, ABS
-
Blade Material: Nickel Coated Brass
-
Wire Sheath Material: PVC
-
Environmental Certifications: RoHS, REACH
PRODUCTS APPLICATION
The EU German type Euro plug with electrical rates 2.5A, voltage 220V, according to the CEE7/16 (European plug), Connector Standards IEC 60320 (320) C7 figure 8 connector, connected with a two-wire ungrounded plug rated at 2.5 Amp, 250 V defined by CEE 7/16. The AC power cord is mainly used in Air Conditioners, Fridge, Washing Machines, Rice
Cookers, Induction Cooker, Electric Fans, Electric Irons, Microwave Ovens,
Computers, Laptops, Lamps, Various chargers and other small
household appliances, electric tools and industrial use electrical equipment.
PRODUCTS STRUCTURE

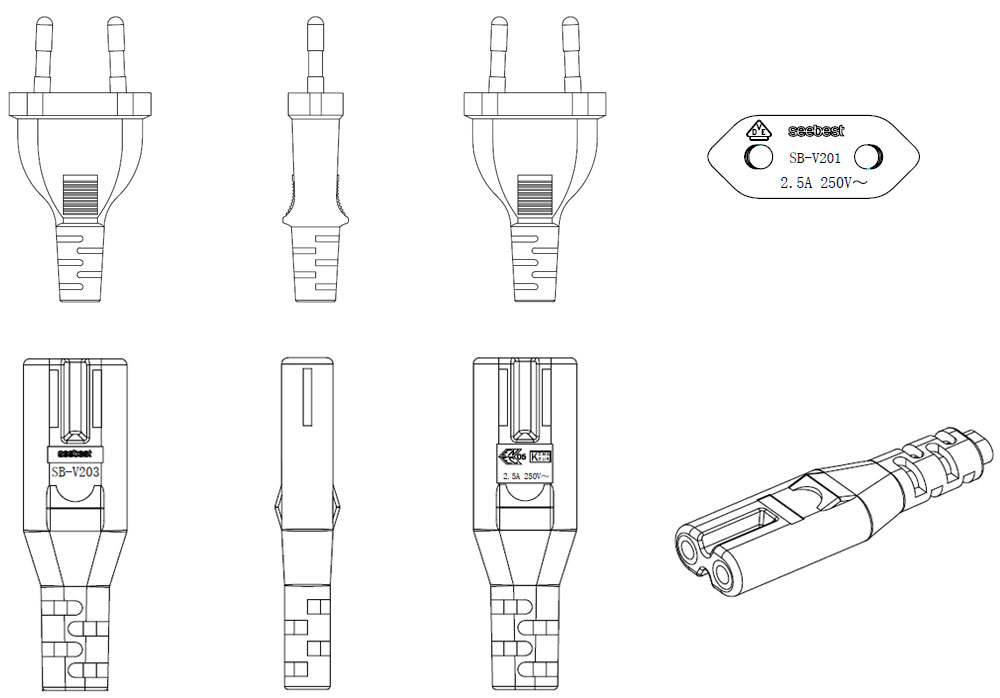

European VDE Power Cord 2 Pins Plug and IEC C7 Connector structure as below:
PRODUCTS SPECIFICATION
|
Approval:
|
VDE
|
OEM:
|
Yes
|
|
Current voltage:
|
250V
|
Overall diameter:
|
Criterion/OEM
|
|
Current rating:
|
2.5A
|
Outer Mold Material:
|
PVC
|
|
Number of Poles and Wires:
|
2 Poles, 2 Wires
|
Blade Material:
|
Nickel coated Brass
|
|
Cable End Termination:
|
C7
|
Contact Pin:
|
Nickel coated Brass
|
|
Color:
|
Black is standard and custom color is available
|
Conductor:
|
Bare or tinned stranded Copper
|
|
Environment Protections:
|
ROHS, REACH
|
Packing:
|
Standard Carton
|
|
CABLE TYPE:
|
|
H03VVH2-F 2*0.5mm2-0.75mm2
|
|
H05VVH2-F 2*0.75mm2
|
