European Style Corrugated Roof Sheet Roll Forming Machine

European Style Corrugated Panel Roll Forming Machine




      European Style Corrugated Panel Roll Forming Machine






                                                One machine for multiple profiles


1.Main features of European Style Corrugated Panel Roll Forming Machine


    The advantages of European Style Corrugated Panel Roll Forming Machine are as follows:

    1.With automatic stacker, Save labor and Save Time

    2.With scrap cutting device to cut balance material so that the machine can work for different material width

    3.Easy operation, low maintenance cost

    3.Popular in European market (like UK).



2.Detailed Images of European Style Corrugated Panel Roll Forming Machine


    Machine Parts

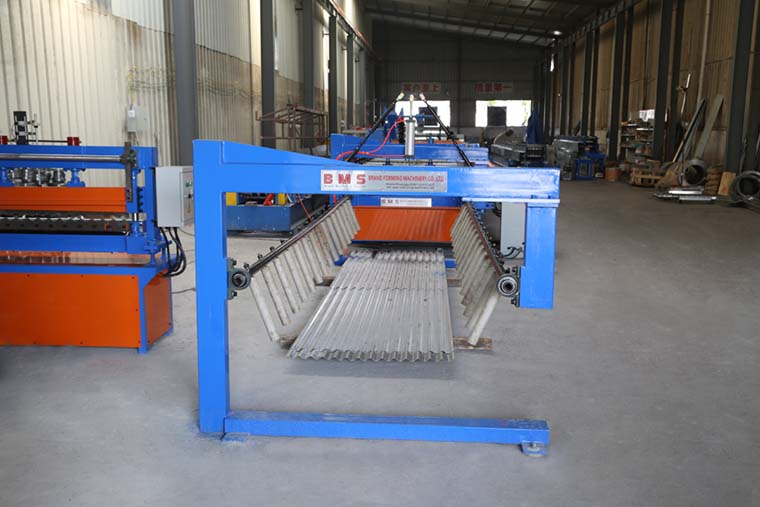

        1) European Style Corrugated Panel Roll Forming Machine Automatic Stacker

        Brand: BMS    Original: China

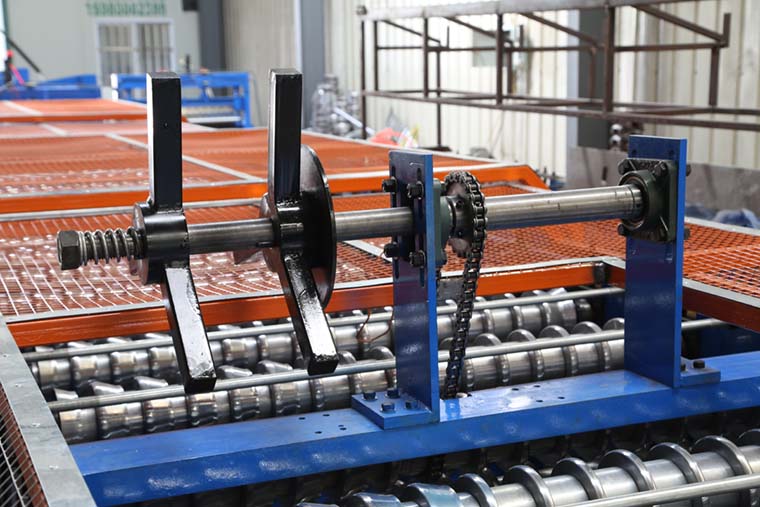

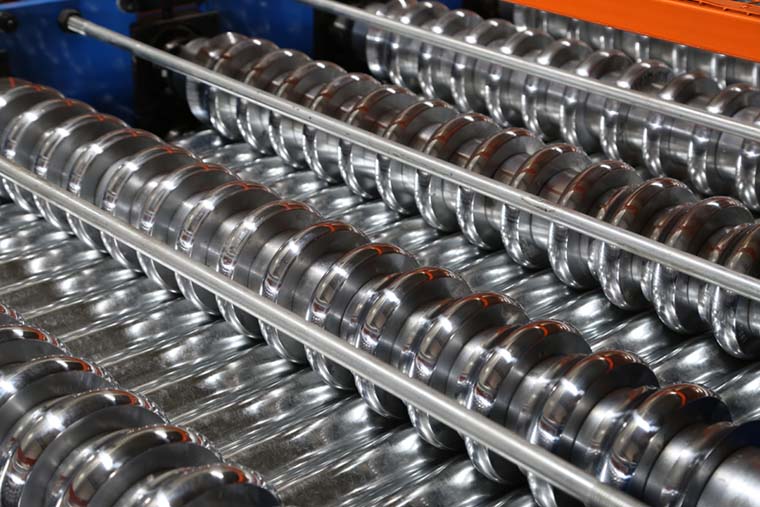

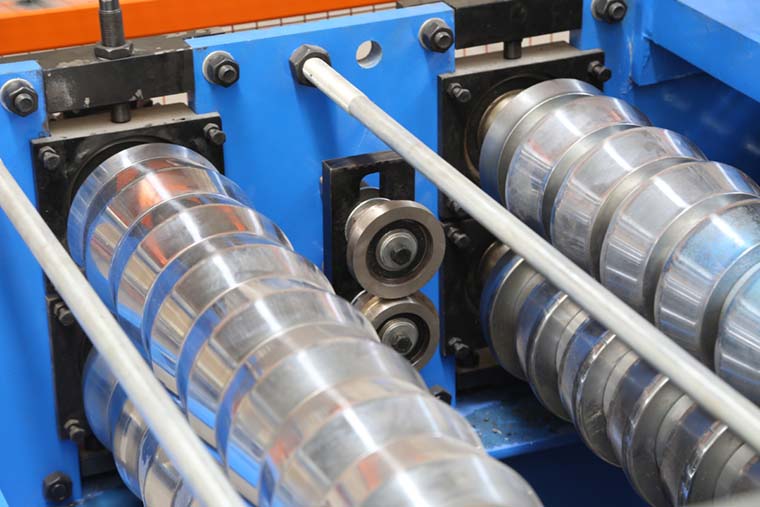

        2) European Style Corrugated Panel Roll Forming Machine Rollers

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        With Hard-Chrome Coating for long life.

        With feeding material guide,Body framemade from 350# H type steel by welding

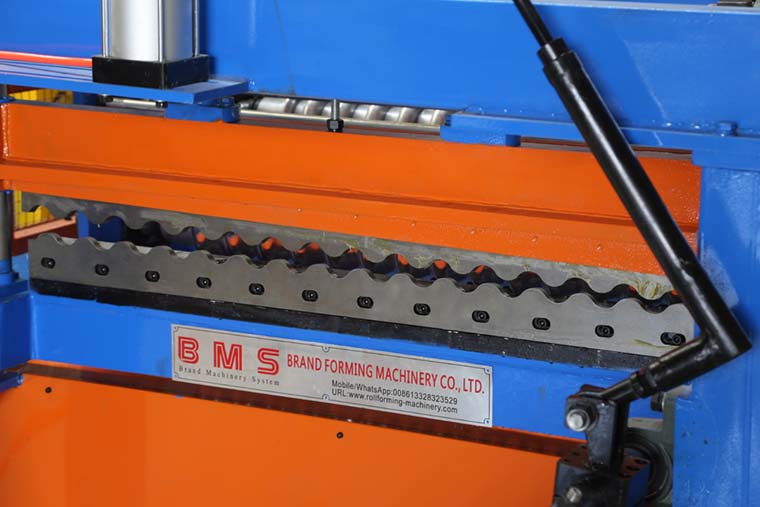

        3) European Style Corrugated Panel Roll Forming Machine Post Cutter

        Cutter frame made from high quality 20mm steel plate by welding

        Post cut, stop to cutting, use the same hydraulic motor drive

        Hydraulic motor: 3.7KW, Hydraulic pressure range: 0-12Mpa

        Cutting tool material: mold steel Cr12, Heat treatment






        4) European Style Corrugated Panel Roll Forming Machine Scrap Coiling Syste

        Avoid wasting material !

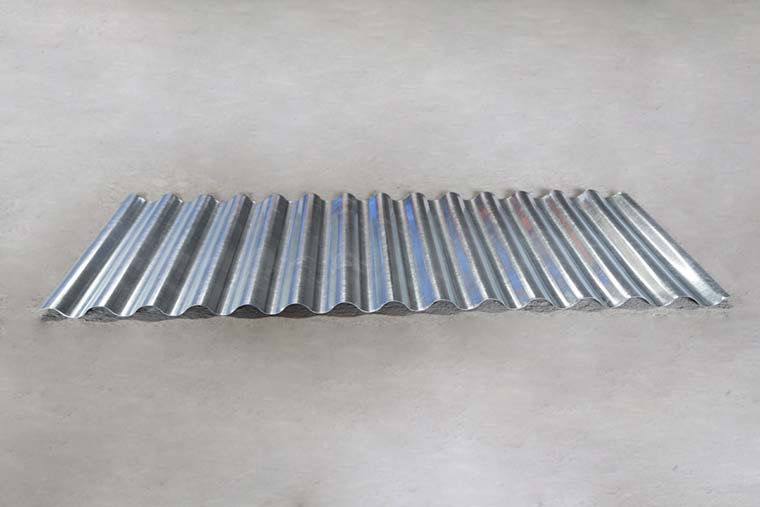

        5) European Style Corrugated Panel Roll Forming Machine Product Show

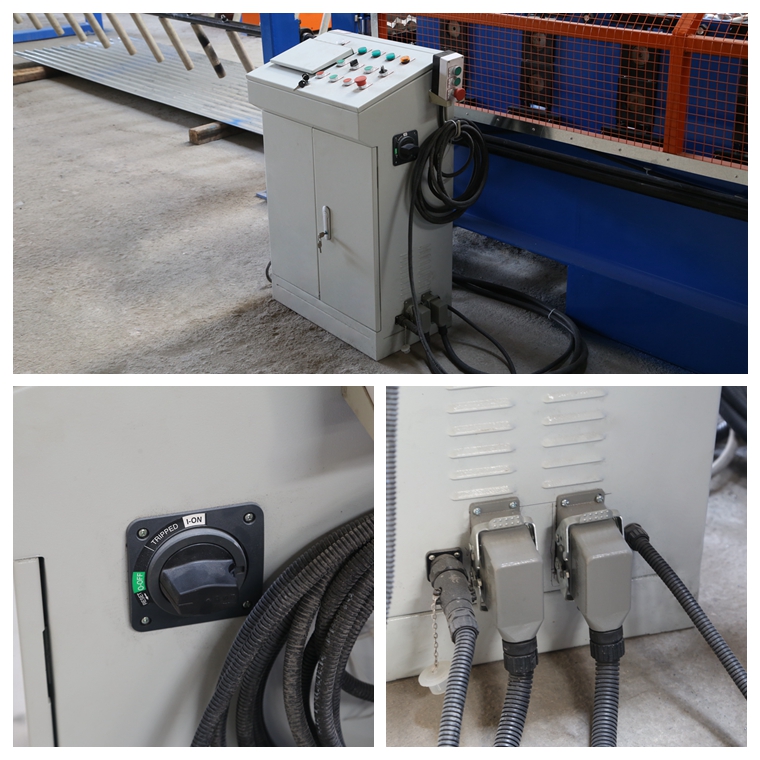

        6) European Style Corrugated Panel Roll Forming Machine PLC Control Cabinet

        WIth Aviation plug for easy operation

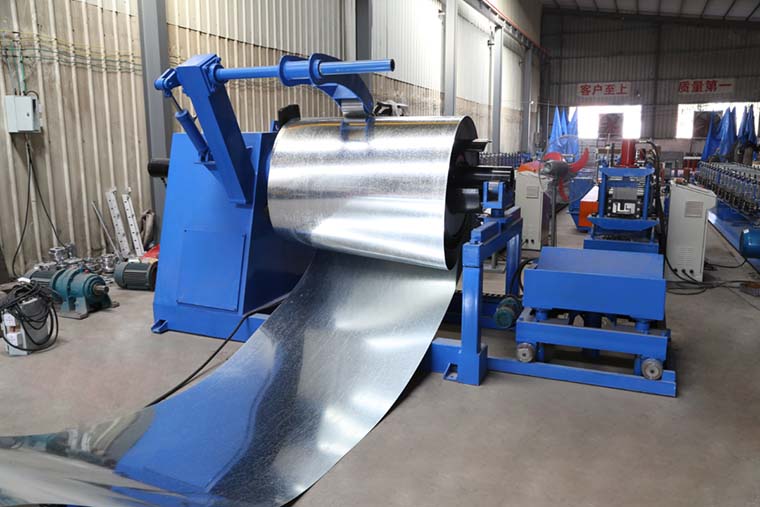

        7European Style Corrugated Panel Roll Forming Machine Decoiler

       Hydraulic Decoiler with coil car and clamp arm: one set

       Hydraulic control steel coil inner bore shrinkage and stop

       Max. feeding width: 1500mm, coil ID range 470mm±30mm

       Capacity: Max. 10 Tons




Other details of corrugated panel roll forming machine



Suitable for material with thickness 0.7-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined

Motor driving,Gear chain transmission, 19 rollers to form

Main motor=7.5KW , Frequency speed control. Forming speed approx.15-20m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Schneider Electric/Taiwan DELTA/SHILIN,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

User's manual in English



After-sale service of corrugated panel roll forming machine



1. The warranty of corrugated roof panel machine

  is 18 months after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export:to more than 50 countries and regions, including Taiwan, UK, France, Ireland, Greece, Australia,

    USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, UAE, Iran, Kuwait, Yemen, India, Pakistan,

    Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, Myanmar, Brunei, South Africa, Zimbabwe,

    Mozambique, Zambia, Congo, Cameroon, Sudan, Ethiopia, Nigeria, Guinea, Algeria, Libya and Egypt, Russia,etc.
