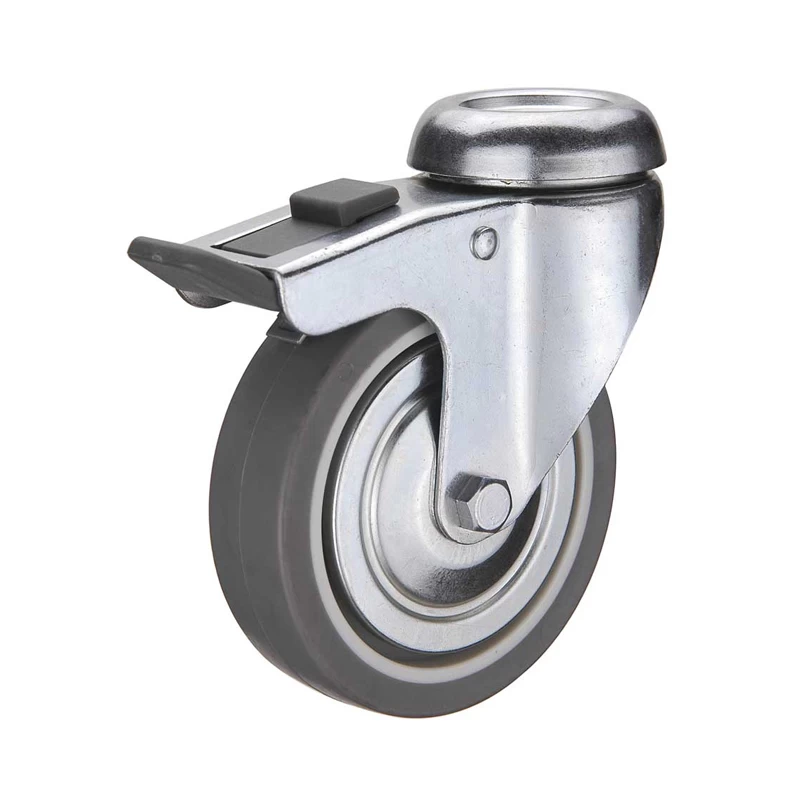

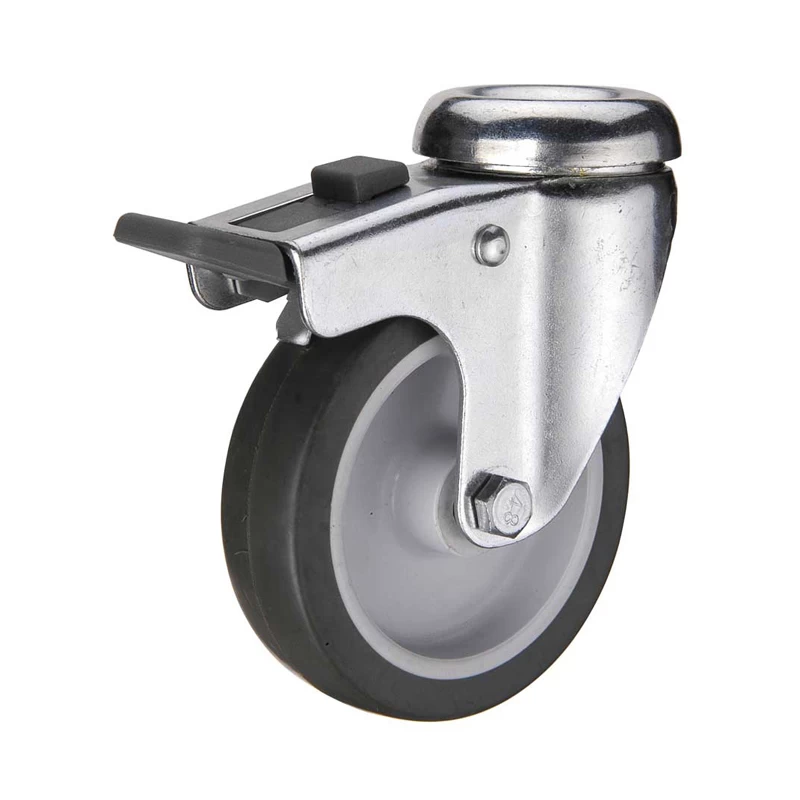

European type bolt hole double brake caster 80 mm 4 inch

Size: 2.5'' 3'' 4'' 5''
Load capacity: 50kg, 60kg, 70kg, 80kg







European type bolt hole double brake caster 80 mm 4 inch


Housing:
Made of pressed steel, zinc plated.

Double ballrace swivel head.


Wheel:
Material: Thermoplastic rubber
Hardness: 80±5 Shore A

Bearing type: Plain bearing

Temperature: -20°C~80°C


(mm)

Item No.

Wheel

Diameter

Overall

Height

Caster

Type

Top

 plate

Hole

Distance

Hole

Dia

Wheel

Material

Weight

Capacity

W36060TPR
60x22 89 Bolt hole double brake 60x60x2 45x45 6.3 TPR 50 KG
W36080TPR
80x22 108 Bolt hole double brake
60x60x2 45x45 6.3
TPR
60 KG
W36100TPR
100x27 134 Bolt hole double brake 76x70x2
60x50 8.3 TPR
70 KG
W36125TPR
125x27 158 Bolt hole double brake 76x70x2
60x50
8.3
TPR 80 KG

Feature of silent caster wheels:

  • Type available: Swivel / Fixed / Double brake / Bolt hole (with brake) / Threaded stem (with brake).
  • Silent Thermoplastic rubber material, widely used for indoor.


Other option of 8 caster brake:

Without thread guard

caster swivel brake lock
