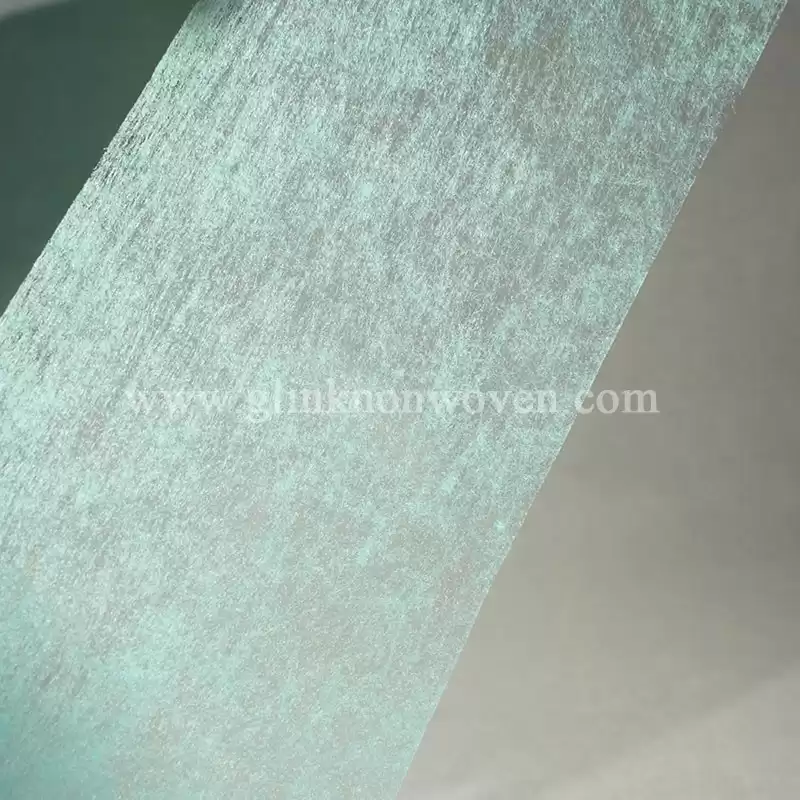

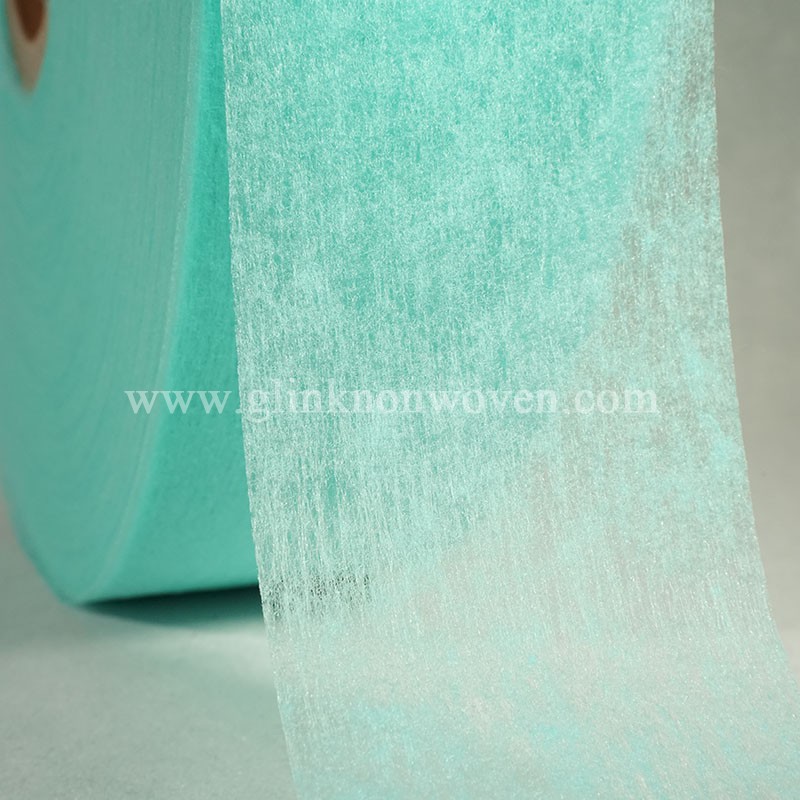

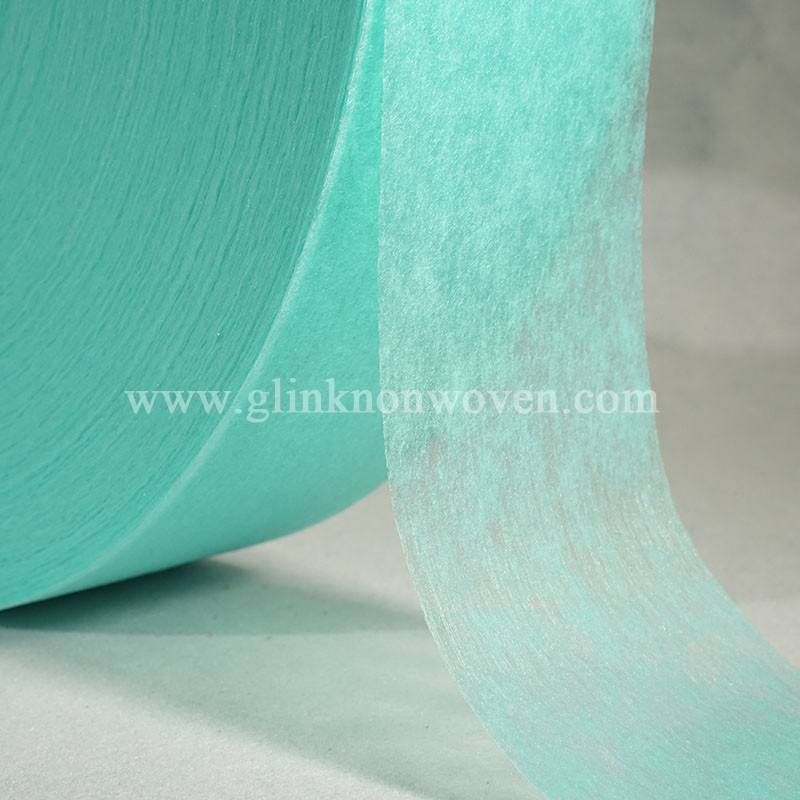

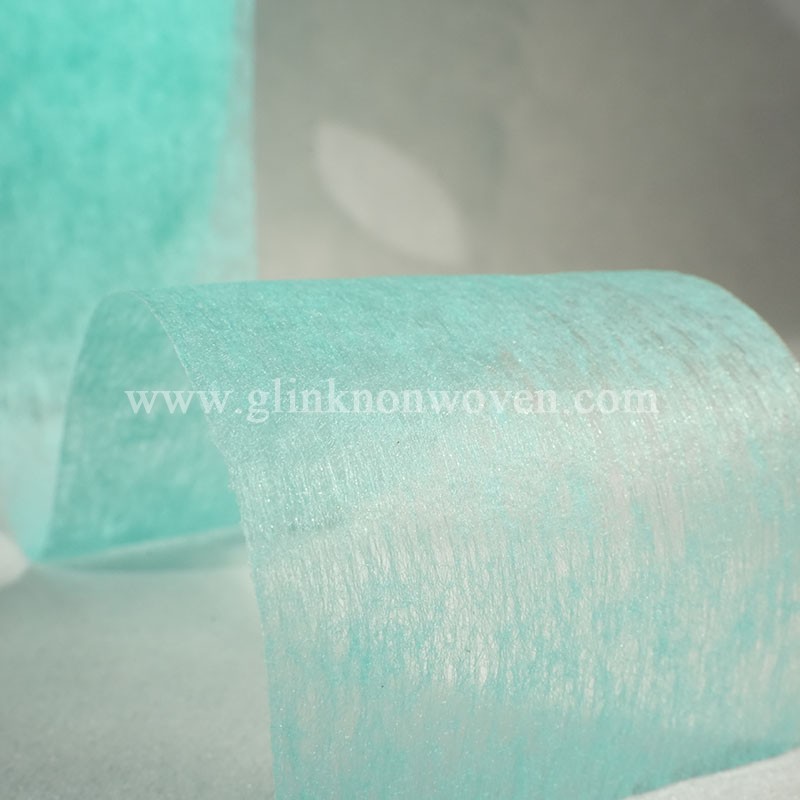

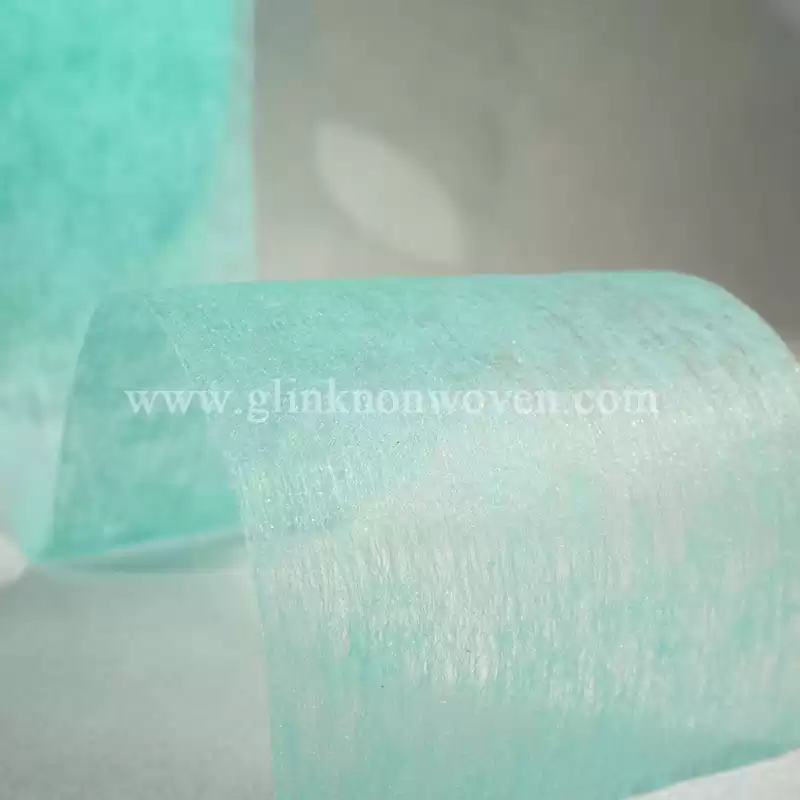

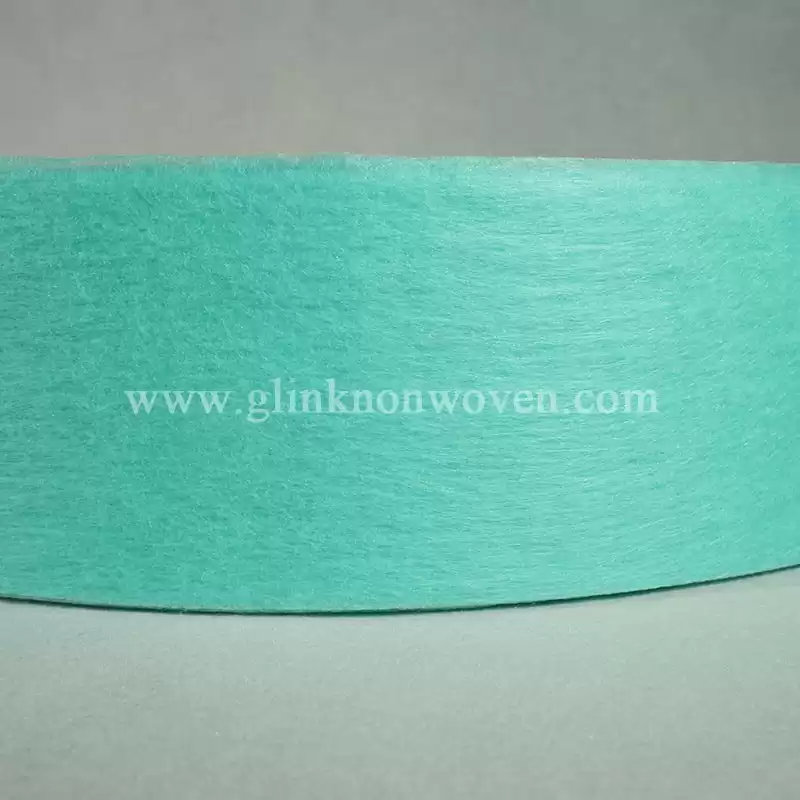

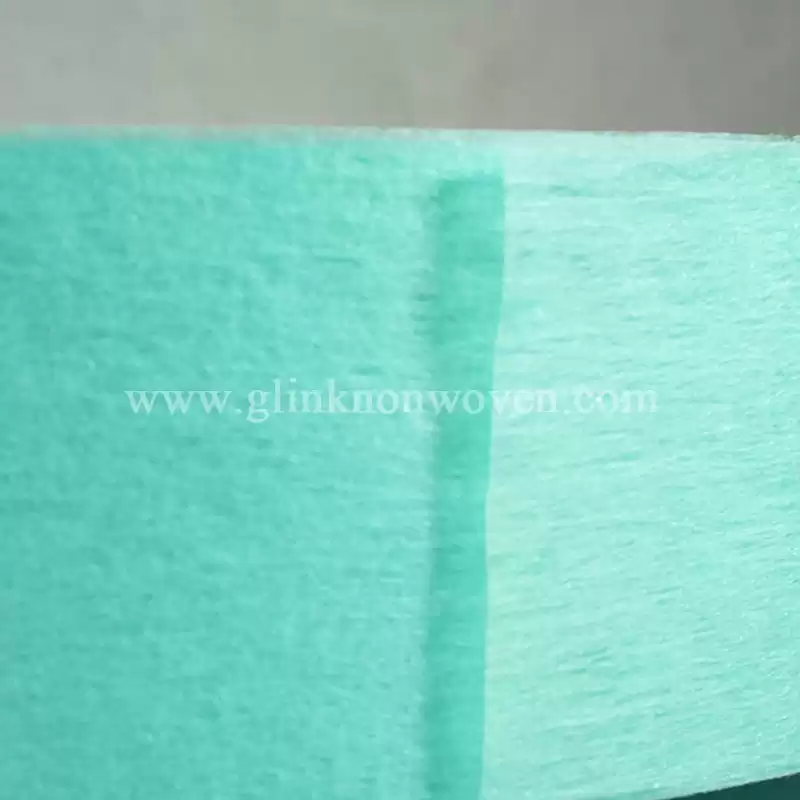

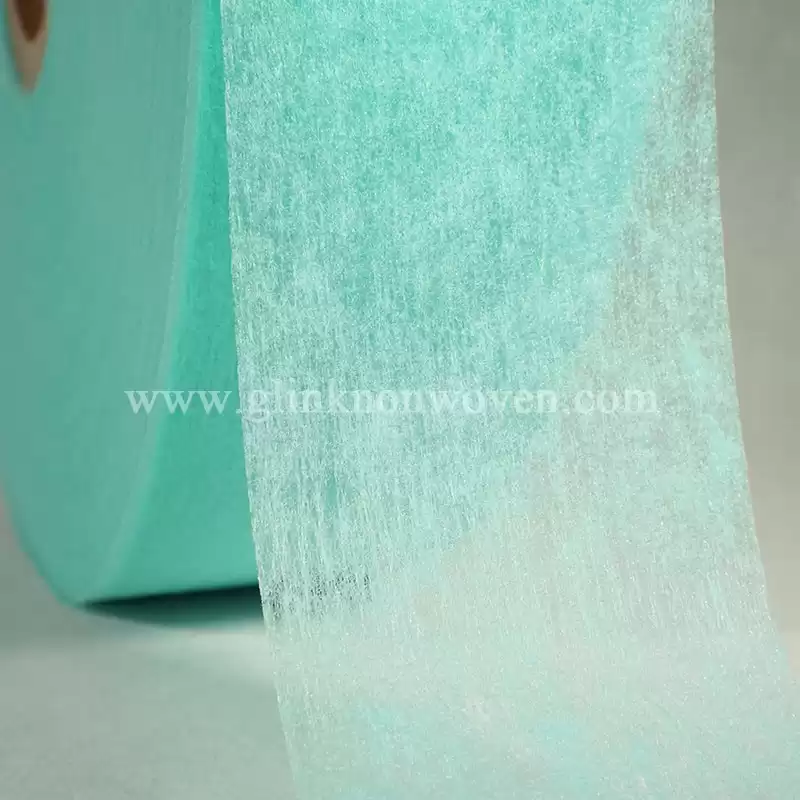

Product Description
The design principle of ADL flow guiding layer is that it can quickly guide urine from the surface to the absorption core, ensuring timely and uniform absorption of urine. This feature not only reduces the accumulation of urine in diapers and lowers the risk of urine leakage, but also allows diapers to remain dry for a longer period of time, thereby improving the comfort of the wearer.The application of ADL layer in adult diapers has brought many advantages. Firstly, it significantly improves the absorption efficiency of diapers, allowing urine to be quickly locked into the absorbent core, avoiding problems of urine leakage and side leakage. Secondly, the design of the hygiene materials ADL nonwoven helps reduce the moisture inside the diaper, allowing the wearer to stay dry and comfortable for a longer period of time.
Product Attributes
| Items |
Unit |
Requirement |
Result |
Test Method |
Judging |
|
| Basic weight |
gsm |
35±2 |
34.6 |
Electronic scale |
OK |
| Width |
mm |
80±2 |
80 |
Thickness gauge (micrometer) |
OK |
| 3D- Dimensional Thickness |
mm |
0.65±0.2 |
0.65 |
Meter ruler |
OK |
| Tensile strength |
MD |
N/5cm |
≥56.5 |
59.5 |
JIS L1085-2005 |
OK |
| CD |
≥12.8 |
13.6 |
JIS L1085-2005 |
OK |
| Breaking elongation |
MD |
% |
≥36.1 |
38.4 |
JIS L1085-2005 |
OK |
| CD |
≥67.9 |
69.8 |
JIS L1085-2005 |
OK |
| Fluid Penetrating Rate |
1st |
S |
≤2 |
1.11 |
|
OK |
| 2nd |
≤3 |
2. 37 |
|
OK |
| 3rd |
≤4 |
3. 28 |
|
OK |
| Softness |
/ |
Soft |
Soft |
|
OK |
| Fluorescence reaction |
/ |
No |
No |
|
OK |
| Material was suitable to use in hygiene product. |
|
|

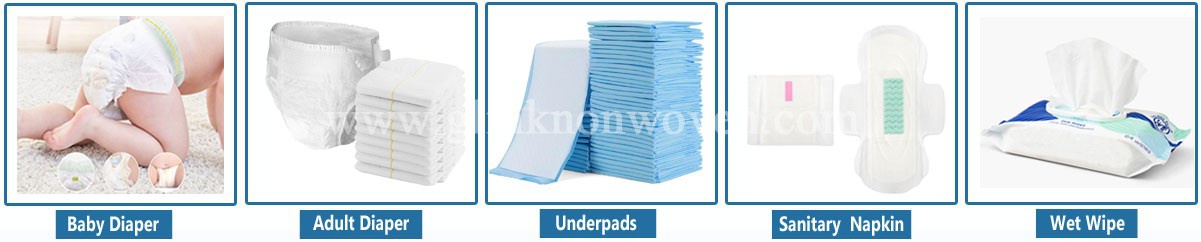

Product Application
The nonwoven ADL (Acquisition Distribution Layer) serves as a crucial component in the manufacture of diapers, suitable for producing adult diapers, adult incontinence products, disposable nursing pads, and sanitary napkins.

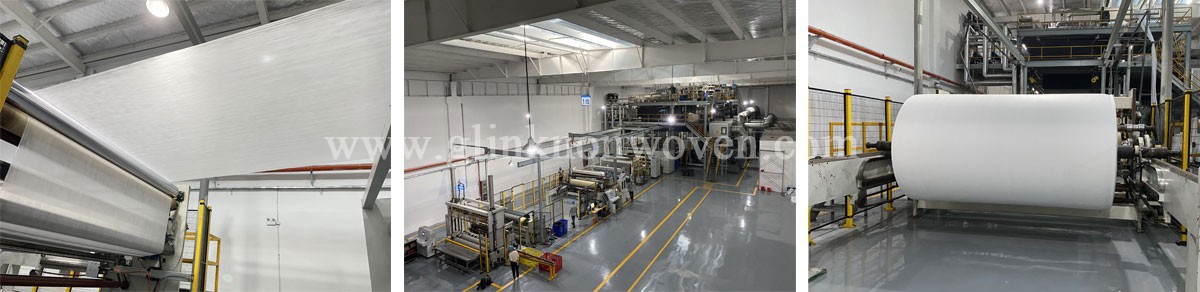

Factory Workshop
ADL nonwoven fabric is combing fibers into a mesh structure, ensuring that the fibers are arranged neatly and evenly distributed. By using the mesh laying machine to evenly lay the combed fiber mesh on the forming mesh, forming a certain thickness of fiber layer.

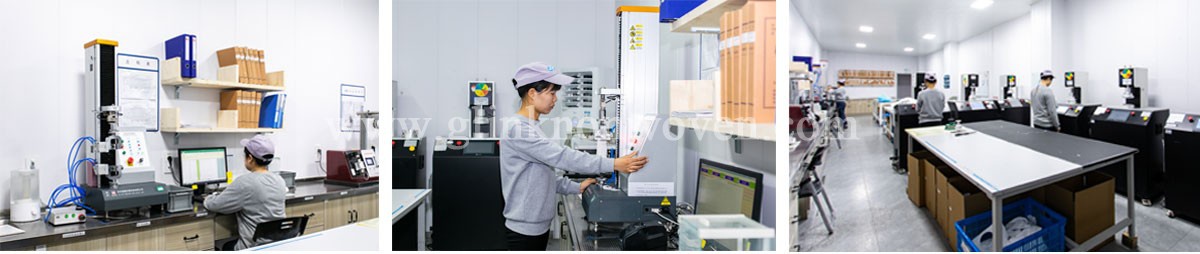

Lab & Testing
Our factory has a professional R&D technical team, industry-leading production capacity and technology. The raw materials are double-verified to control the quality from the source, reducing the trial and error costs of overseas customers and ensuring stable quality.

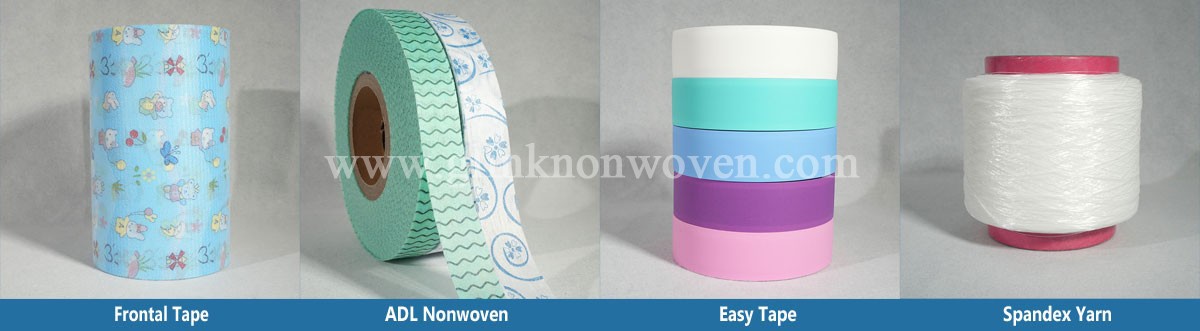

Related Products
Our products cover spunbond nonwoven, frontal tape, side tape, fluff pulp, sap, hot melt glue, spandex and other raw materials for baby diaper, sanitary napkin, adult diaper, underpads and pull up diapers. You can contact us for more details.

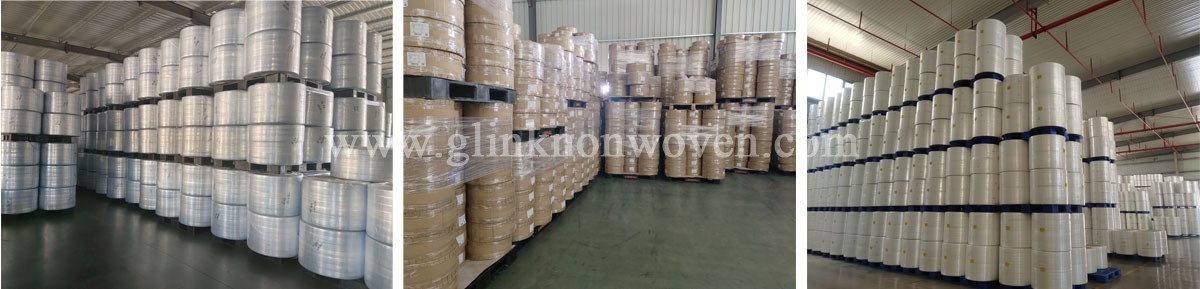

Warehouse
We have a modern warehouse of over 10,000 square meters, providing customers with “one station” services, which can mix load different kinds of raw materials, which can help our customers to reduce cost.

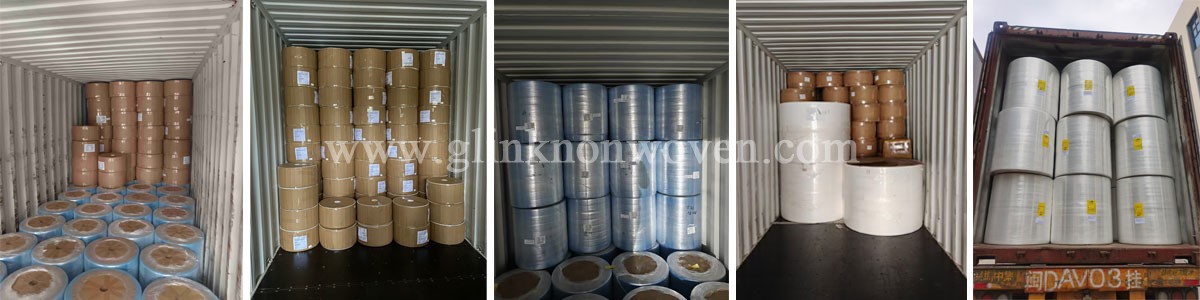

Packing & Shipment
Renowned for our integrity within the industry, formidable capabilities, and top - notch product quality, we have successfully exported our products to regions including Southeast Asia, Africa, and South America. Backed by a professional and proficient service team and a firm dedication to honesty, we are certain that we can continuously provide value to our customers and establish successful partnerships, thus ensuring a prosperous future.
Our Service
- Conduct an in - depth cost analysis for all raw materials used in finished products and devise a cost - cutting strategy.
- Present an optimized procurement service that covers all raw materials for hygiene products.
- Supply free safety stock in large - scale warehouses and integrate multiple materials without extra charges.
- Provide a detailed set of process reports along with photographic proof for every order.
- Issue a monthly analytical report on trends in the Chinese raw material market.
- Provide technical support for equipment - related needs.
- Offer customized solutions to meet raw material processing requirements.
- Design and customize exclusive raw materials to satisfy specific demands.
