Product Item: Extralite Cyber SP hub + Sapim CX-Ray spoke custom road carbon wheels
Rim:
Carbonal rim brake 700c road bike carbon rims tubular & clincher tubeless. Aerodynamics, lightweight, stiff and durable.
5 years warranty.
*Rim brake surface available: 3k twill brake track (recommended
) and basalt brake track.

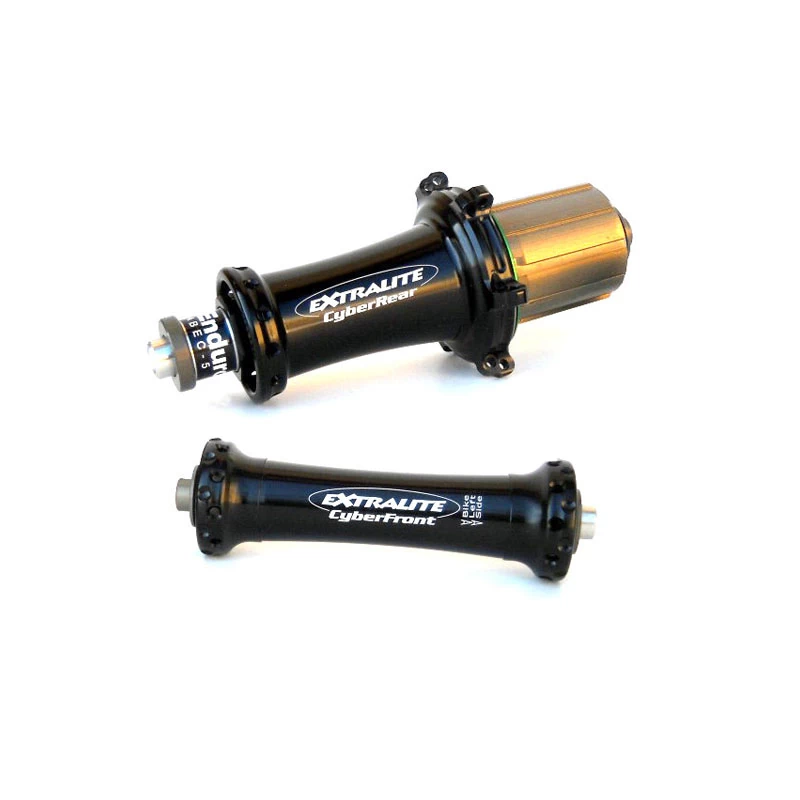

Hub:
Extralite Cyber hub, straight pull;
Size-axle: Front - 100x9mm, Rear - 130x10mm;
Cassette body: Shimano Road 11S / Campy 11S;
Brake system: non disc, rim brake;
Hole: Front 20, Rear 24;
Color: black.
Extralite
hubs are absolute performance, sturdy, precise and incredibly light,
they are some of the lightest in the industry and should be considered
if you are looking to build that special ultra-light, limited use,
race-event bicycle wheels.
Spoke:
Sapim CX-Ray aero bladed spokes, straight pull, black.
Nipple:
Sapim alloy nipples, black or red.
Lacing:
Front wheel - radial;
Rear wheel - non drive side radial, drive side 2 cross.
Weight:
Hub: 184g/set;
Spokes + nipples: 200g;
Weight without rims: 384g.
Rim model vs Complete wheel weight:
Model
|
Rim type
|
Rim weight / pc
|
Complete wheel weight (±5%) / set
|
Max weight limit
|
RT20W
|
700c tubular 20x23mm
|
250g
|
884g
|
85kgs
|
RT30S
|
700c tubular 30x25mm
|
310g
|
1004g
|
115kgs
|
RT38S
|
700c tubular 38x25mm
|
360g
|
1104g
|
120kgs
|
RT38D
|
700c tubular 38x25mm- asymmetric
|
360g
|
1104g
|
120kgs
|
RT50S
|
700c tubular 50x25mm
|
410g
|
1204g
|
125kgs
|
RT50D
|
700c tubular 50x25mm- asymmetric
|
410g
|
1204g
|
125kgs
|
RT60S
|
700c tubular 60x25mm
|
470g
|
1324g
|
130kgs
|
RT88S
|
700c tubular 88x25mm
|
530g
|
1444g
|
135kgs
|
RX30SH
|
700c clincher 30x25mm
|
430g
|
1244g
|
115kgs
|
RX38SH
|
700c clincher 38x25mm
|
470g
|
1324g
|
120kgs
|
RX38DH
|
700c clincher 38x25mm - asymmetric
|
470g
|
1324g
|
120kgs
|
RX45SH
|
700c clincher 45x25mm
|
480g
|
1344g
|
125kgs
|
RX50SH
|
700c clincher 50x25mm
|
500g
|
1384g
|
125kgs
|
RX50DH
|
700c clincher 50x25mm - asymmetric
|
500g
|
1384g
|
125kgs
|
RX60SH
|
700c clincher 60x25mm
|
570g
|
1524g
|
130kgs
|
RX88SH
|
700c clincher 88x25mm
|
720g
|
1824g
|
135kgs
|
RX38L
|
700c clincher 38x28mm
|
480g
|
1344g
|
120kgs
|
RX50L
|
700c clincher 50x28mm
|
510g
|
1404g
|
125kgs
|
* Complete wheel weights are subject to a ±5% variance.
* Each
wheelset will ship with: spare spokes, nipples; pair of quick-release
skewers; carbon-specific brake pads; freehub spacer for 10 speed
cassettes.
* All clincher rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
Choose your favorite road carbon rim model, leave a message below with the rim model number (such as RT30S) to get a best quote for your next high end carbon road bicycle wheels!
