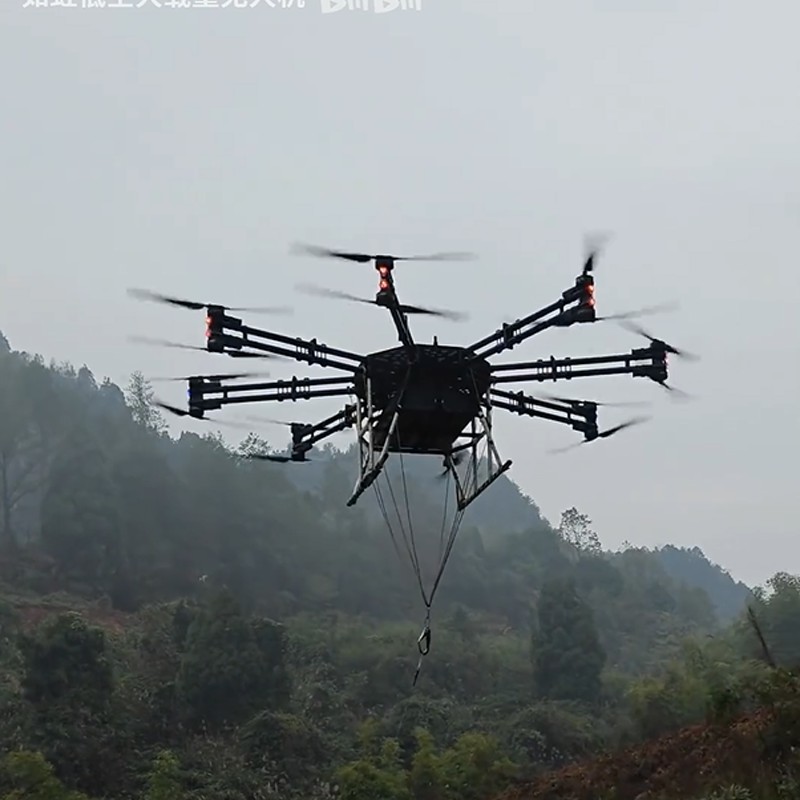

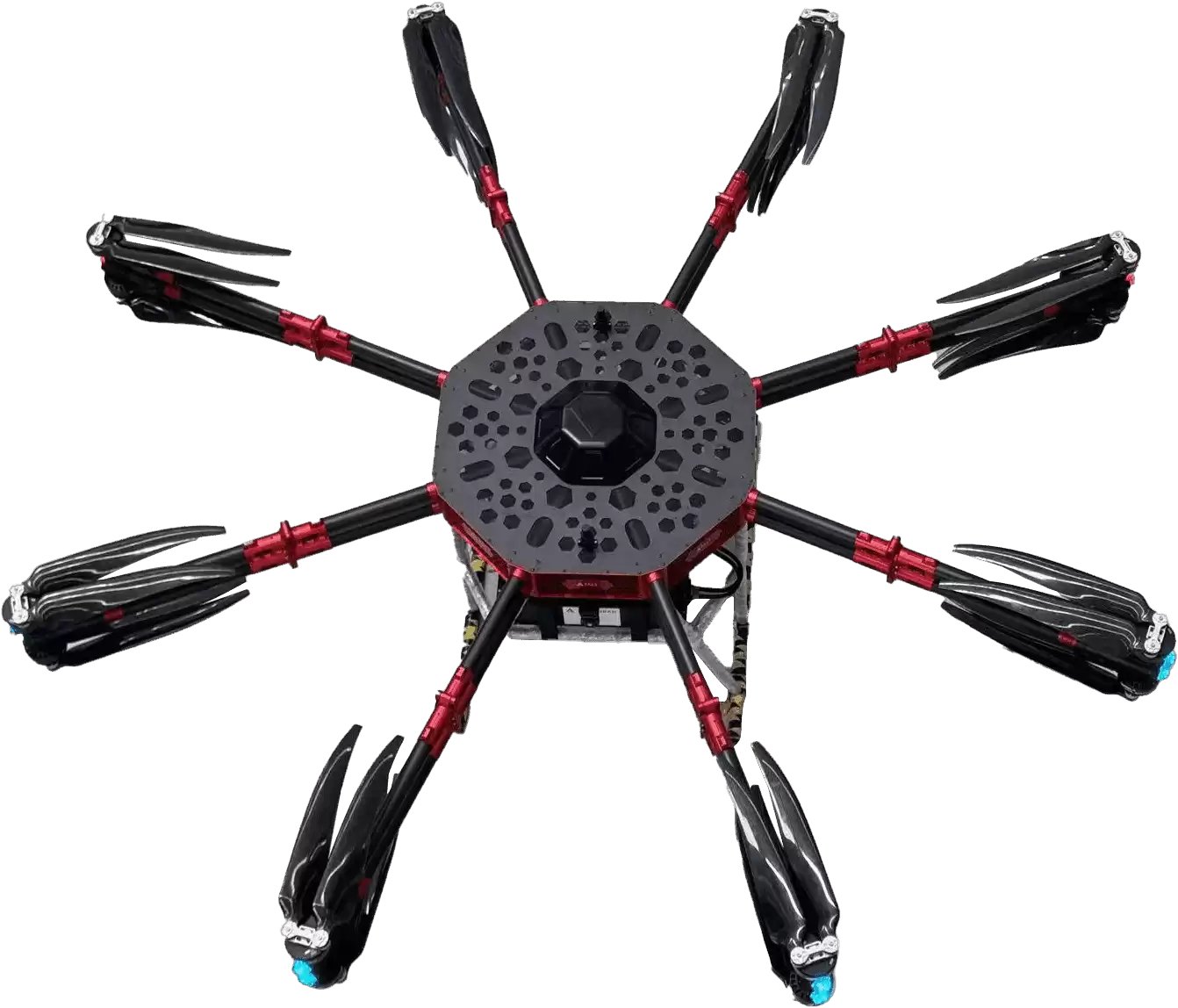

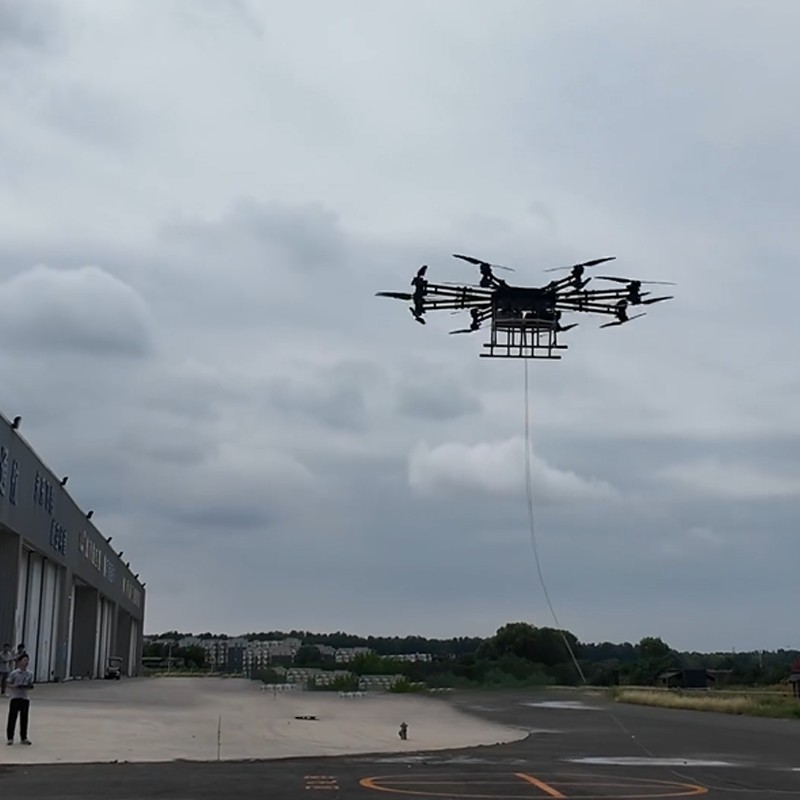

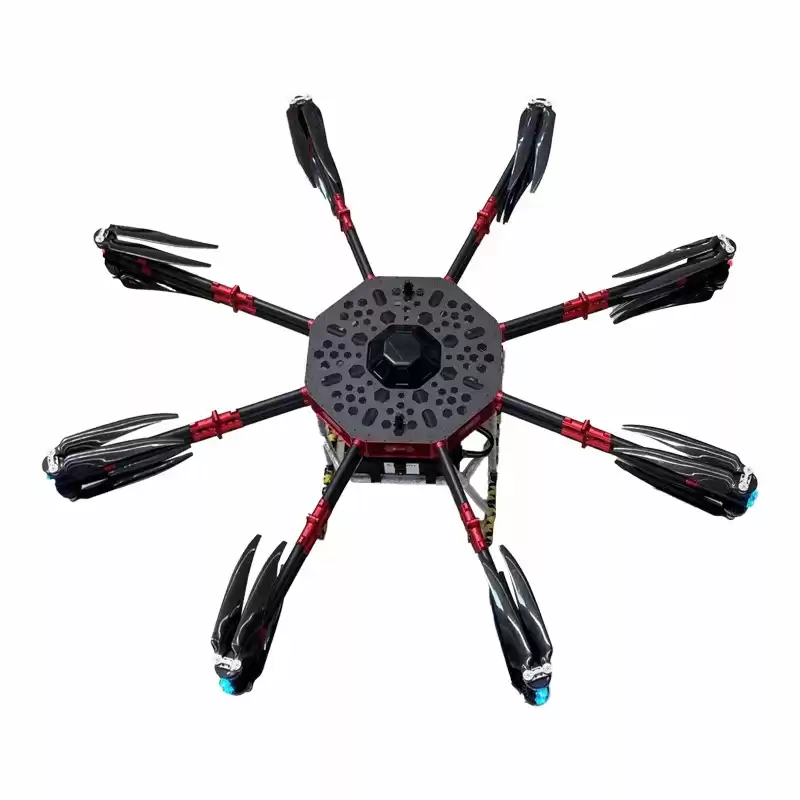

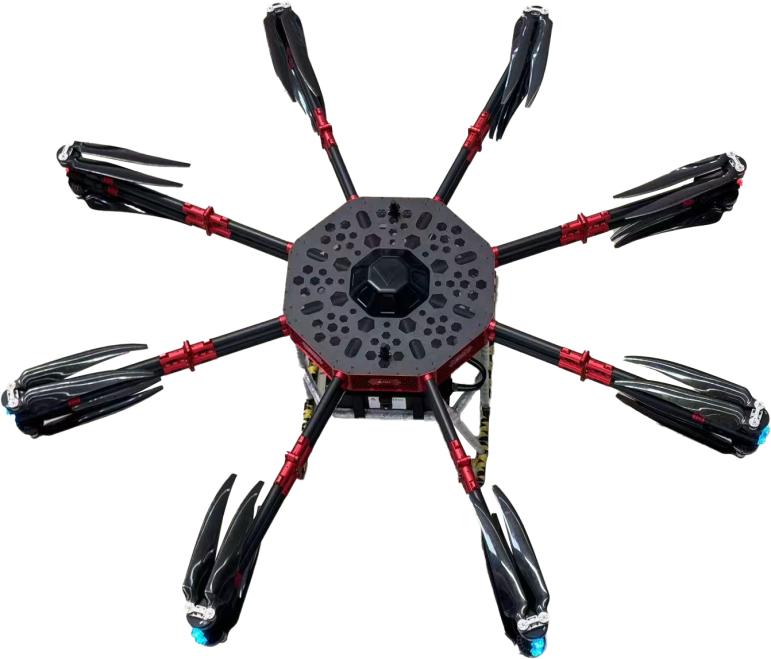

Extreme-Altitude Heavy-Payload Multi-Rotor Cargo Drone

         The YS-03 transport drone is specially designed for high-altitude transportation tasks and features excellent environmental adaptability and load capacity. It adopts a multi-axis and multi-rotor structure, with a lightweight and sturdy fuselage, and can maintain stable flight at an altitude of over 2,000 meters. The power system is optimized for high-altitude and low-pressure conditions to ensure stable operation even under load. This drone has strong wind resistance and can complete transportation tasks under complex weather conditions. The flight performance meets the transportation requirements of medium and short distances and is suitable for special terrains such as mountainous areas and plateaus. This model supports rapid takeoff and landing as well as flexible maneuverability, and is suitable for scenarios such as material transportation and emergency delivery. The large-capacity battery and efficient charging design enhance operational efficiency and are a practical solution for transportation tasks in high-altitude areas.







          Revolutionize highland logistics with our Arctic-Temperature Cargo Drone, delivering 190kg Payload capacity at 6000m Altitude. Engineered for Level 6 Wind-Resistant operations, this Multi-Rotor Heavy-Lift system enables Emergency Supply missions in mountains and plateaus—explore capabilities.



Product parameters

YS-03

Expanded size

3860*3860*1160mm

Model

8-axis 16-rotor

Fuselage weight

190kg

Maximum takeoff weight

470kg

Maximum net tensile force (sea level)

280kg

Maximum safe load capacity

190kg

Battery weight

≤78Kg

Battery capacity

≥16°

Charging ambient temperature

40℃

Idle hovering duration

≥40min

Rated battery life

≥12min

Wind resistance grade

≥Level 6

Maximum horizontal speed

≥25m/s

Maximum lifting speed

±8m/S

Maximum operating altitude

≥6000m

Working temperature

-20℃~55℃

The above parameters are for reference only. The detailed product parameters are subject to the actual delivery.
