Description

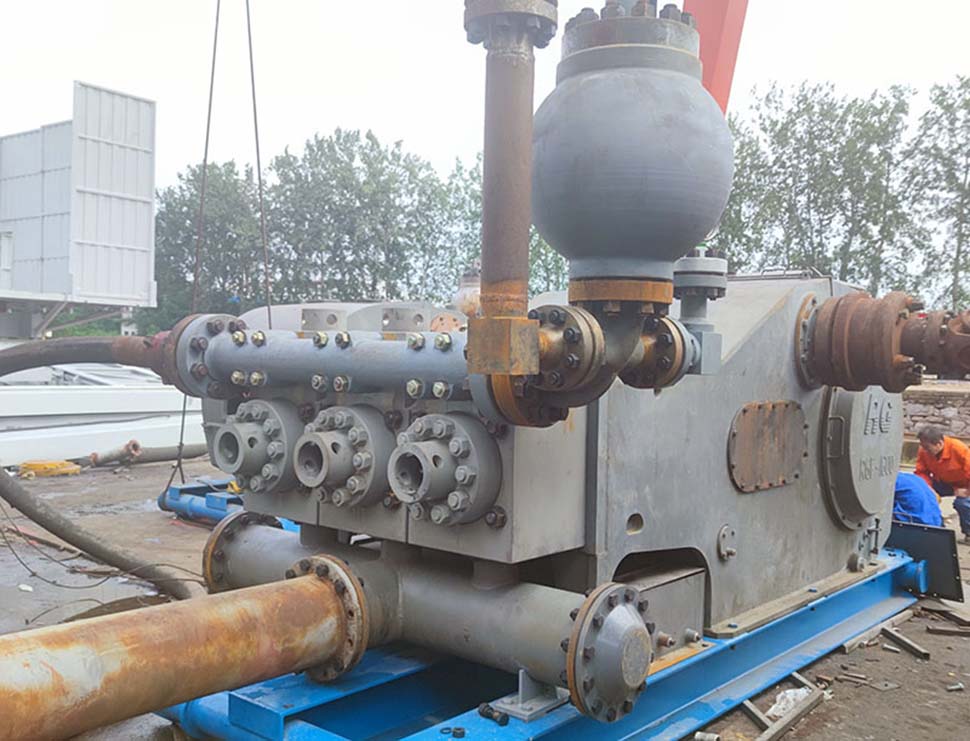

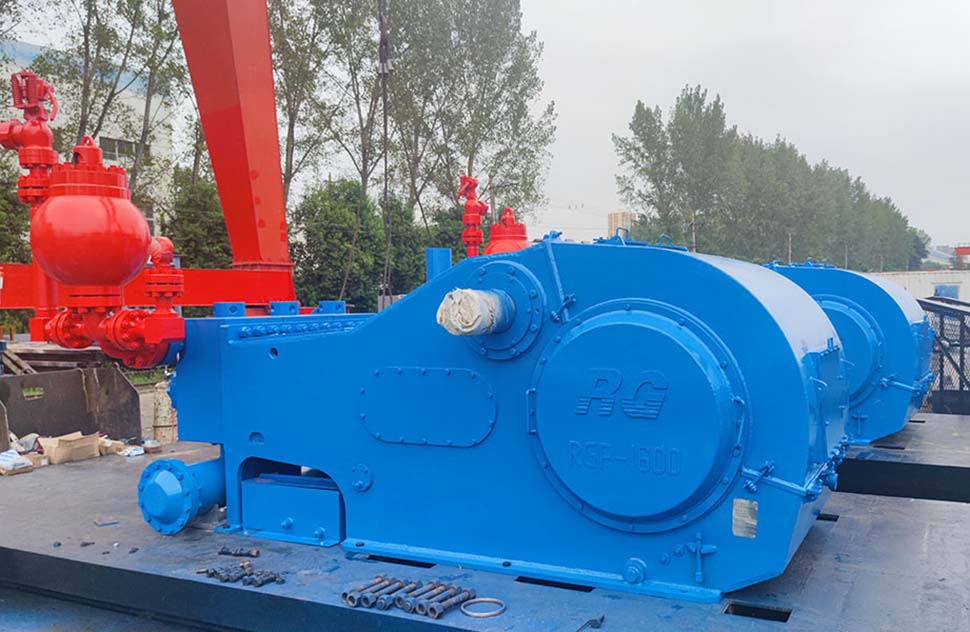

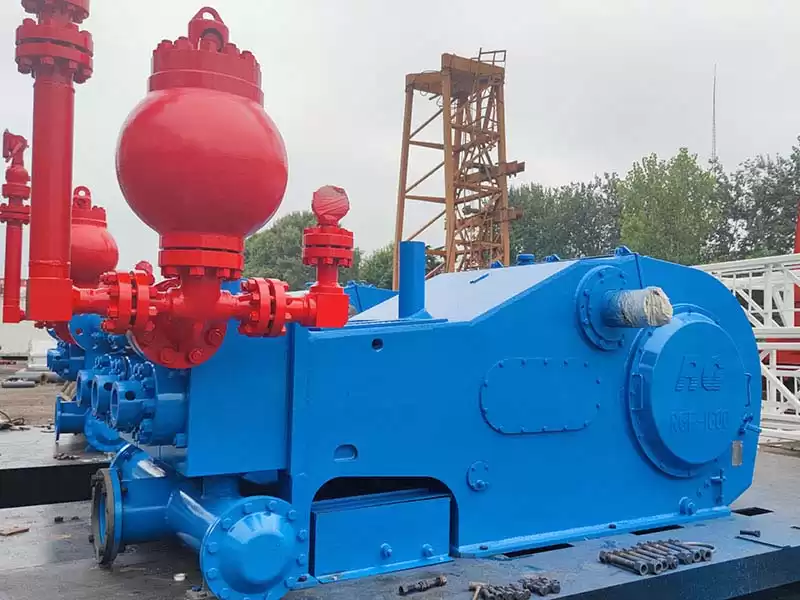

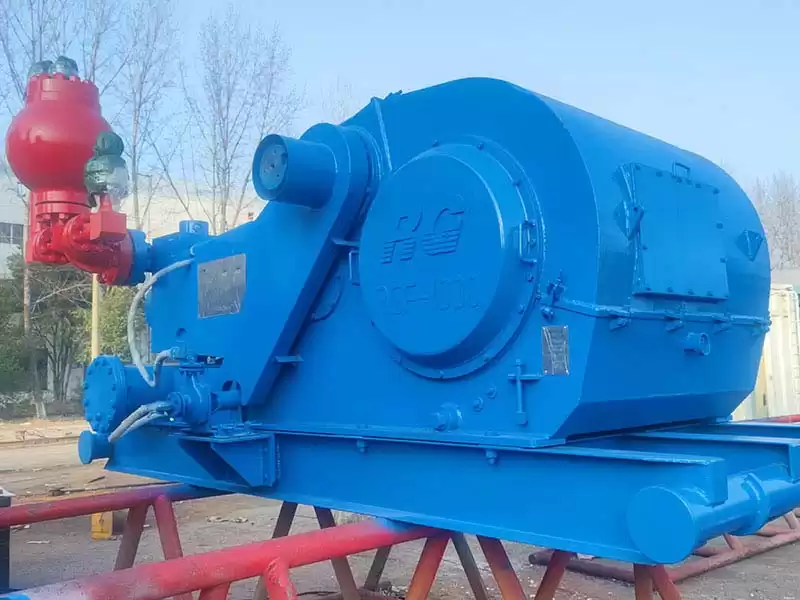

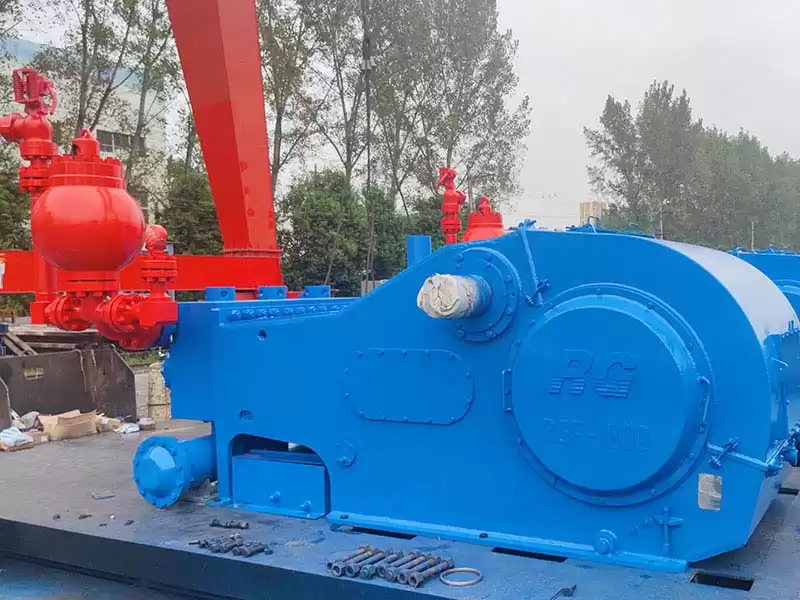

The F series mud pump is a popular type of reciprocating piston pump commonly used in the oil and gas industry and other drilling applications. Here are some of the key features of the F series mud pump:
1. High Pressure and Flow Rate: F series mud pumps are designed to deliver high pressure and flow rates, making them suitable for demanding drilling operations, including deep drilling projects.
2. Triplex Design: The F series mud pump typically follows a triplex design, which means it has three pistons that work in unison to create a smooth and continuous flow of drilling mud.
3. Robust Construction: These mud pumps are built with heavy-duty materials, ensuring durability and reliability even under harsh drilling conditions.
4. Versatility: F series mud pumps can handle a wide range of drilling fluids, including water, oil-based mud, and water-based mud, making them versatile for various drilling applications.
5. Easy Maintenance: These pumps are designed with easy-to-access components, allowing for straightforward maintenance and reducing downtime during servicing.
6. Interchangeable Parts: Many components of the F series mud pump are interchangeable with other common mud pump models, simplifying spare parts management.
7. Balanced Loading: The design of F series mud pumps aims to provide balanced loading on the power end, which helps extend the pump's life and enhances its performance.
Features
- Design and fabrication compliant with API Spec. 7K.
- More effective lubrication type: forced type combined with splash type.
- Advanced structure, compact and durable, to improve the running steadiness.
- Compact size, reliable operation, extraordinary rugged fluid end.
Specifications
|
Model
|
F-500
|
F-800
|
F-1000
|
F-1300
|
F-1600
|
F-2200
|
|
Rated power, kW(hp)
|
373（500）
|
596(800)
|
746(1000)
|
969(1300)
|
1193(1600)
|
1640(2200)
|
|
Max. liner bore, mm (in)
|
170 (6-3/4)
|
170 (6-3/4)
|
170 (6-3/4)
|
180 (7-1/2)
|
180 (7-1/2)
|
230 (9)
|
|
Stroke, mm(in)
|
191（7-1/2）
|
229 (9)
|
254 (10)
|
305 (12)
|
305 (12)
|
356 (14)
|
|
Rated speed, spm
|
165
|
150
|
140
|
120
|
120
|
105
|
|
Gear ratio
|
4.286
|
4.185
|
4.207
|
4.206
|
4.206
|
3.512
|
|
Suction flange size, in
|
8
|
10
|
12
|
12
|
12
|
12
|
|
Discharge flange size, in
|
4
|
5
|
5
|
5
|
5
|
5
|
|
Valve pot
|
API 5#
|
API 6#
|
API 6#
|
API 7#
|
API 7#
|
API 8#
|
|
Weight, kg
|
9,770
|
14,500
|
18,790
|
24,572
|
25,417
|
38,460
|
Performance chart
Typical for F1300 mud pump
|
F-1300 Mud Pump Displacement and Pressure Relation Chart
|
|
Liner Diameter
|
Size Inch
|
7
|
6-3/4”
|
6-1/2”
|
6-1/4”
|
6”
|
5-1/2”
|
5
|
|
Discharge Pressure
|
MPa
|
18.9
|
20.4
|
22
|
23.8
|
25.8
|
30.7
|
34.5
|
|
Psi
|
2720
|
3050
|
3188
|
3440
|
3915
|
4495
|
5000
|
|
Stroke
|
Input Power
|
Displacement (L/s)
|
|
SPM
|
KW
|
HP
|
|
120
|
956
|
1300
|
45.41
|
42.22
|
39.15
|
36.20
|
33.36
|
28.03
|
23.17
|
|
110
|
874
|
1188
|
41.63
|
38.7
|
35.89
|
33.18
|
30.58
|
25.69
|
21.24
|
|
100
|
795
|
1081
|
37.84
|
35.18
|
32.63
|
30.17
|
27.8
|
23.36
|
19.31
|
|
90
|
715
|
972
|
34.06
|
31.67
|
29.36
|
27.15
|
25.02
|
21.02
|
13.38
|
|
50
|
397
|
540
|
18.92
|
17.59
|
16.31
|
15.08
|
13.9
|
11.68
|
9.65
|
|
1
|
7.9
|
10.8
|
0.3784
|
0.3518
|
0.3263
|
0.3017
|
0.278
|
0.2336
|
0.1931
|
Packaging & Shipment
Packaging type: Seaworthy packing
Exporting port: Tianjin, Shanghai
FAQ
1. Who are you?
Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.
2. Why should we buy from you?
a. Competitive price
b. Quick delivery
c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.
3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.
4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.
5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
