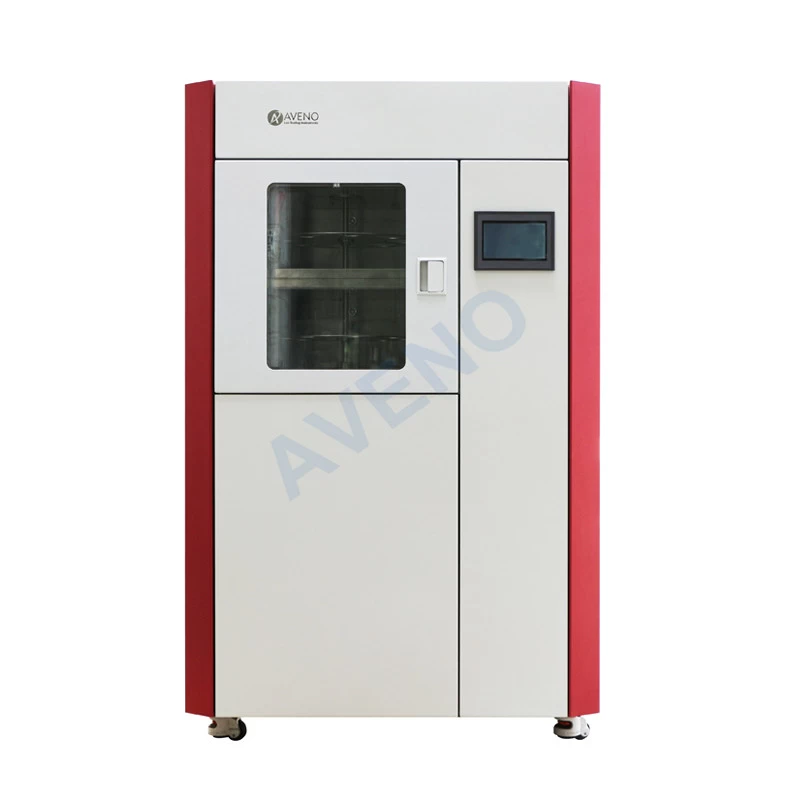

AG51-Fabric Water-vapour Transmission Tester
Application Of Fabric Water-vapour Transmission Tester
Fabric Water-vapour Transmission Tester is used to test moisture test of different kinds of fabric, membrane materials and coated fabrics.
Feature Of Fabric Water-vapour Transmission Tester
-

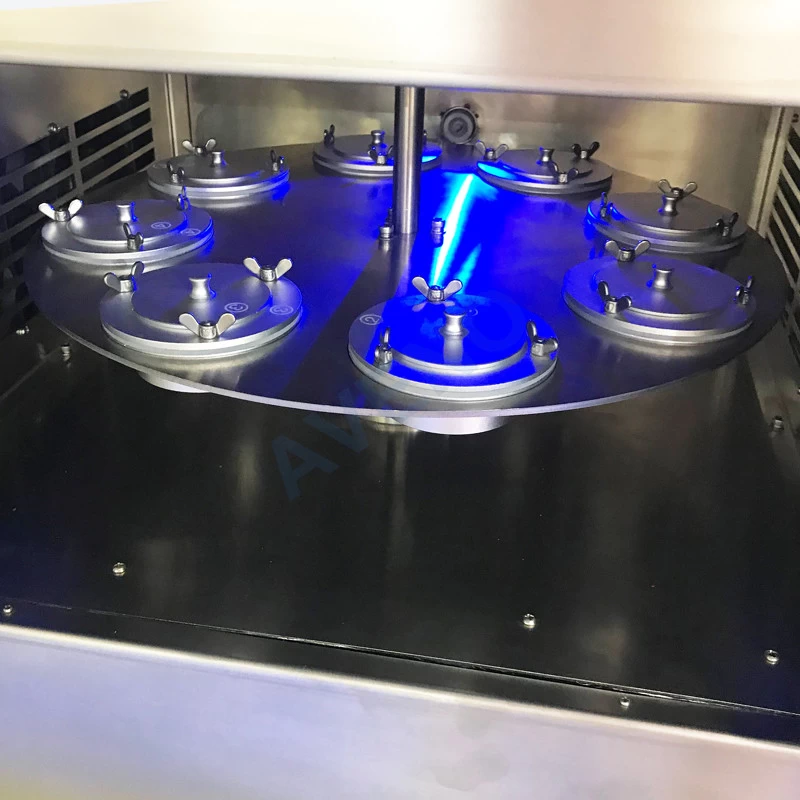

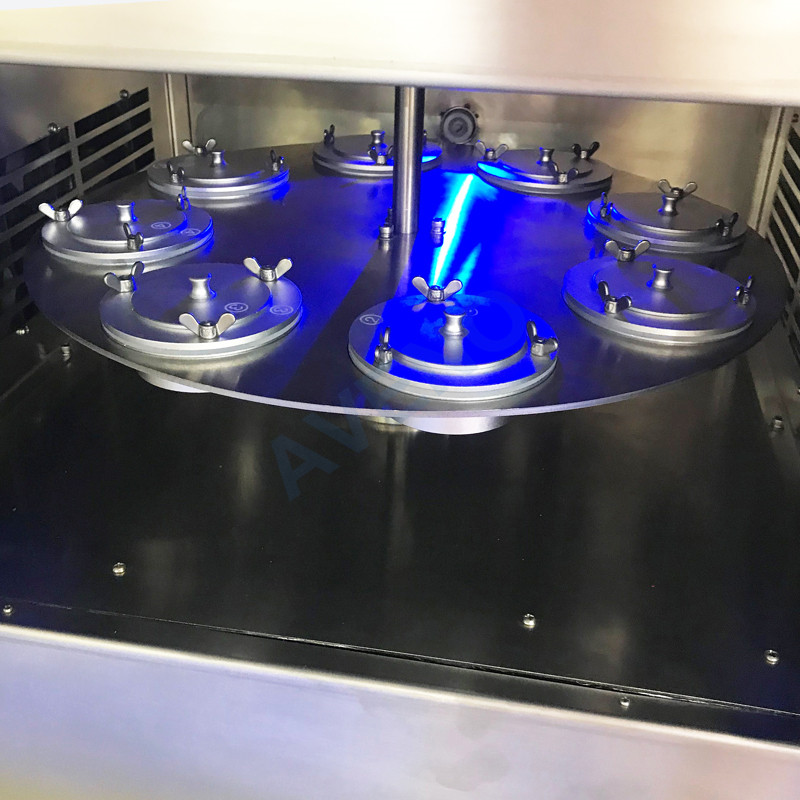

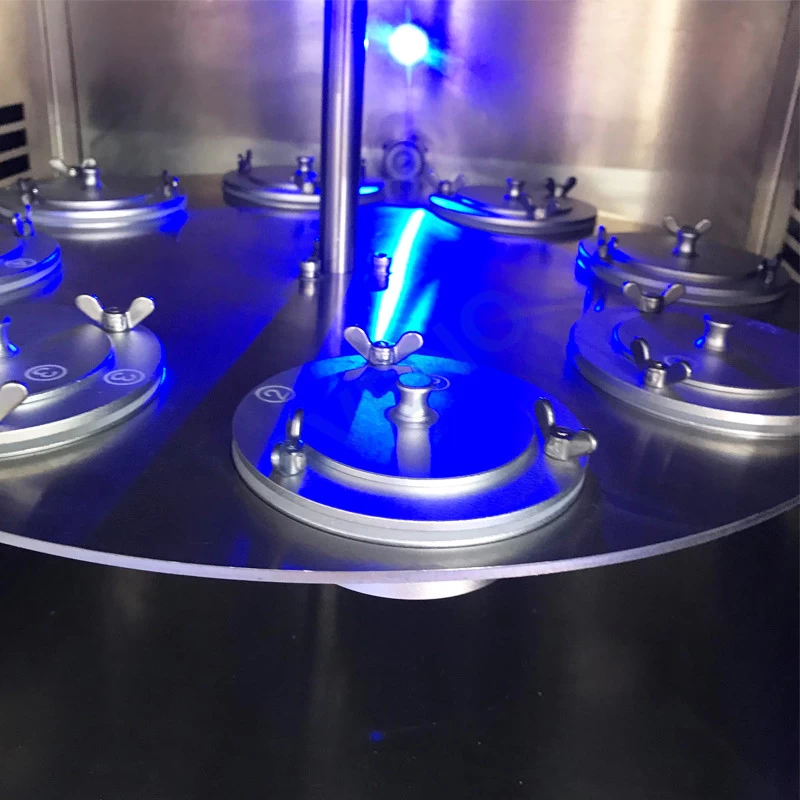

Rotating specimen stand, rotating speed adjustable, the test is more well-distributed than the fixed test stand.
-
PID algorithm control temperature, small fluctuation, and prevent overshoot of temperature and humidity.
-
With temperature and humidity calibration function, avoid deviation.
-
Record temperature and humidity curve, automatically calculate the WVT, WVP, PV value.
Standards Of Fabric Water-vapour Transmission Tester
GB/T 12704, GB/T 21665, ASTM E90, ASTM E96, JISL1099, BS 7209
Key Specification Of Fabric Water-vapour Transmission Tester
|
Model
|
AG51-1
|
AG51-2
|
|
Test cups
|
8
|
16
|
|
Control mode
|
Color
touch screen control
|
|
Temperature range
|
18-50℃, ±0.5℃ can be set
|
|
Humidity range
|
40-95%RH, ±1%RH can be set
|
|
Test chamber airflow velocity
|
0.1~0.8m/s
|
|
Power supply
|
AC220V,
50/60HZ
|
|
Dimension
|
74*67*120cm
|
105*67*170cm
|
|
Weight
|
200kg
|
220kg
|
