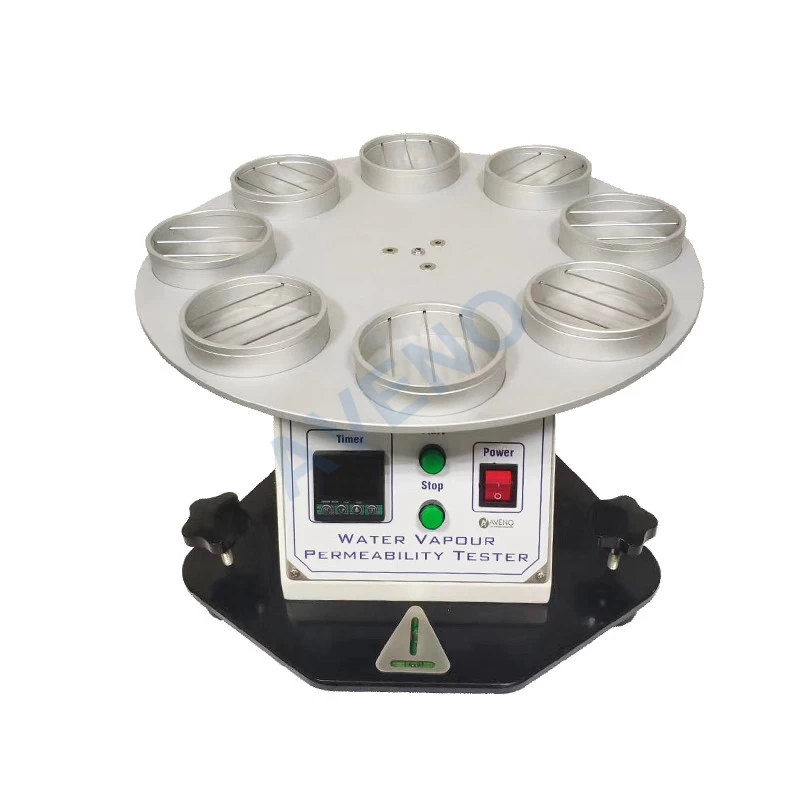

AG51B-Fabric Water-vapour Transmission Tester
Application Of Fabric Water-vapour Transmission Tester
Fabric Water-vapour Transmission Tester is used for detecting the water vapor transmission performance of textiles and textile composites (especially sportswear fabrics).
Principle Of Fabric Water-vapour Transmission Tester
In a constant temperature environment, the sample is covered on a sample dish containing water. After a certain period of time, water vapor is allowed to pass through the fixed sample area, and the weight of the permeated water vapor is weighed to calculate the water vapor permeability, excess rate and water vapor transmission index.
Standards Of Fabric Water-vapour Transmission Tester
BS 7209, BS 3424
Key Specification Of Fabric Water-vapour Transmission Tester
|
Model
|
AG51B-Fabric Water-vapour Transmission Tester
|
|
Sample
|
3 pcs, φ96mm
|
|
Test
vessel internal dimensions
|
83mm in
diameter and 18.5mm in depth
|
|
Test dish assembly weight
|
120g~150g/group
(with water)
|
|
Test dish filled with water
|
46cm^3
|
|
Distance
between Water surface and sample
|
10±1mm
|
|
Turntable
|
Aluminum, Test
tube placement center circle diameter P.C.D 305mm
|
|
Turntable speed
|
About
2r/min
|
|
Testing time
|
Can be set
|
|
Timer
|
LCD liquid
crystal display, 0~9999h can be set
|
|
Dimension
|
44x45x33cm
|
|
Weight
|
20Kg
|
|
power supply
|
220V,
50/60HZ
|
