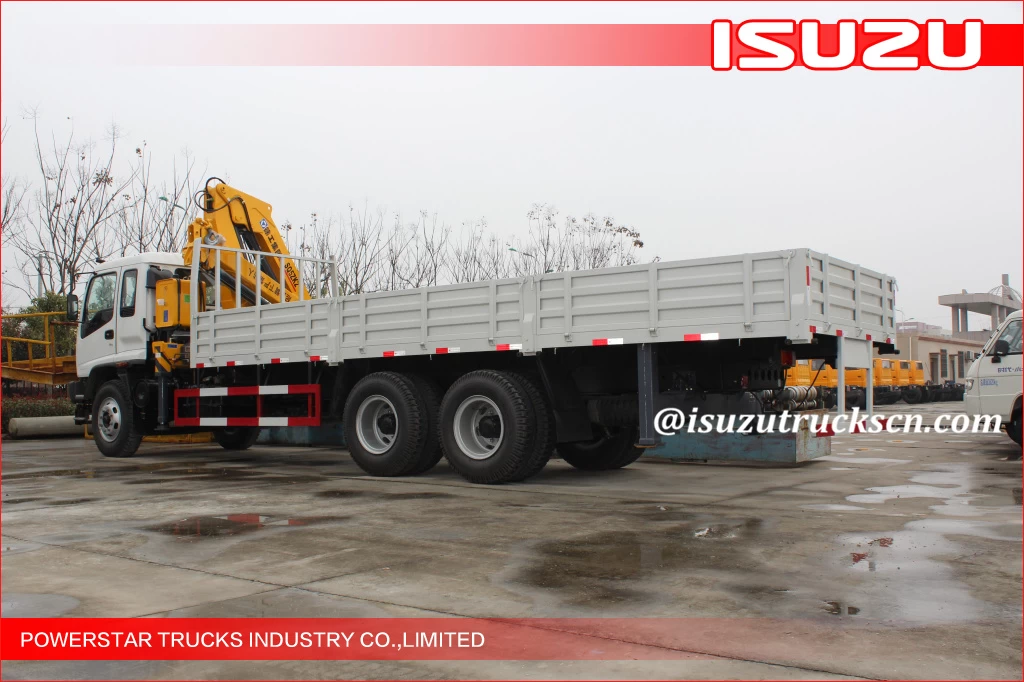

factory Isuzu 14 Ton Hydraulic System Truck Mounted Crane

Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow

1. Name: Telescoping boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
2. Max Lifting Capacity: 14 ton
3. Max Lifting Moment: 35 t.m
4. Max Oil Flow of Hydraulic System: 63 L/min
5. Max.Lifting height: 17.5meters
6. Brand: XCMG
7. Crane Weight: 4845 kg
8. Oil Tank Capacity: 160 L
9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.

Description:

Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.

Telescoping Boom Crane is an overbuilt, yet very compact, lifting device that can tackle heavy loads without taking up a lot of valuable cargo space. Adjustable boom elevation and reach means you can set the lifting point right where you need it.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

 Telescopic boom crane SQ14SK4Q is lifting capacity is 14tons, moment is 35 T.M.

Applications:

It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

Specifications:
