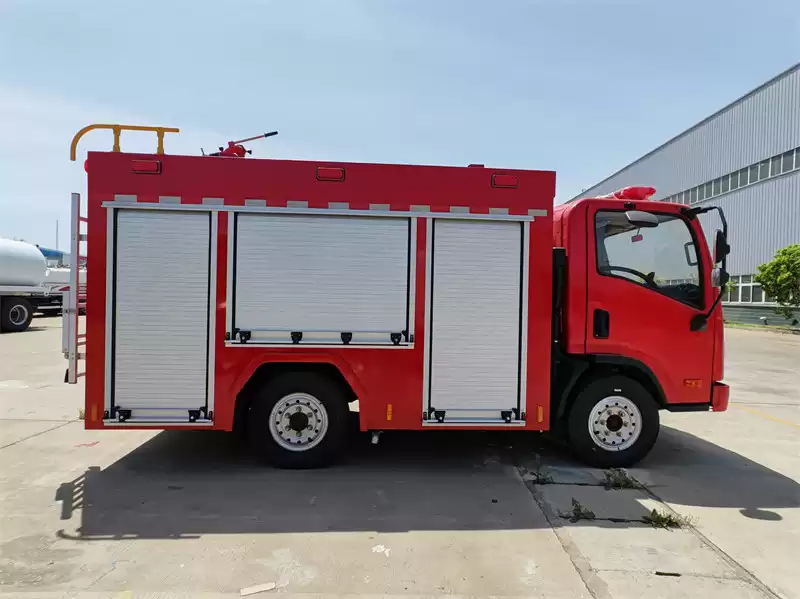

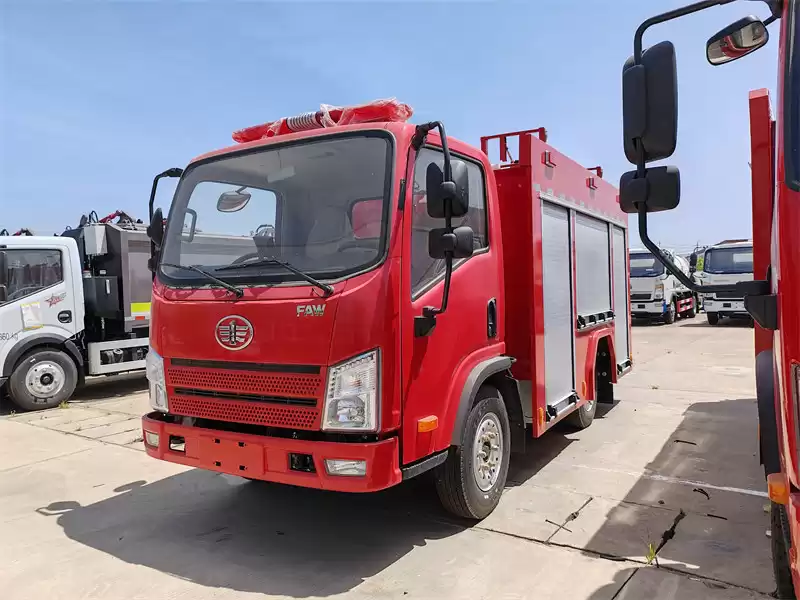

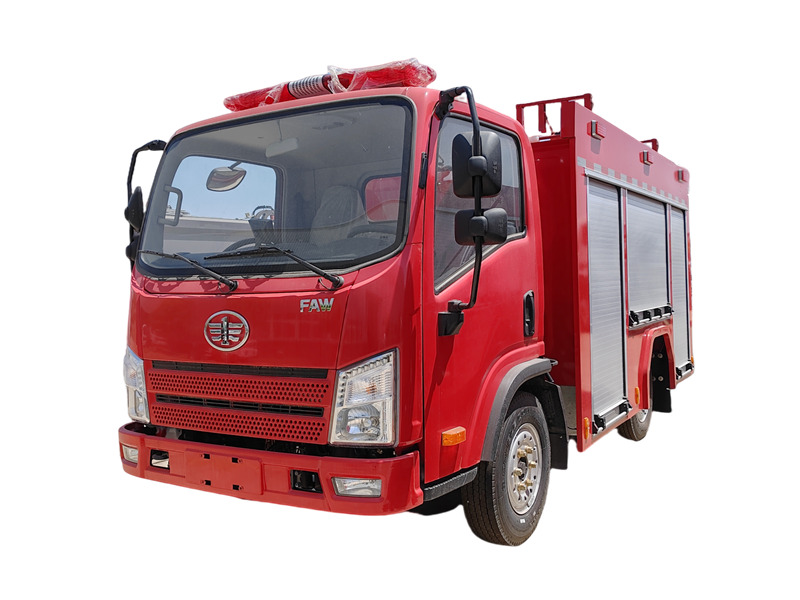

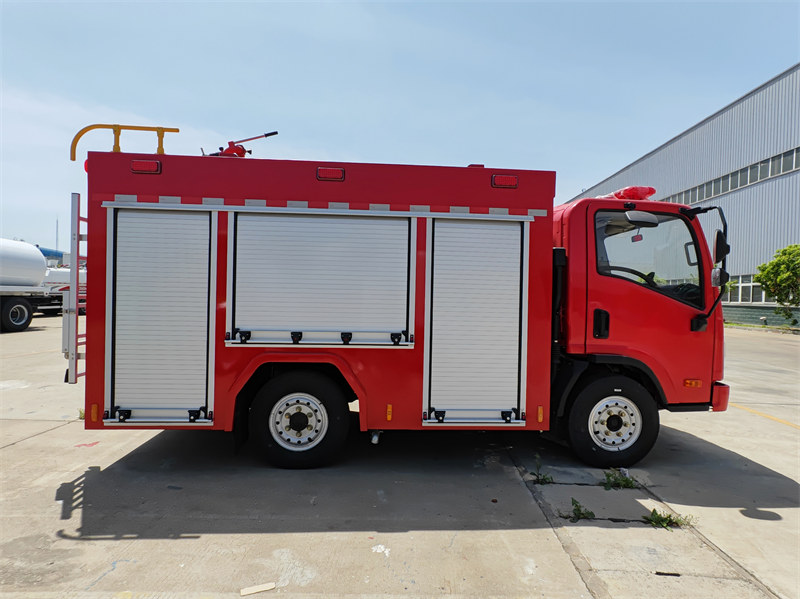

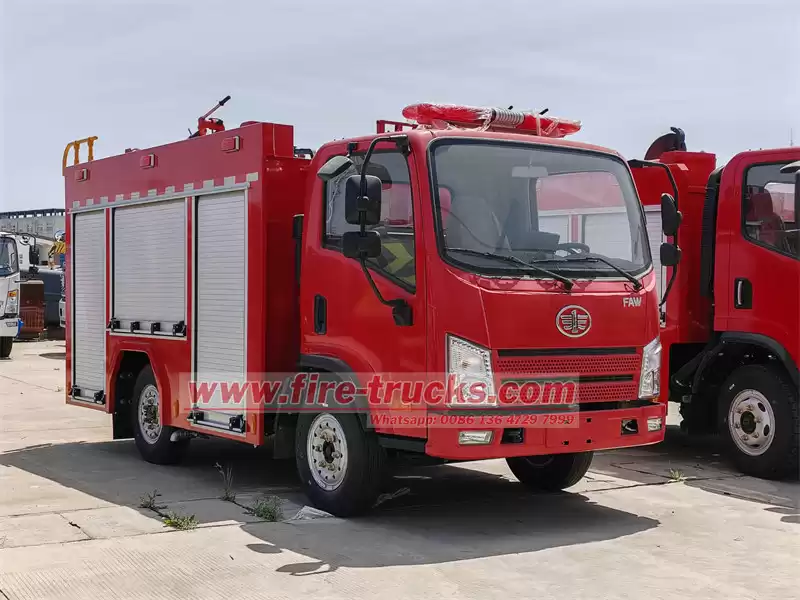

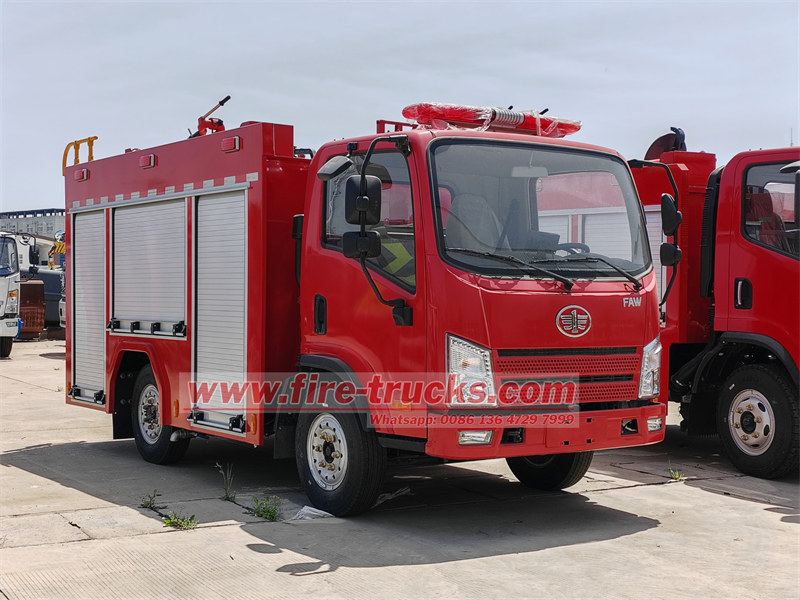

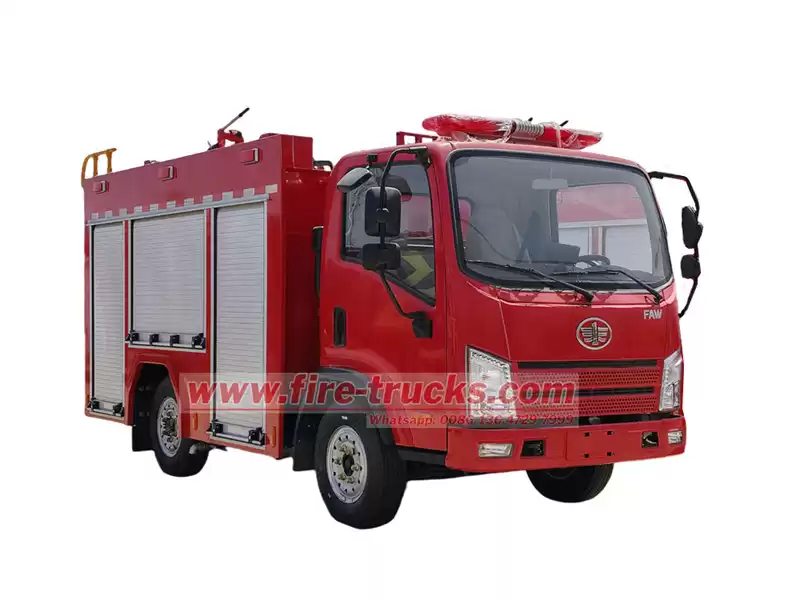

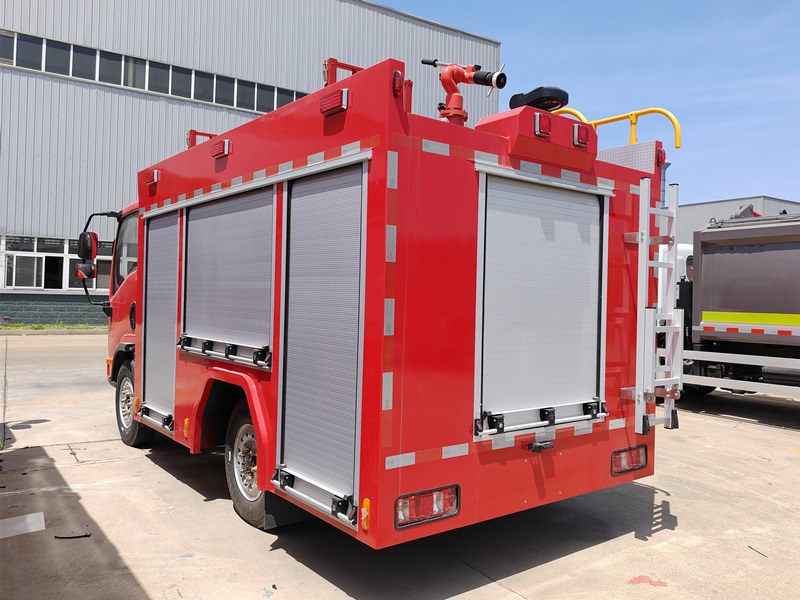

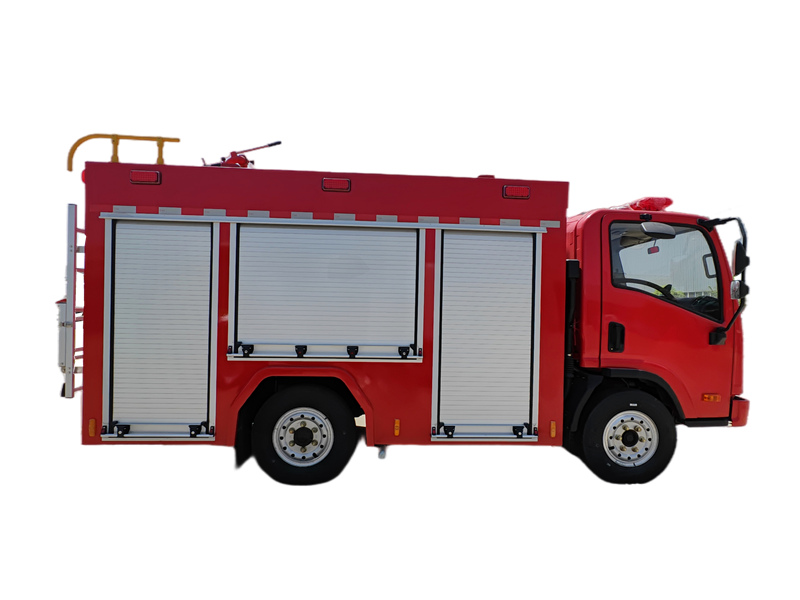

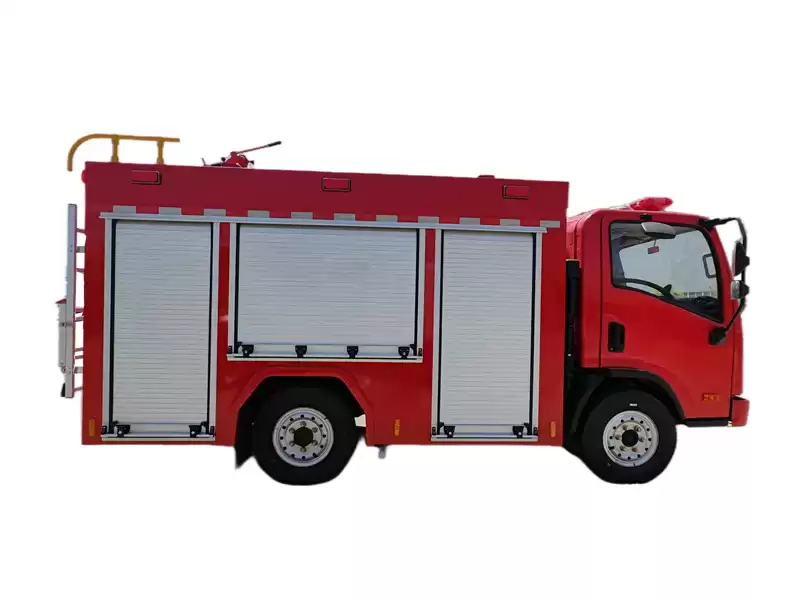

The FAW 3000L Tanker Fire Truck is a professional firefighting apparatus specifically designed for urban fire rescue operations. Built on the FAW 4×2 light-duty chassis, it perfectly combines mobility with specialized firefighting capabilities. With its 3000L large-capacity water tank and high-efficiency firefighting system, this vehicle is an ideal choice for tackling small to medium-sized fires, especially in confined urban areas such as streets, residential communities, and industrial parks. The truck measures 6800×2250×2930mm with a wheelbase of only 3300mm, featuring a small turning radius for easy navigation through city roads, ensuring rapid arrival at fire scenes.
The core firefighting system of the FAW pumper fire truck consists of a 3000L carbon steel water tank, a CB10/30 fire pump, and a PS30 fire monitor. The water tank is constructed from high-quality carbon steel plates with internal anti-rust treatment to ensure long-term durability. The CB10/30 standard-pressure fire pump is installed in the rear pump compartment and is driven by the chassis power take-off (PTO). It delivers a stable flow rate of 30L/s at 1.0MPa pressure, with a maximum suction depth of 7 meters and a priming time of no more than 35 seconds, meeting industry-leading performance standards.

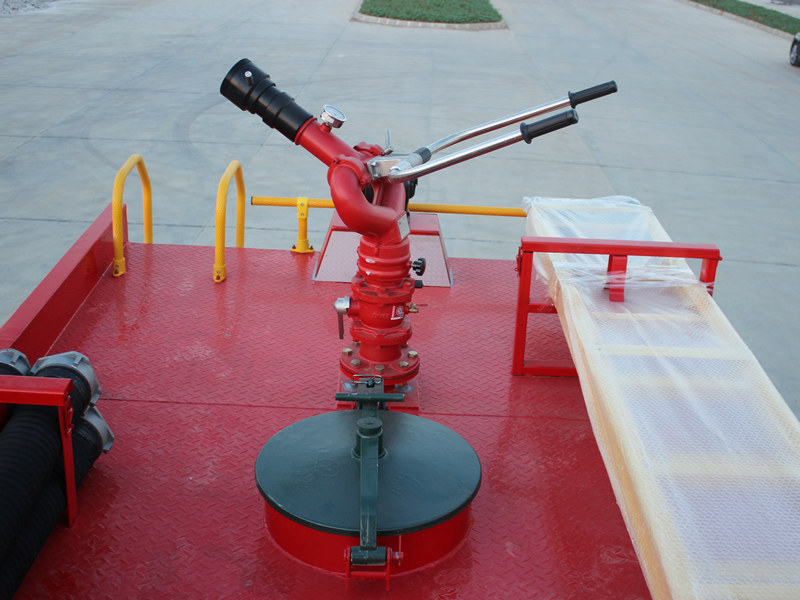

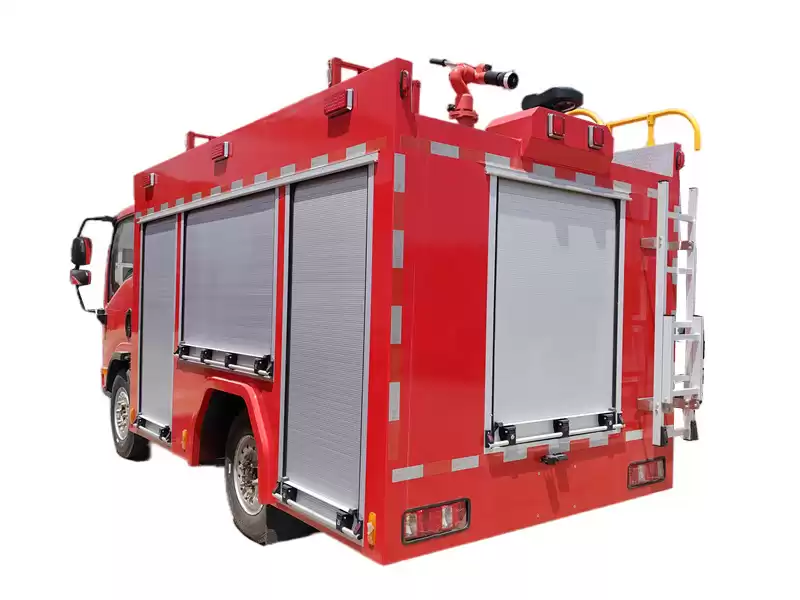

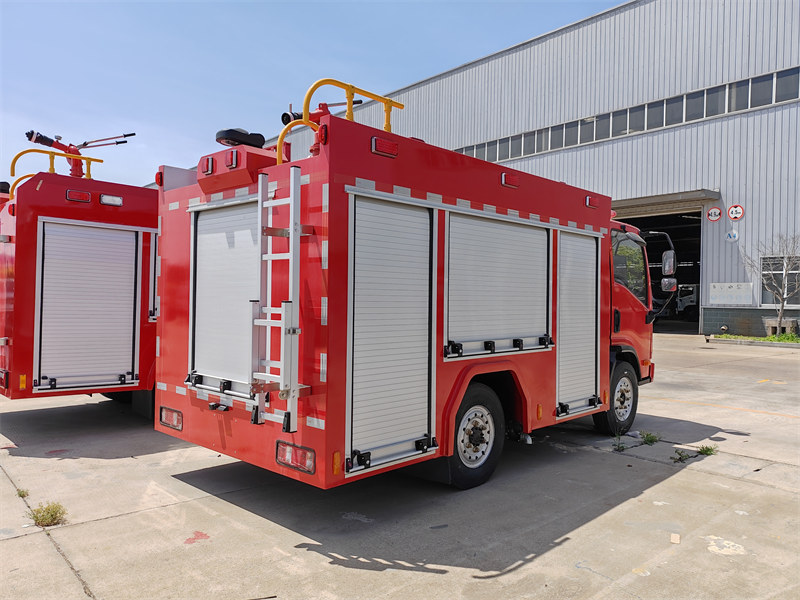

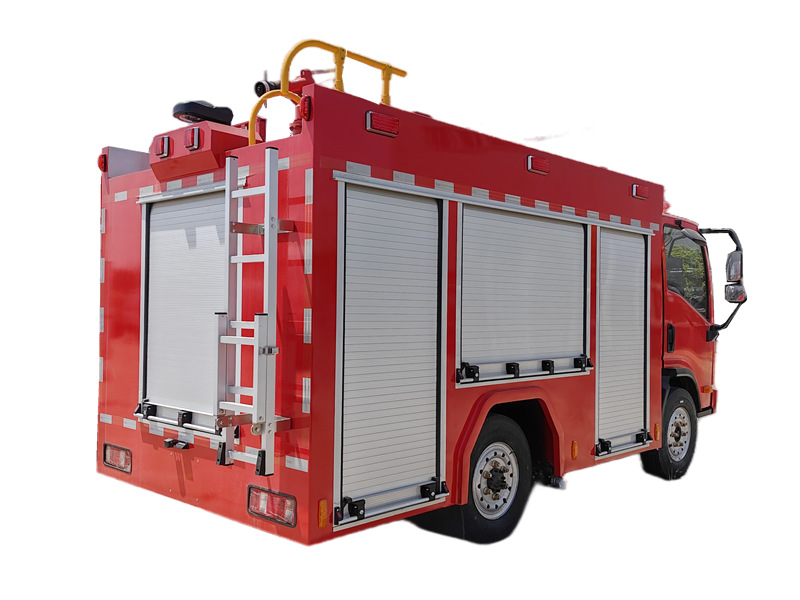

The roof-mounted PS30 fire monitor has a rated flow of 30L/s, an operating pressure of 0.8MPa, and a maximum pressure resistance of 1.3MPa, with a range exceeding 60 meters. The monitor allows 360° horizontal rotation and -30° to 70° vertical adjustment, providing extensive coverage and flexible operation. This configuration enables firefighters to quickly adjust the spray angle based on fire conditions, allowing for direct fire suppression or water curtain protection to safeguard both personnel and surrounding structures. The equipment compartments feature high-quality aluminum roll-up doors, combining aesthetics with durability for quick and easy access to firefighting tools.

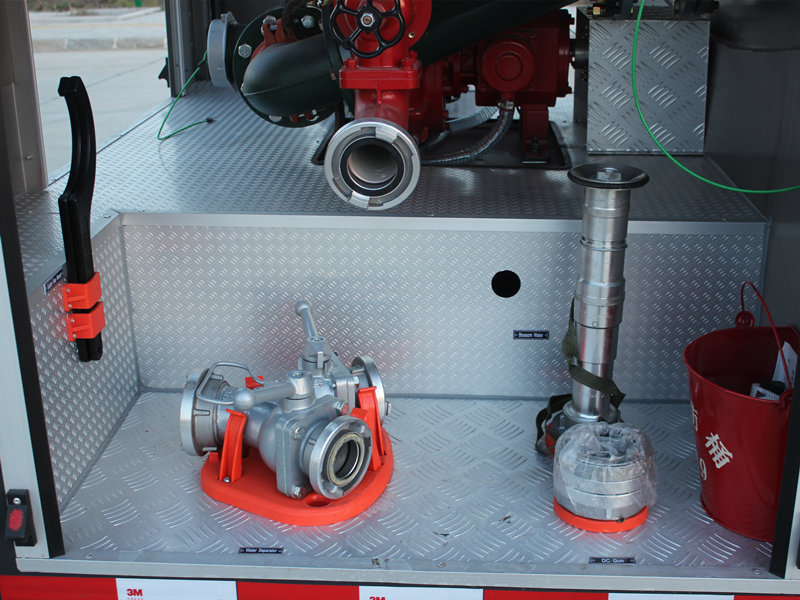

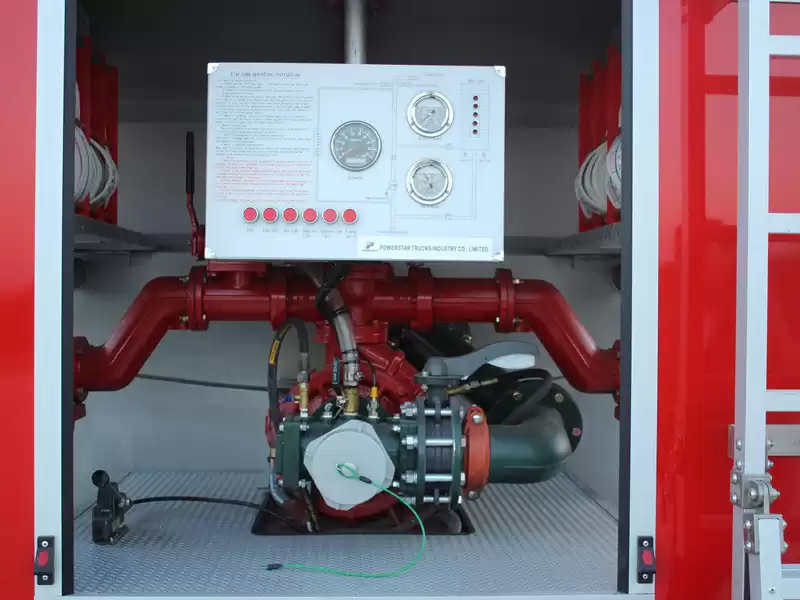

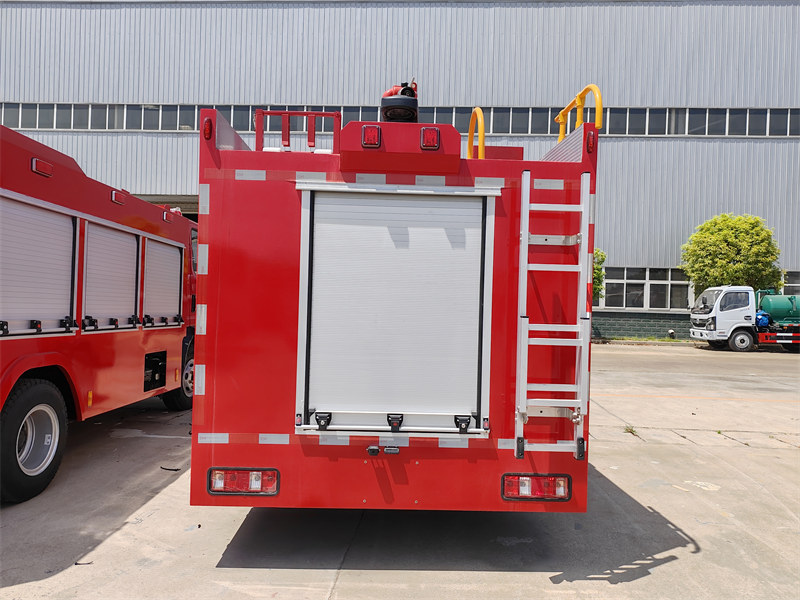

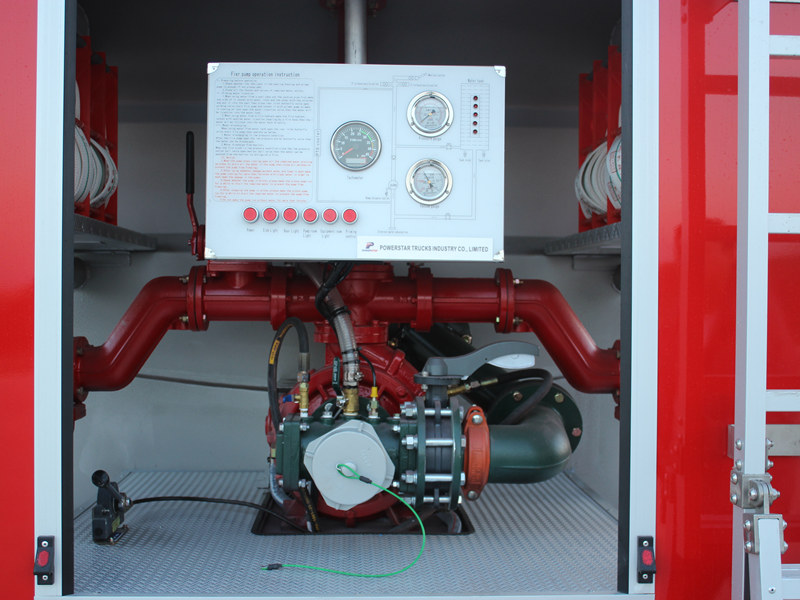

The FAW 3000L water fire tender incorporates ergonomic principles in its design, featuring a centralized and user-friendly control interface to reduce firefighter workload. The cab layout is well-organized, with all controls within easy reach and an intuitive instrument panel for clear information display. The pump control panel is conveniently located at the rear for easy operation, with all parameters clearly visible and logically arranged valve switches. The aluminum roll-up door compartments are lightweight and easy to open, with a rationally organized interior space for efficient storage and retrieval of equipment. These thoughtful design details ensure that firefighters can operate efficiently even in high-pressure firefighting scenarios.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
● Build strict QC team to guarantee the quality
Product Specifications
|
FAW Water Tender Fire Truck Specification
|
|
Chassis model
|
CA1081P
|
|
Cab
|
FAW single row cab, up/down and front/back adjustable steering wheel, with air conditioning.
|
|
Driving Type
|
4×2 left hand driving (LHD)
|
|
Max Speed (km/h)
|
90
|
|
Overall dimension (mm)
|
6800*2250*2930
|
|
GVW (kg)
|
8200
|
|
Curb Weight (kg)
|
5200
|
|
Wheelbase (mm)
|
3300
|
|
F/R track base (mm)
|
1650/1525
|
|
F/R overhang (mm)
|
1150/1860
|
|
Approach/Departure Angel
|
24/10°
|
|
Tire
|
7.50R16, radial tires, 6+1(spare tire)
|
|
Clutch
|
Single plate φ330 diaphragm spring clutch
|
|
Steering
|
Hydraulic steering with power assistance
|
|
Gear box
|
6 forward & 1 reverse manual gearbox
|
|
Axles
|
Front axle
|
Drum brake front axle, axle loading capacity is 3000kg
|
|
Rear axle
|
Rated loading capacity:6000kg
|
|
Engine
|
Model
|
YC4D130-33
|
|
Brand
|
YUCHAI
|
|
Emission Standard
|
EURO 3
|
|
Fuel Type
|
Diesel
|
|
Type
|
4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
|
|
Horsepower (hp)
|
130
|
|
Displacement(ml)
|
3660
|
|
Max. torque (N.m)
|
380
|
|
Rated speed (rpm)
|
2900
|
|
Braking system
|
Service Brake
|
Compressed air brake
|
|
Park Brake
|
Spring energy
|
|
Auxiliary brake
|
engine exhaust brake
|
|
Electric system
|
24v
|
|
Upper-body Specification
|
|
Water tank
|
Volume
|
3,000 Liters
|
|
Material
|
Carbon steel plate, anti-rust treatment inside.
|
|
Fire pump
|
Model
|
CB10/30
|
|
Pressure
|
1.0Mpa
|
|
Flow
|
30L/S
|
|
Max. suction depth
|
7m
|
|
Water suction time
|
≤35s
|
|
Fire monitor
|
Model
|
PS30
|
|
Rated flow
|
30 L/s
|
|
Rated pressure
|
0.8 Mpa
|
|
Range
|
≥60
|
|
Horizontal rotation angle
|
360 º
|
|
Pitch angle
|
-30°~70°
|

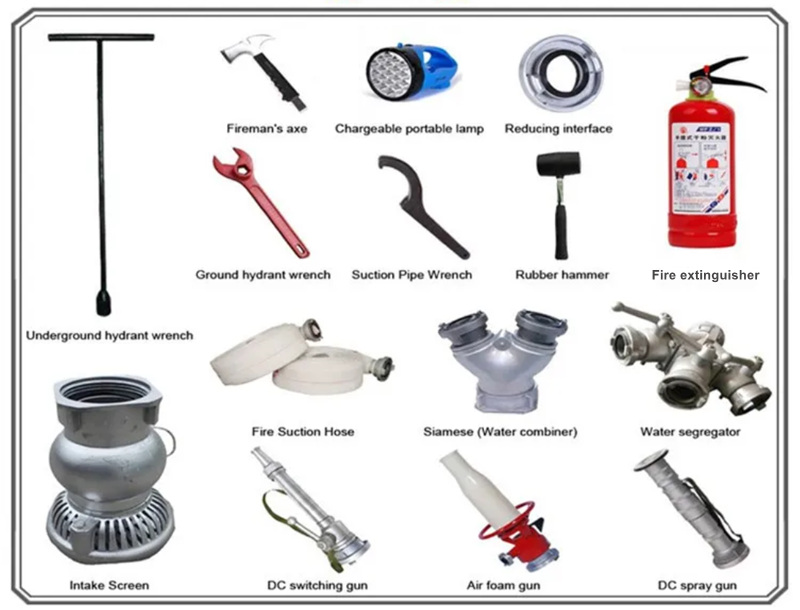

Standard Firefighting Tools for FAW Water Tender Fire Truck
Product Applications
Application Scenarios of the FAW 3000L Firefighting Truck:
1. Urban Community Firefighting – Ideal for narrow streets and residential areas, enabling rapid response to initial fires and preventing fire spread.
2. Industrial Park Protection – Provides flexible and mobile firefighting support for chemical plants, electronics factories, warehouses, and other enterprises.
3. Standard Equipment for Township Fire Stations – A cost-effective solution that meets basic fire suppression and emergency rescue needs in rural areas.
4. Airport Auxiliary Firefighting – Serves as a rapid-response fire vehicle for runway perimeters and apron zones.
5. Public Institutions (Schools, Hospitals, etc.) – Delivers professional-level fire safety protection for high-density public spaces.
Product Pictures
