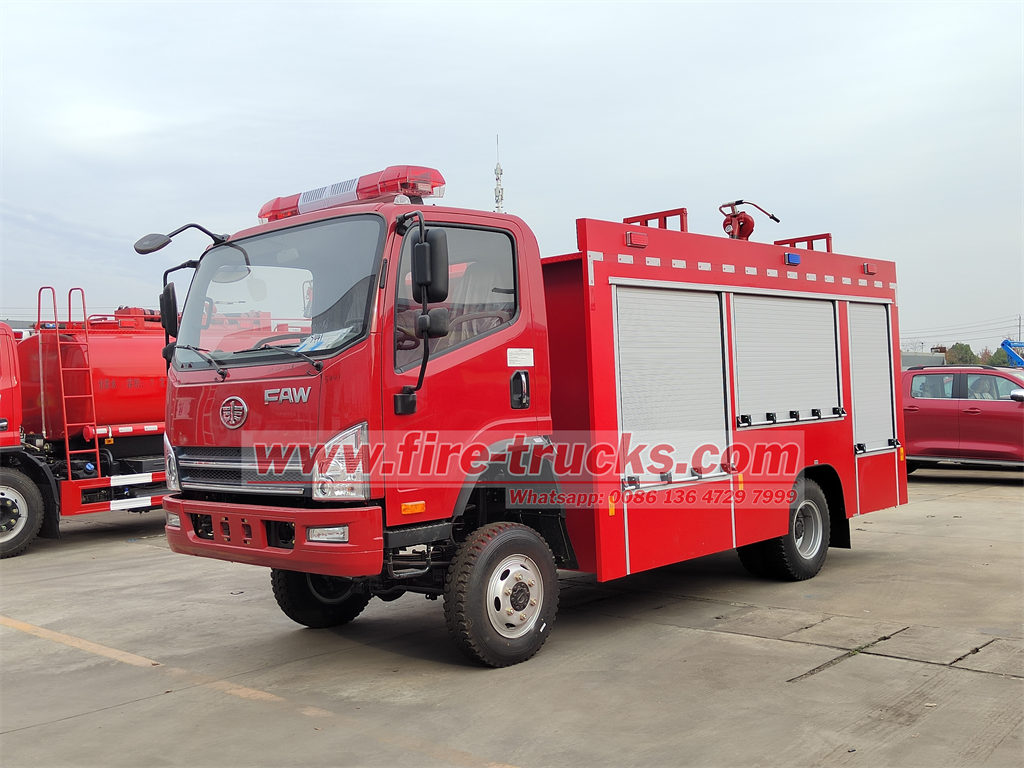

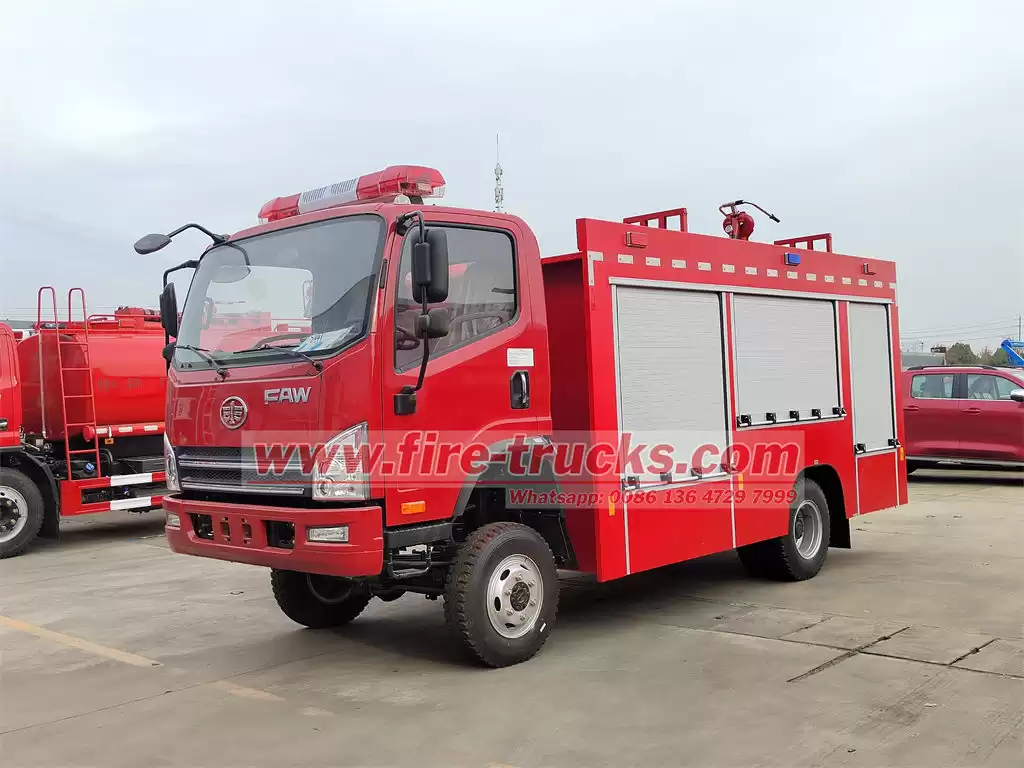

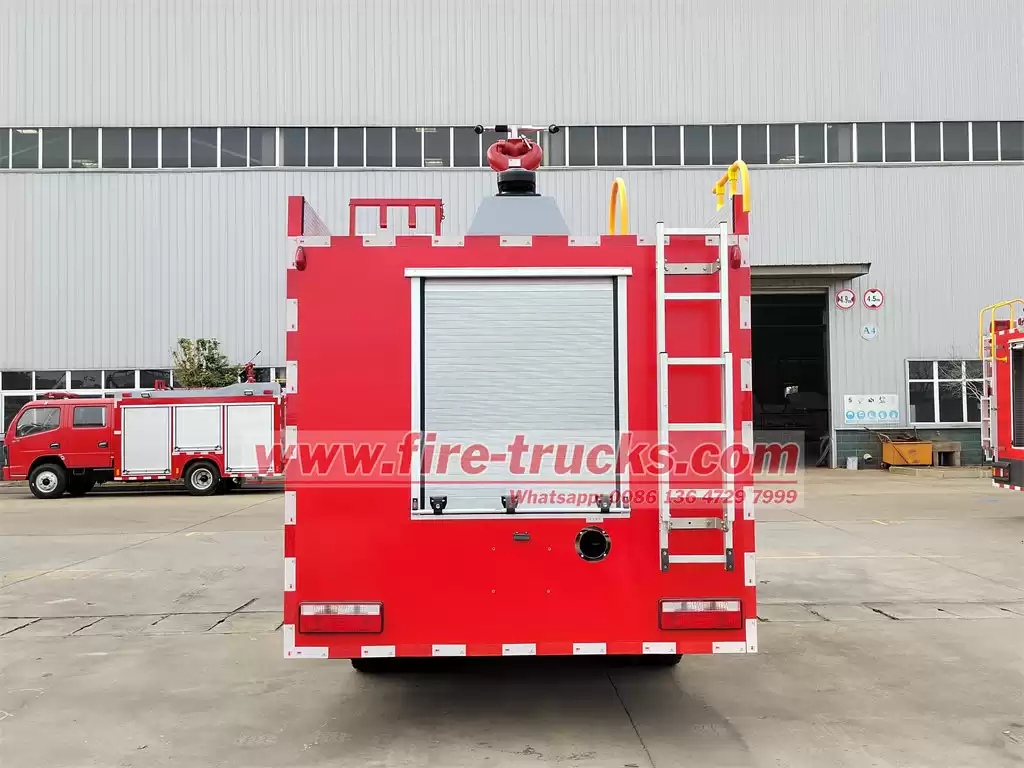

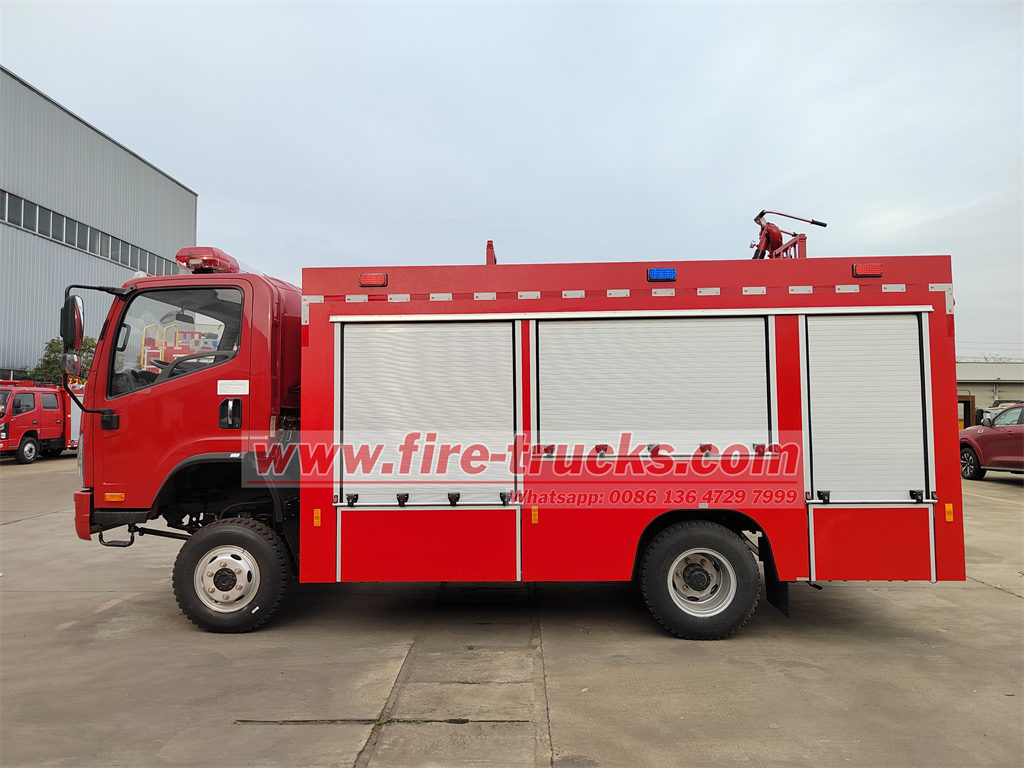

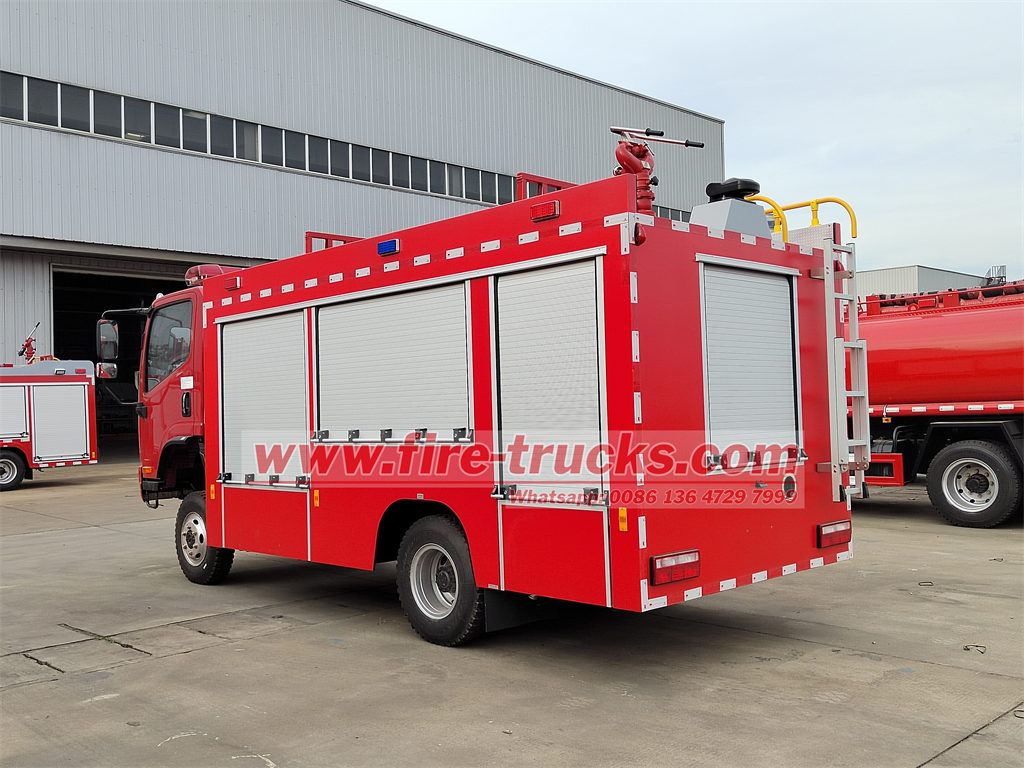

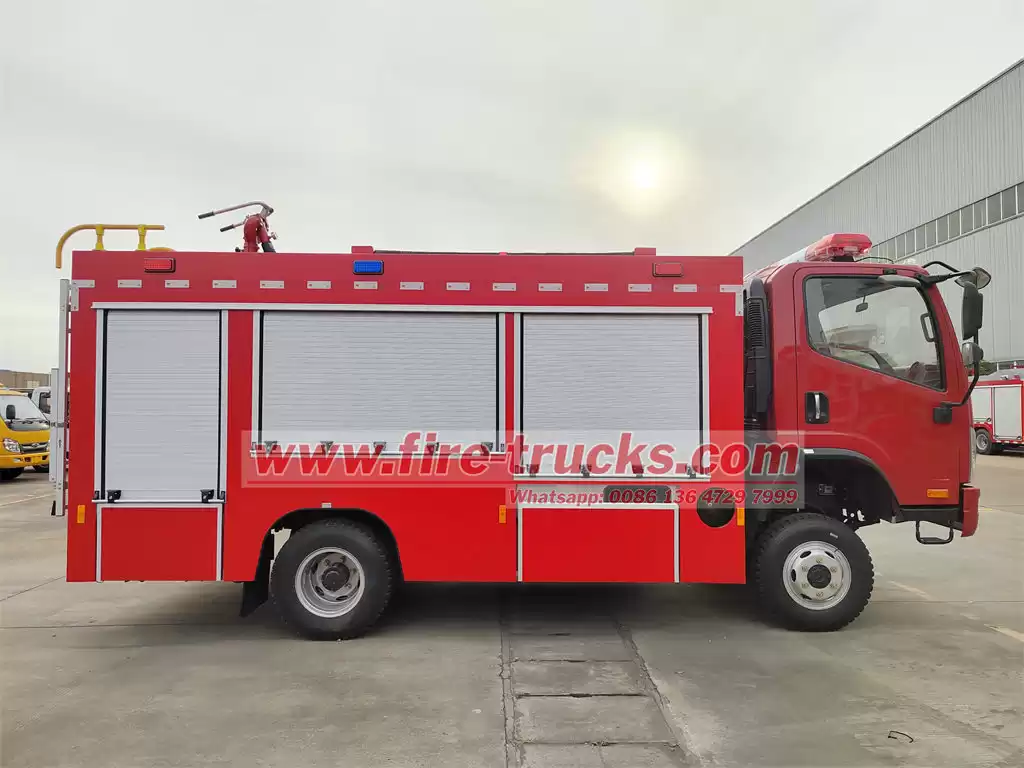

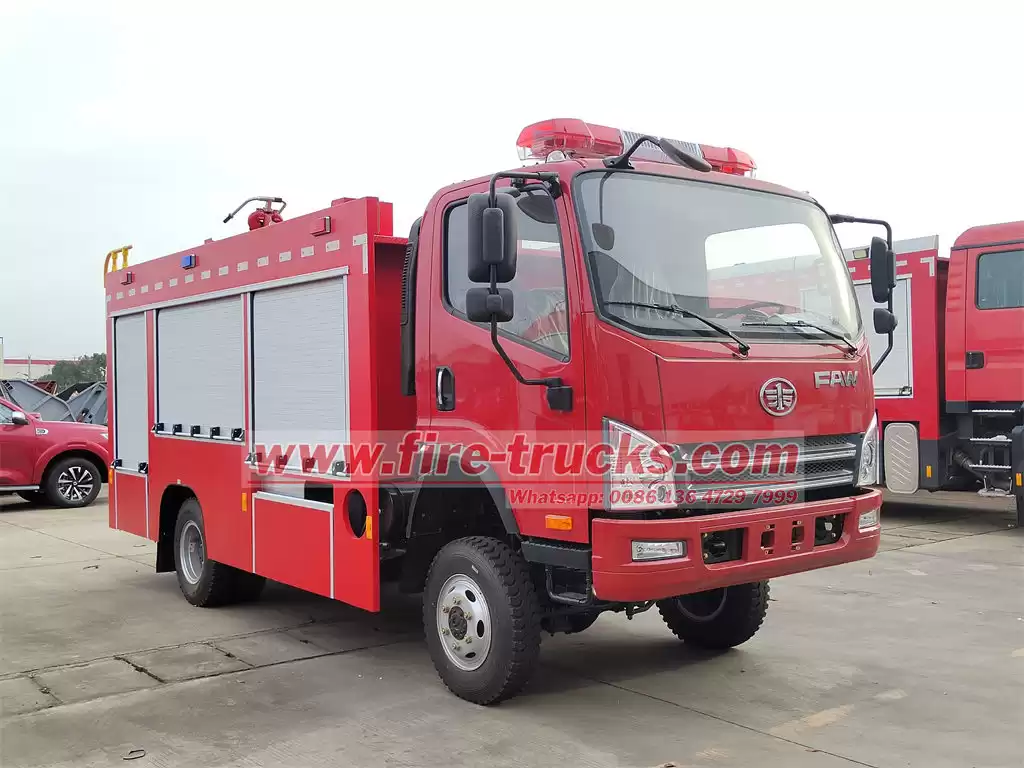

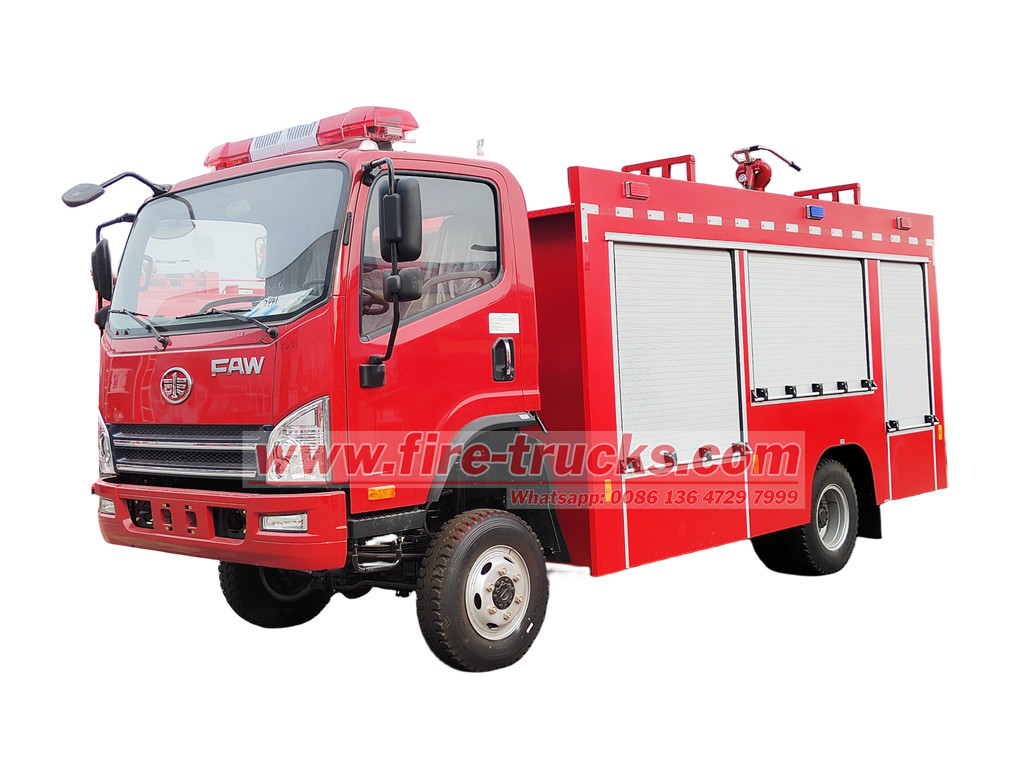

The FAW 4×4 foam fire truck is a multifunctional special-purpose vehicle designed for firefighting and rescue missions, integrating efficient fire suppression, rapid response, and the ability to navigate complex terrains. As a medium-sized fire truck with 4×4 all-wheel drive, it is not only suitable for urban firefighting tasks but also plays a crucial role in challenging environments such as forests, mountainous regions, and oil fields. Its core function is to quickly extinguish fires and control their spread through a large-capacity water tank and foam tank, combined with high-efficiency firefighting equipment, while providing firefighters with a safe and reliable operating environment. With its powerful performance, robust chassis, and advanced upper-body equipment, the FAW 4×4 firefighting truck has become an indispensable asset in modern firefighting teams.
Product Specifications
|
Cabin
|
Double Row Cab with Air condition
|
|
Driving type
|
4×4， all wheel drive
|
|
Vehicle Dimensions
|
Overall dimensions (L x W x H)mm
|
7200×2500×3200
|
|
Wheelbase (mm)
|
3300mm
|
|
Wheel track (front/rear) (mm)
|
1660/1590
|
|
Weight in KGS
|
Gross Vehicle Weight
|
8200
|
|
Tare weight
|
5200
|
|
Front axles loading capacity
|
2500
|
|
Speed ratio
|
5.571
|
|
Rear axles loading capacity
|
5000
|
|
Speed ration
|
5.571
|
|
Max. driving speed(km/h)
|
85
|
|
Engine
|
Brand
|
YUCHAI
|
|
Model
|
YC4D130-33
|
|
Fuel type
|
Diesel
|
|
Type
|
4-stroke direct injection , 4-cylinder in-line, water cooling
|
|
Horse Power(HP)
|
130 HP
|
|
Emission standard
|
Euro 3
|
|
Rated speed
|
2800 rpm
|
|
Max. torque
|
420 N.m
|
|
Gearbox
|
WLY, 6 Forwards gear & 1 reverse gear
|
|
Steering
|
Power steering, hydraulic steering with power assistance
|
|
Fuel tank (L)
|
100 liters
|
|
Tire
|
7.50R16,7 pcs including one spare tire
|
|
Tank Capacity (L)
|
Water: 2,000
|
|
Foam: 1,000
|
|
Fire Pump
|
Model
|
CB10/30
|
|
Flow
|
30L/s at Low Pressure 1.0 MPa
|
|
Fire Monitor
|
Model
|
PL24
|
|
Pressure
|
0.8~1.2MPa
|
|
Flow
|
24L/S
|
|
Range
|
Water≥55 m
|
|
Foam≥45 m
|
|
Rotation angle
|
360° Horizontal
|
|
-30°~80° Pitch Angle
|
Vehicle Main Structure

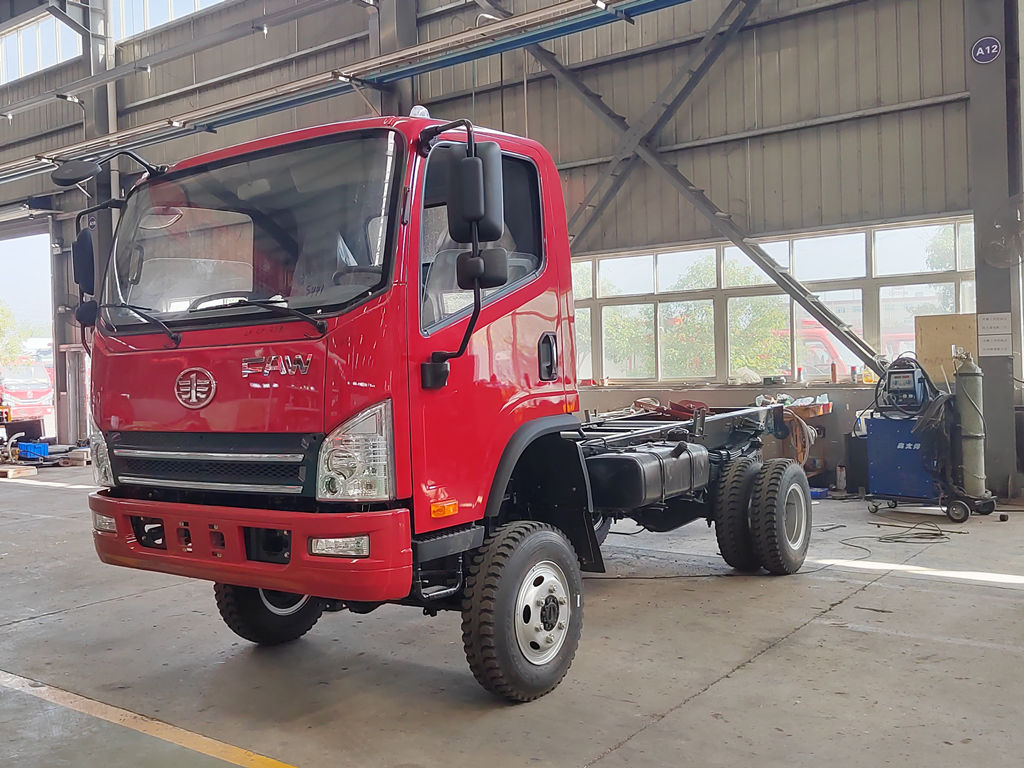

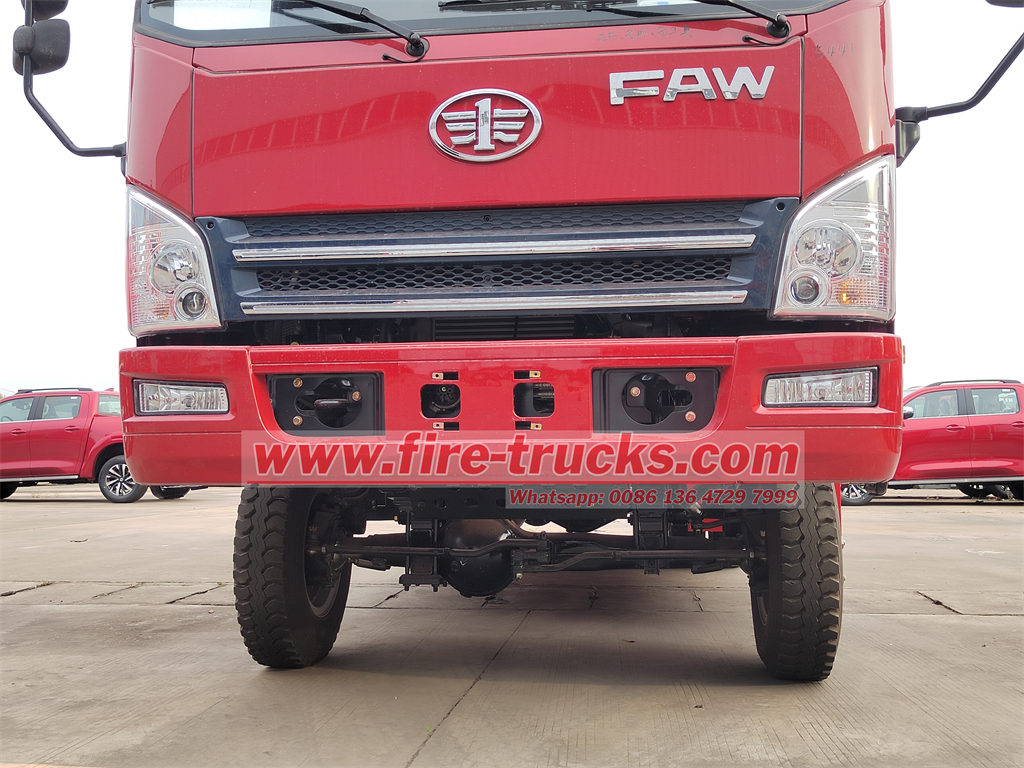

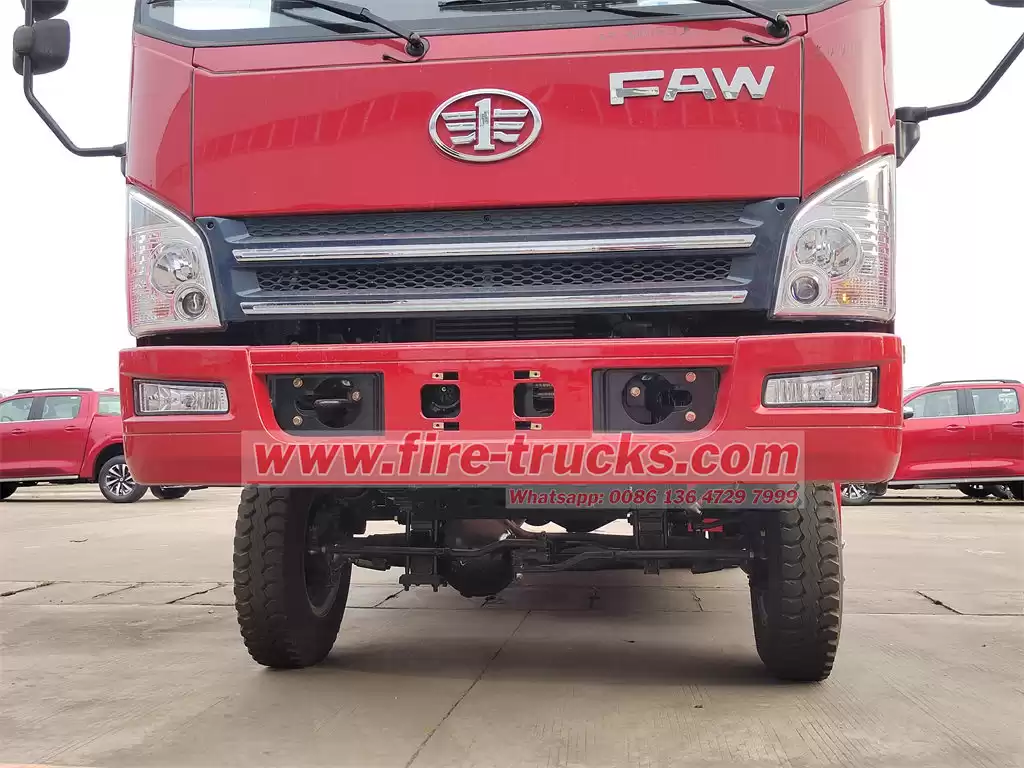

Chassis System:
The FAW 4×4 chassis serves as the core foundation of this fire truck, featuring an all-wheel-drive system that ensures exceptional off-road capability and stability in harsh conditions. The chassis is equipped with a WLY-brand 6-speed forward and 1-speed reverse transmission, offering smooth gear shifting and user-friendly operation. The power steering system, assisted by hydraulics, reduces the driver's operational burden and enhances maneuverability and safety. With a 100-liter fuel tank capacity, the vehicle meets the demands of prolonged operations.

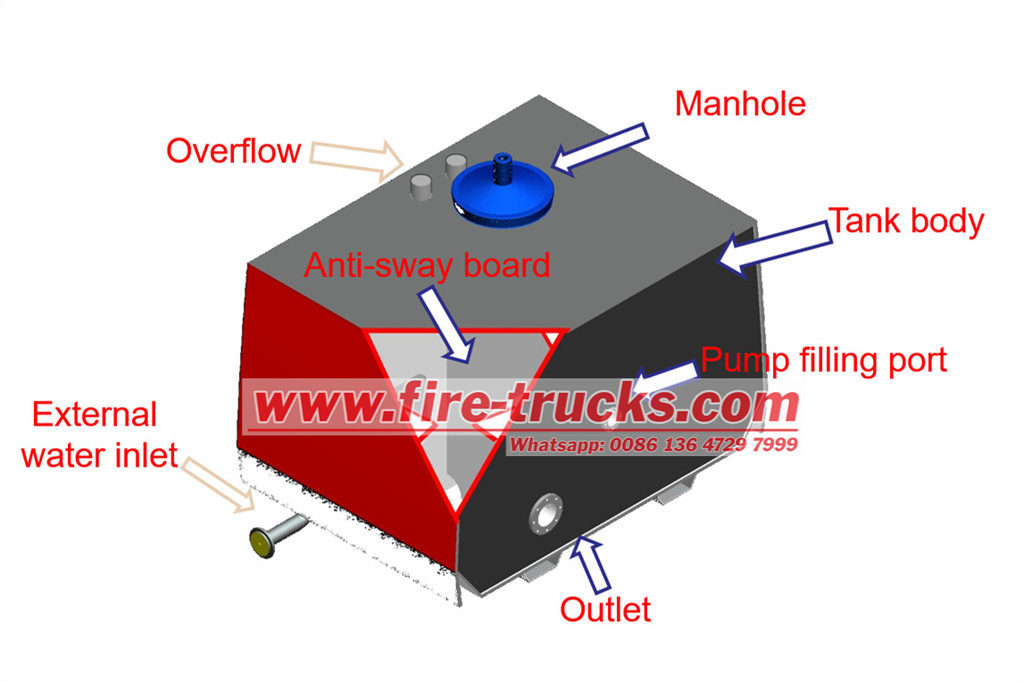

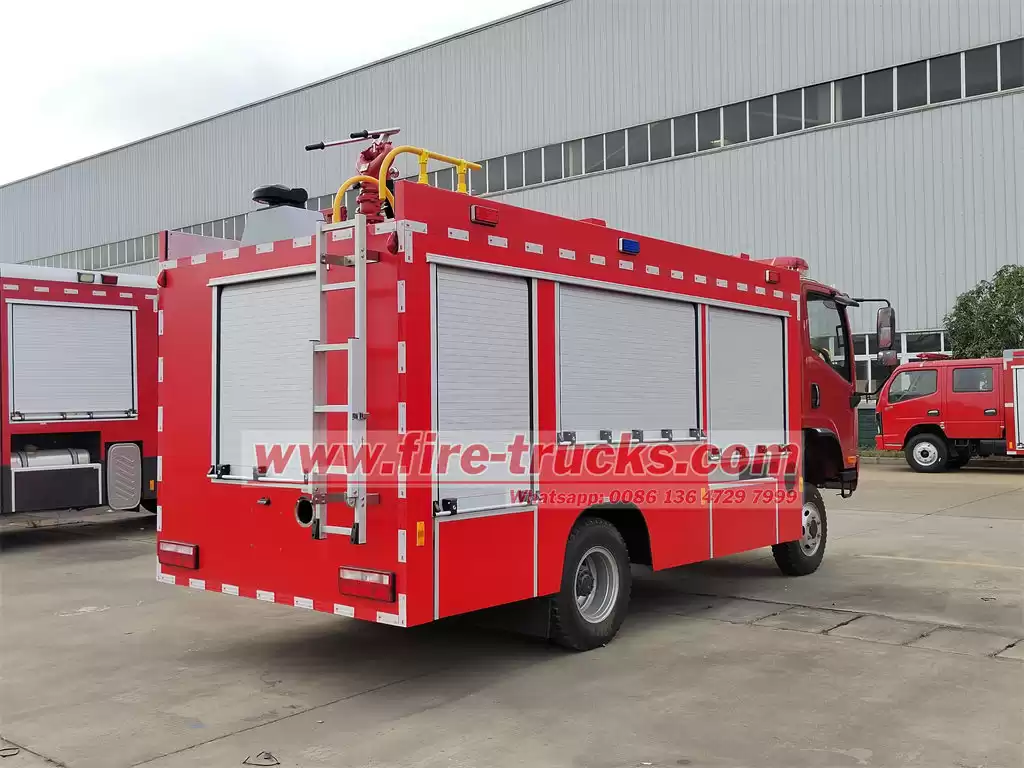

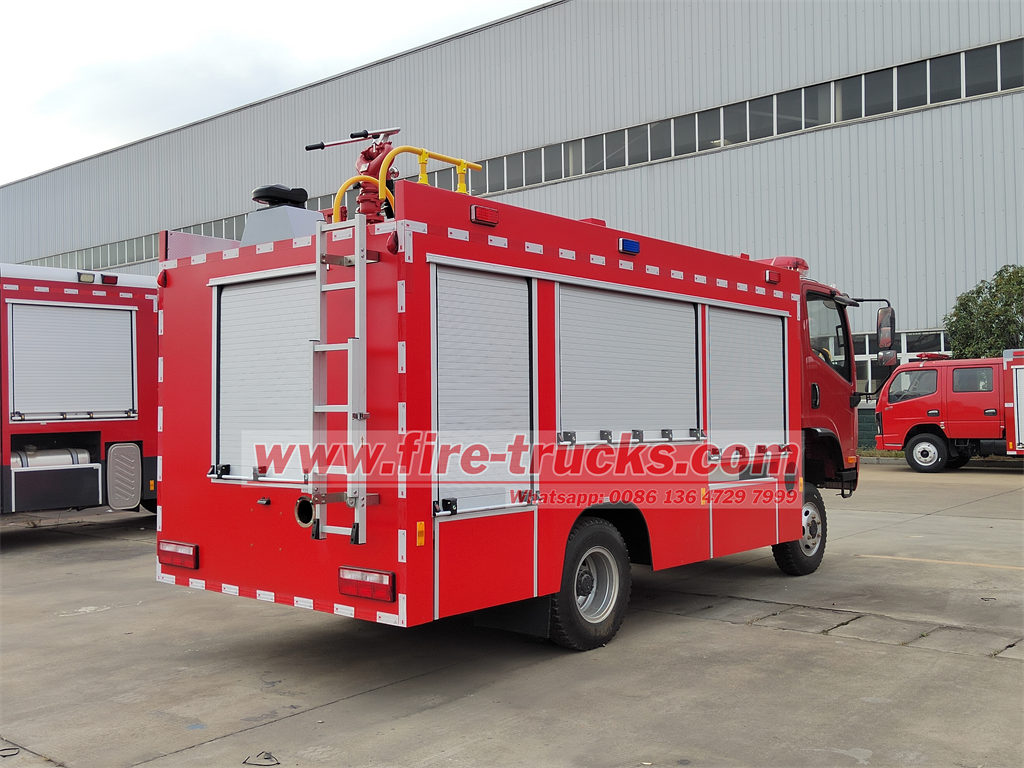

Tank System:
The water tank and foam tank are critical components of the FAW 4WD fire truck. The vehicle is equipped with a total tank capacity of 3,000 liters (2,000 liters for water and 1,000 liters for foam), meeting the firefighting needs of most fire scenes. The water tank stores clean water, while the foam tank stores firefighting foam. The combination of both allows for effective responses to different types of fires, significantly improving firefighting efficiency.

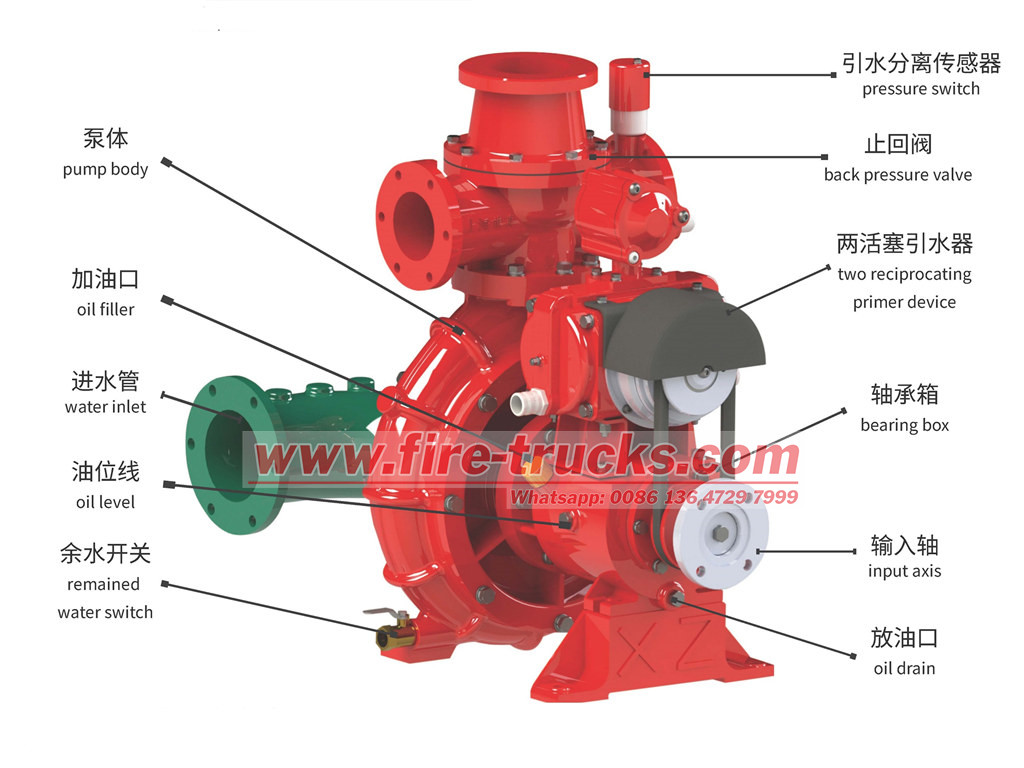

Fire Pump System:
The fire pump is the "heart" of the FAW 4×4 fire engine, responsible for delivering water and foam to the fire monitor. The vehicle is equipped with a CB10/30 fire pump, capable of a flow rate of 30 liters per second at a working pressure of 1.0 MPa. This ensures an adequate supply of firefighting agents, enabling rapid control of fire situations.

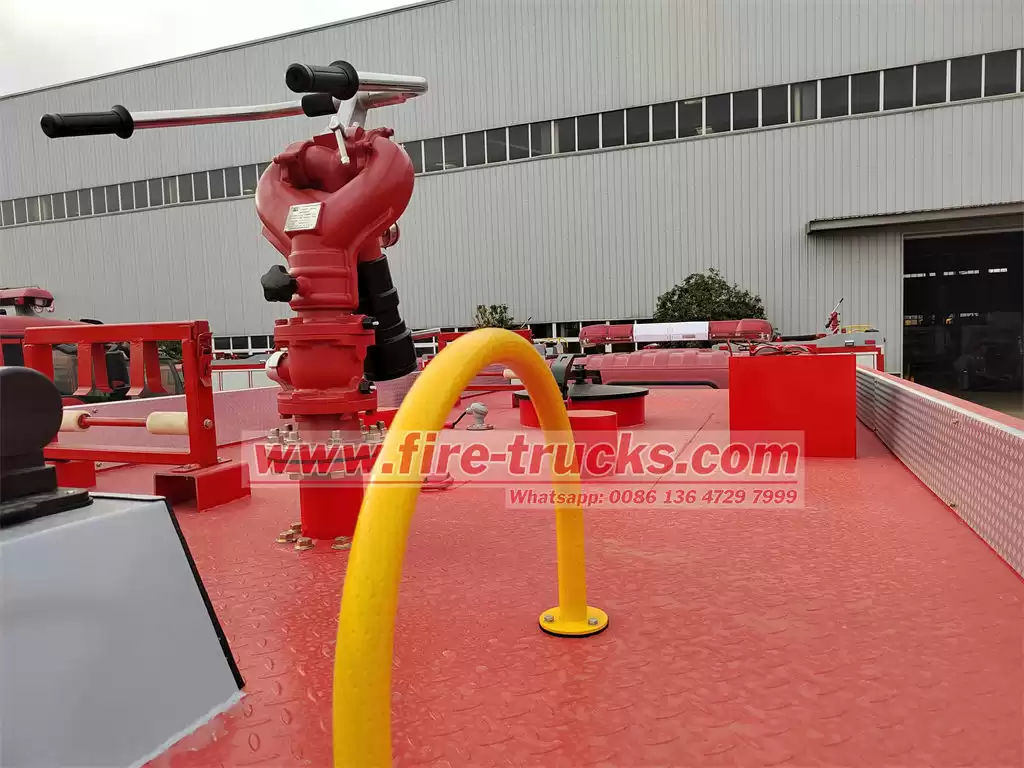

Fire Monitor System:
The PL24 fire monitor is another highlight of the vehicle. It operates within a pressure range of 0.8~1.2 MPa, with a flow rate of 24 liters per second. In terms of range, it can project water up to ≥55 meters and foam up to ≥45 meters. The fire monitor features 360-degree horizontal rotation and a pitch angle adjustment range of -30 to 80 degrees, allowing flexible responses to fire sources from different directions and ensuring precise coverage of fire points with firefighting agents.
