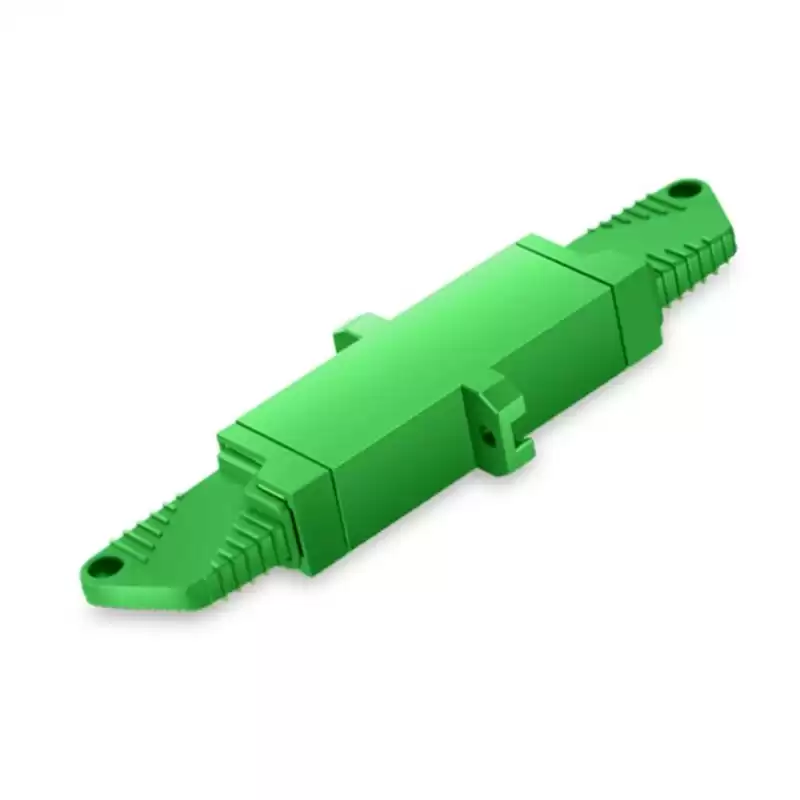

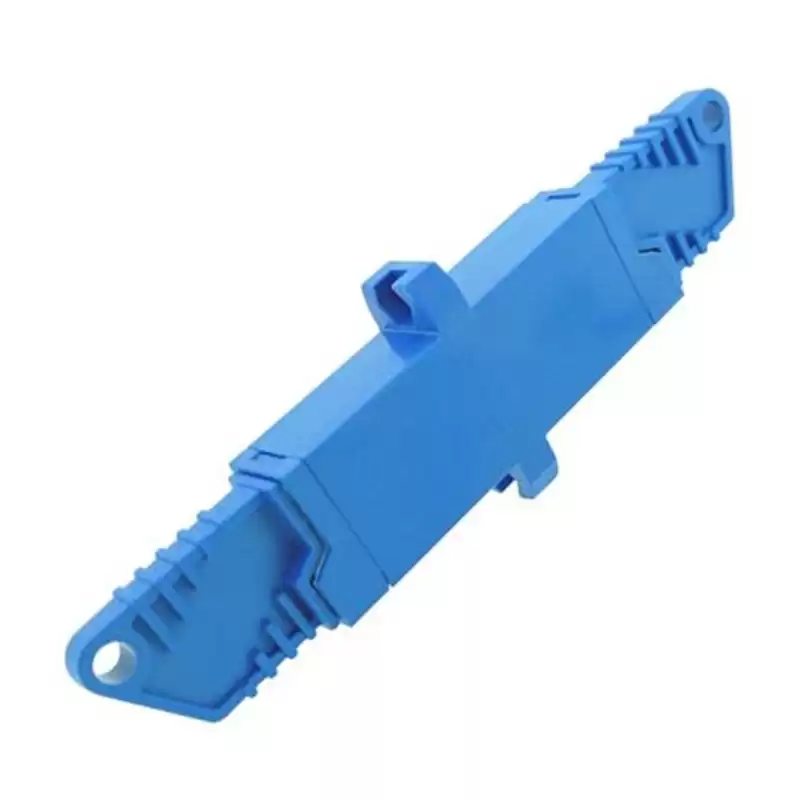

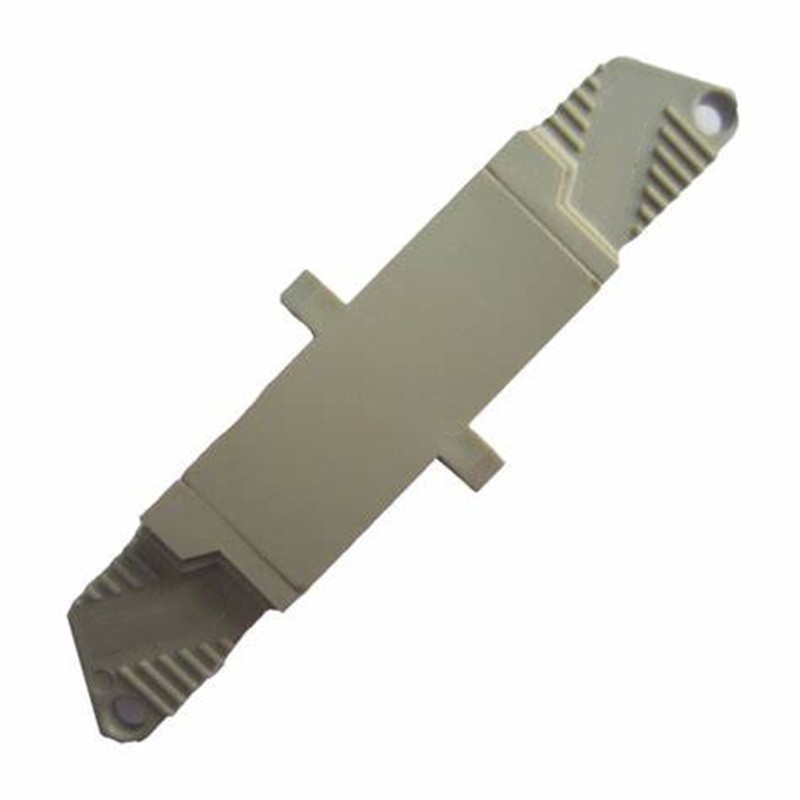

Fiber Adapter E2000 SM Multimode OM3 OM4 OM5
Fiber

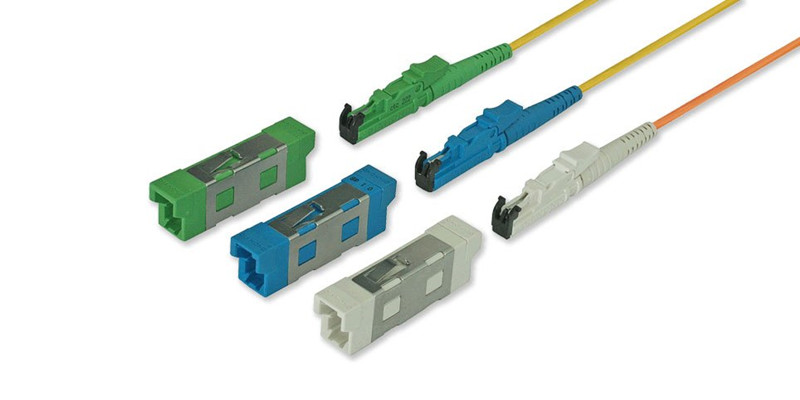

Adapter E2000 features providing the connection between E2000 patch cord with E2000 patch cord, E2000 fiber adapters are usually plastic housing in different colors.Please reach us for details.
Application:
LAN
Fiber Optic
Transmission System
CATV Network
Telecommunication
Instruments
Feature:
Compact design
Low insertion loss
Durability(Recycles):500
High Reliability
and Stability
Package:
25pcs per blister box,then put into a carton box.
Specification:
|
Parameter
|
Unit
|
SM-UPC
|
SM-APC
|
MM
|
|
Insertion Loss (Typical)
|
dB
|
≤0.2
|
≤0.2
|
≤0.2
|
|
Return Loss
|
≥50
|
≥60
|
≥35
|
|
Exchangeability
|
≤0.2
|
|
Repeatability
|
≤0.2
|
|
Durability
|
Times
|
>1000
|
|
Plug and unplug force(g/f)
|
G
|
200-600
|
|
Operating Temperature
|
°C
|
-40~75
|
|
Storage Temperature
|
-40~85
|
