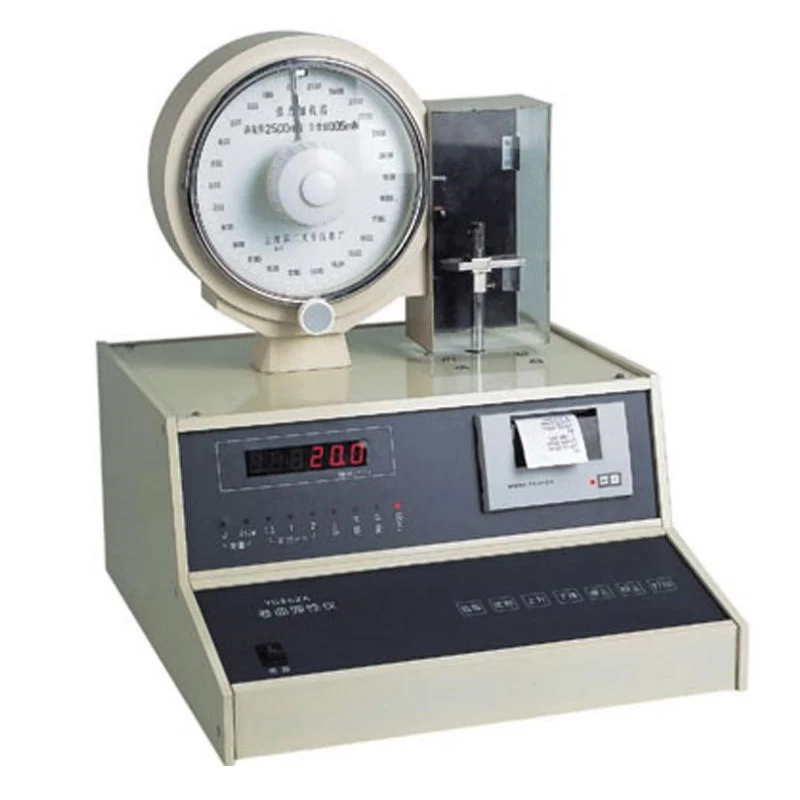

AR13-Fiber Crimp Elasticity Tester
Application Of Fiber Crimp Elasticity Tester
Fiber Crimp Elasticity Tester uses a SCM control to make the curling elasticmeter intelligentization. It is loaded by a tension loader, and the length of the displacement is counted by the pulse signal sent from the stepper motor through the single-chip microcomputer. The instrument automatically measures, displays, and prints the crimp, crimp recovery, and their statistical values for fiber deniers of 1--22 dtex.
Key Specification Of Fiber Crimp Elasticity Tester
|
Model
|
AR13 Fiber
Crimp Elasticity Tester
|
|
Tension
loader loading range
|
Loading range
(mN)
|
Score value
(mN)
|
Estimated
reading (mN)
|
|
0--5.00
|
0.01
|
0.005
|
|
0--10.00
|
0.02
|
0.01
|
|
0--25.00
|
0.05
|
0.02
|
|
Initial
length
|
20mm
|
|
Lower
holder stroke
|
≥30mm
|
|
Displacement
min.indication
|
0.01mm
|
|
Displacement
reading error
|
≤0.05mm (in the range of
10mm)
|
|
Timing
step
|
0.5,1,2min
|
|
Power
supply
|
AC220V, 50/60
HZ
|
|
Dimension
|
46×23×46cm
|
