Fiber optic onu gpon modem 10G Tx1550/Rx1490nm 80km optical communication

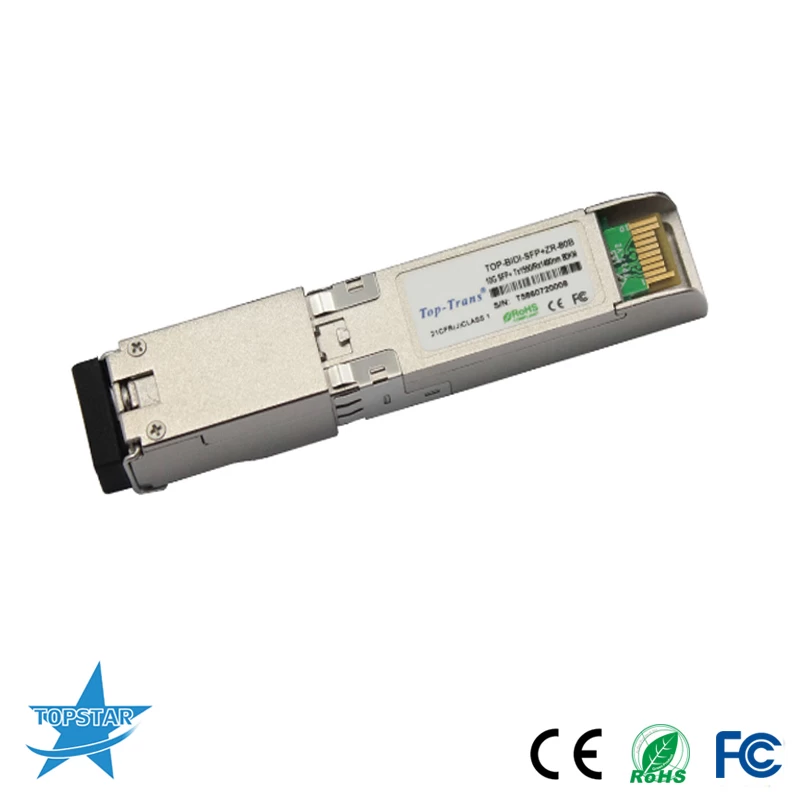

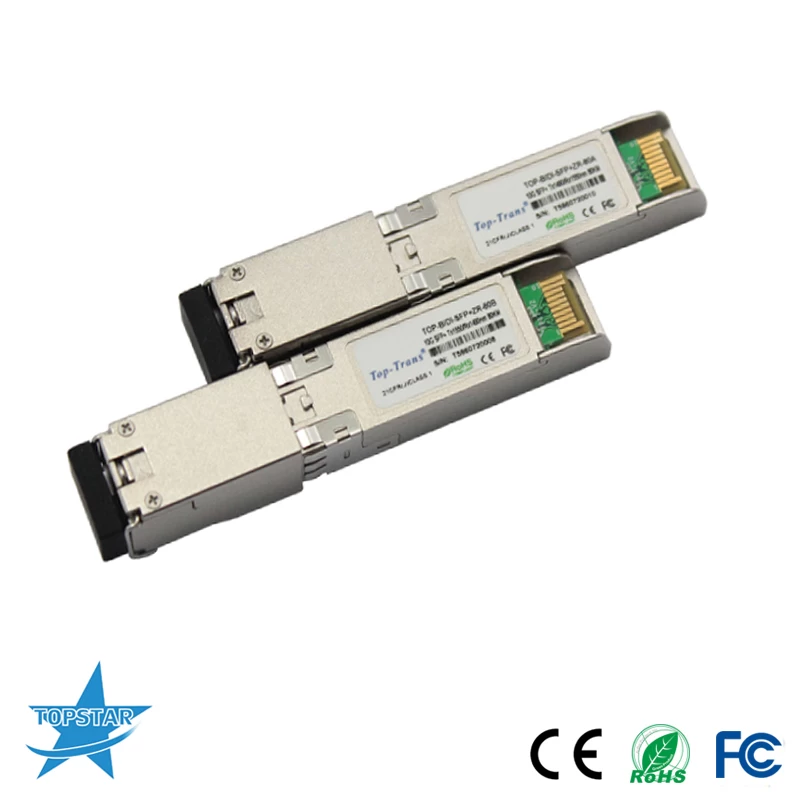

TOP-BIDI-SFP+-ZR-49/55 series single mode transceiver is small form factor pluggable module for optical data communications such as 10G Ethernet. It is with the SFP+ 20-pin connector to allow hot plug capability. The TOP-BIDI-SFP+-ZR-49/50 module is designed for single mode fiber and operates at a nominal wavelength of 1490nm or 1550nm; The transmitter section uses a EML laser, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section consists of a APD photodiode integrated with a TIA. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication.


  • Temperature0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Warranty3 Years
  • Data Rate10G
  • Distance80km
  • Wavelength1550/1490

Fiber optic onu gpon modem 10G Tx1550/Rx1490nm 80km optical communication


PRODUCTS FEATURES

Supports 9.95 to 11.3Gb/s bit rates

Simplex LC Connector

Hot pluggable SFP+ footprint

Cooled 1490nm EML transmitter, 1550nm APD receiver

Cooled 1550nm EML transmitter, 1490nm APD receiver

Applicable for 80km SMF connection

Low power consumption, < 1.5W

Digital Diagnostic Monitor Interface

Optical interface compliant to IEEE 802.3ae 10GBASE-ZR

Electrical interface compliant to SFF-8431

Operating case temperature:  Commerical:0 to 70 °C


APPLICATIONS

10.3125Gbps Ethernet

Other optical link


Quality Guarantee:

Top-trans SFP passed quality system verifications: CE, RoHS, FCC.


Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


Warranty:

If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.


Compatibility:

Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.


Shipping:

1. International Express: DHL, FedEx, UPS, TNT and EMS or others according to customers.

2. Customers specifying freight forwarders or negotiable shipping methods!

3. Delivery Time: 1 working day after received payment.


Payment Terms:
1. Payment: T/T, Western Union, MoneyGram,HSBC, as well as Cash Payment

2. MOQ: 1pcs

3. Warranty : 1 year

4. Package Informations: According to quantity ,we can provide professional package, 10/20/36 pcs in one anti-static plastic box, retail package. We can also do as your requirement.
