Description

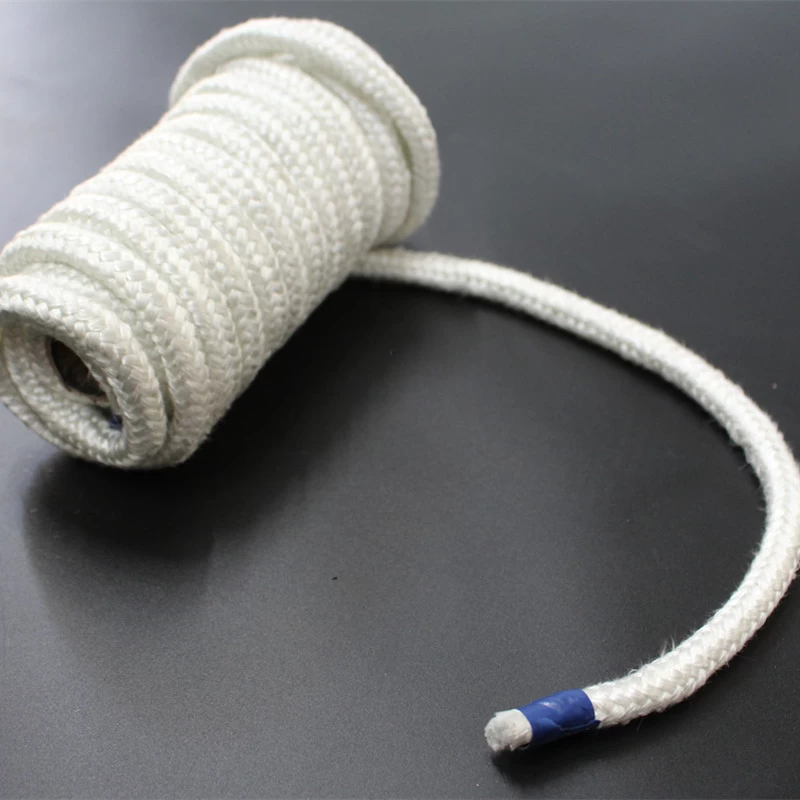

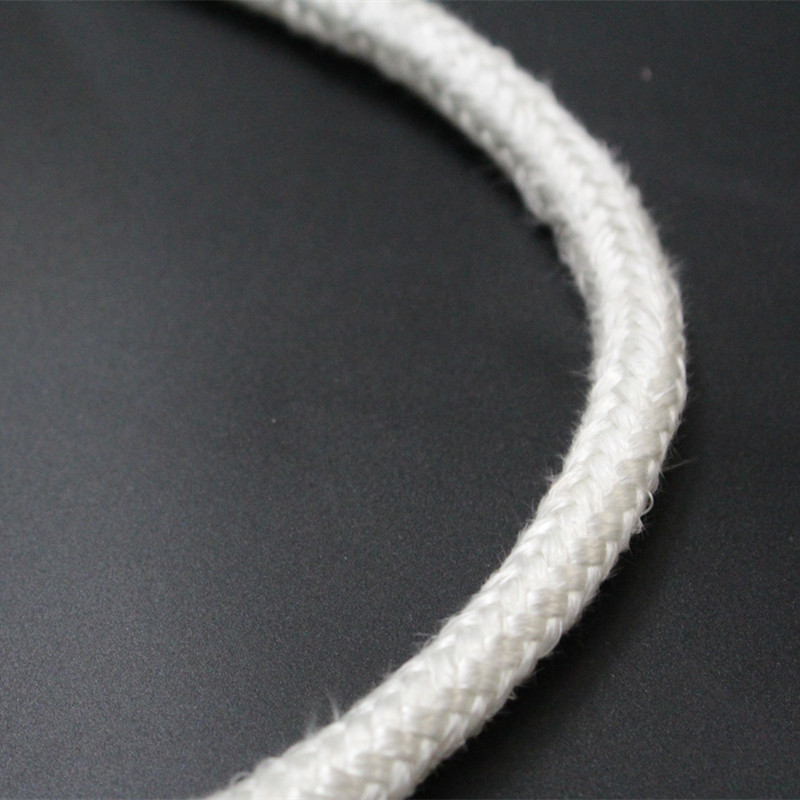

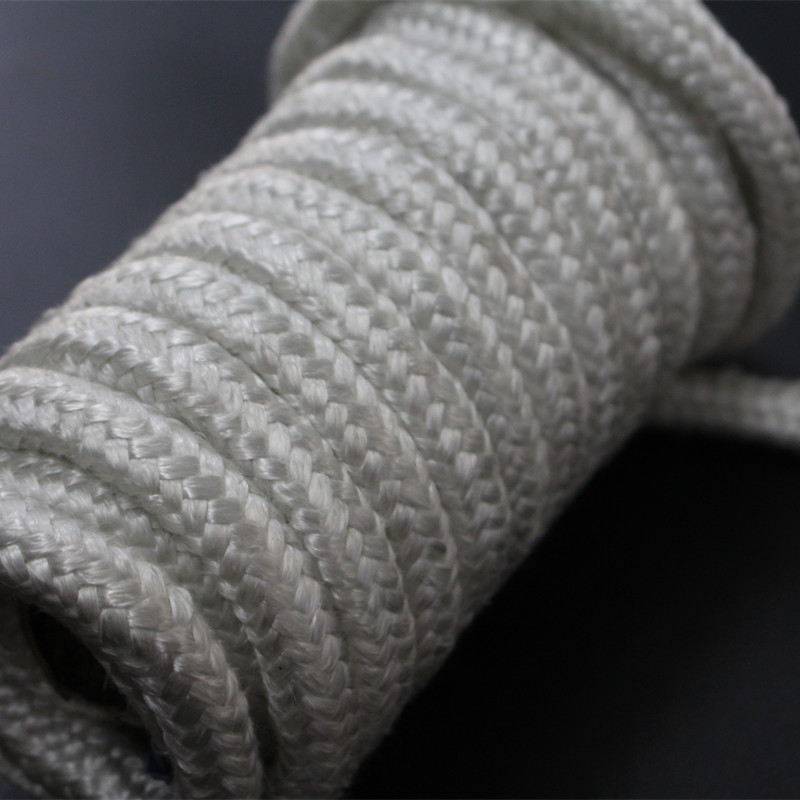

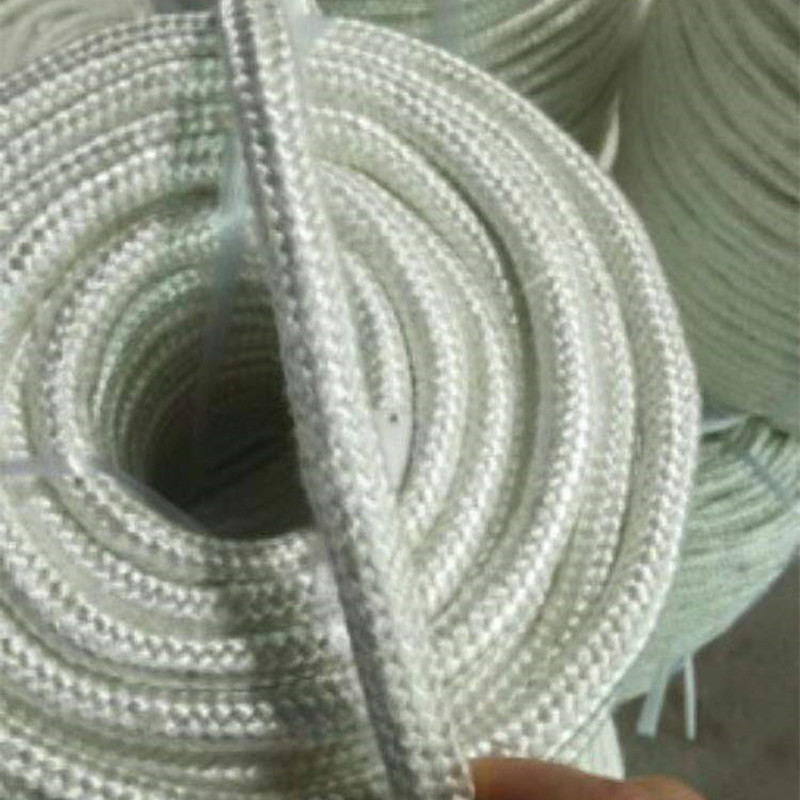

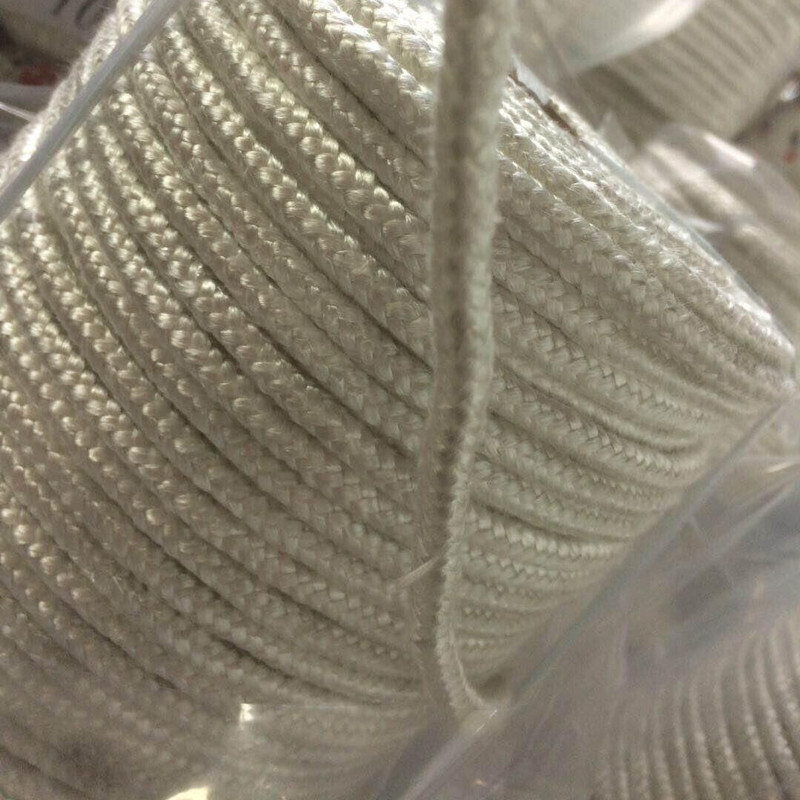

BFGR high temperature resistant Fiberglass Round Braided Rope is made by high quality fiberglass, texturized firm texture, round braid structure with a medium-high density.
Features
Firm square braid structure
Heat, spark and flame resistant, temperature rating 1000°F
Chemical resistant, pH Range 2-12
Low thermal conductivity
High tensile strength, no stretch or shrink
High dielectric strength
Application
It is suitable for filling and stopping expansion joints between boilers and masonry or brickwork, also insulation for heating pipes.
Specifications
|
DATASHEET
|
|
Part Number
|
Diameter
|
Weight
|
Meter for spool
|
|
mm
|
g/m
|
Meter
|
|
BFGR-6
|
6
|
25
|
100
|
|
BFGR-8
|
8
|
70
|
100
|
|
BFGR-10
|
10
|
95
|
100
|
|
BFGR-12
|
12
|
130
|
50
|
|
BFGR-15
|
15
|
190
|
50
|
|
BFGR-18
|
18
|
280
|
50
|
|
BFGR-20
|
20
|
330
|
50
|
|
BFGR-25
|
25
|
490
|
30
|
|
BFGR-30
|
30
|
710
|
30
|
|
BFGR-32
|
32
|
800
|
20
|
|
BFGR-35
|
35
|
960
|
20
|
|
BFGR-38
|
38
|
1080
|
15
|
|
BFGR-40
|
40
|
1200
|
15
|
|
BFGR-45
|
45
|
1510
|
10
|
|
BFGR-50
|
50
|
1965
|
10
|
|
Technical Datasheet
|
|
Material
|
Fiberglass
|
|
Working temperature
|
-40℃ - +260℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+537℃
|
|
Standard Color
|
White
|
|
MOQ
|
300 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:
Special size upon request
Special length or packing upon request.
