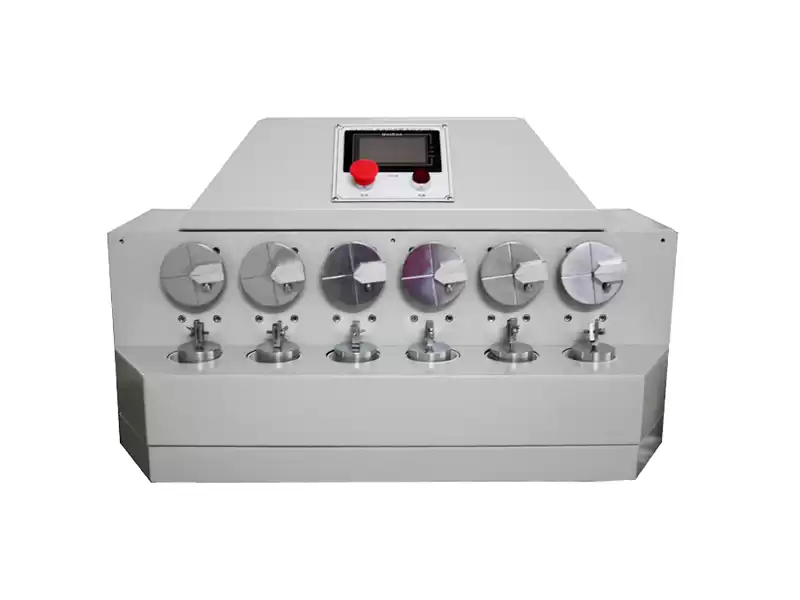

Fibreboard Flex Testing Machine

Fibreboard Flex Testing Machine is used to determine the flexing resistance of the fibreboard.

Test Standards

BS-5131-4.2, QB/T 1472, SATRA TM3

Parameters

Model AT-F3023
Test station 6
Jaw wedge angle 38°+  38°, Radius: 0.8±0.1mm
Specimen size 80X10mm   (70±10)mmX10mm
Lower clamp and weight 2.00±0.01kg
Upper clamp bending speed 60±10rpm
Upper clamp bending angle Each side 90°± 1°
Counter 6 groups
Indicated the total number of completed flex cycles during a test
Which stops automatically on failure of the test specimen
Control method Touch screen
Power supply 1 phase, AC 220V 3A
