Products Name: HAN'S FID Series High Precision Frame Inner Rotor High Torque Motor For Industrial Automation
Product Specifications
|
Frame Rotor Torque Motor FI
Series Specification
|
|
Motor Model No.： FID-xxx-x-A-1
|
002-S-A-1
|
040-P-A-1
|
|
Performance Parameters
|
Symbol
|
Unit
|
|
Working voltage
|
Vdc
|
V
|
48.0
|
200.0
|
|
Continuous torque (Tmax)
|
Tc
|
Nm
|
1.5
|
42.0
|
|
Peak torque
|
Tp
|
Nm
|
5.0
|
58.0
|
|
Vmax,Tc@Vbus=310Vdc
|
Nmax,Tc
|
Rpm
|
300.0
|
120.0
|
|
Vmax,Tp@Vbus=310Vdc
|
Nmax,Tp
|
Rpm
|
120.0
|
110.0
|
|
Vmax,0@Vbus=310Vdc
|
Nmax,0
|
Rpm
|
380.0
|
130.0
|
|
Encoder (Incremental 1Vpp Sine
Wave)
|
line number/270°
|
P/rev
|
5870.0
|
47200.0
|
|
Repeat Accuracy
|
|
arc sec
|
±1
|
±1.5
|
|
Positioning Accuracy
|
|
arc sec
|
±30
|
±30
|
|
Continuous current (Tmax)
|
Ic
|
Arms
|
1.5
|
2.5
|
|
Peak Current (1s)
|
Ip
|
Arms
|
4.7
|
3.5
|
|
Torque Constant (25℃,±5%）
|
Kt
|
Nm/Arms
|
1.0
|
16.8
|
|
Electromotive constant (25℃,±5%）
|
Ke
|
Vrms/rad/s
|
0.3
|
5.6
|
|
Resistance (within 25℃±5℃）
|
R
|
Ω(p-p)
|
4.6
|
5.0
|
|
Inductance (within 25℃±5℃）
|
L
|
mH(p-p)
|
3.5
|
22.0
|
|
Pole pairs
|
p
|
|
8
|
33
|
|
Max.coil temperature
|
Tmax
|
℃
|
120
|
120
|
|
Motor Mass
|
|
KG
|
3.5
|
23.0
|
|
Mover Mass
|
Mr
|
KG
|
0.70
|
6.70
|
|
Rotor Moment of Inertia
|
Jm
|
Kg*m2
|
0.0011
|
0.1430
|
|
Axial Runout
|
|
mm
|
0.005
|
0.010
|
|
Radial Runout
|
|
mm
|
0.005
|
0.010
|
|
Minimum bending radius of cable
|
R
|
mm
|
37.50
|
37.50
|
|
Working voltage
|
Vdc
|
V
|
48.0
|
200.0
|
|
Continuous torque (Tmax)
|
Tc
|
Nm
|
1.5
|
42.0
|

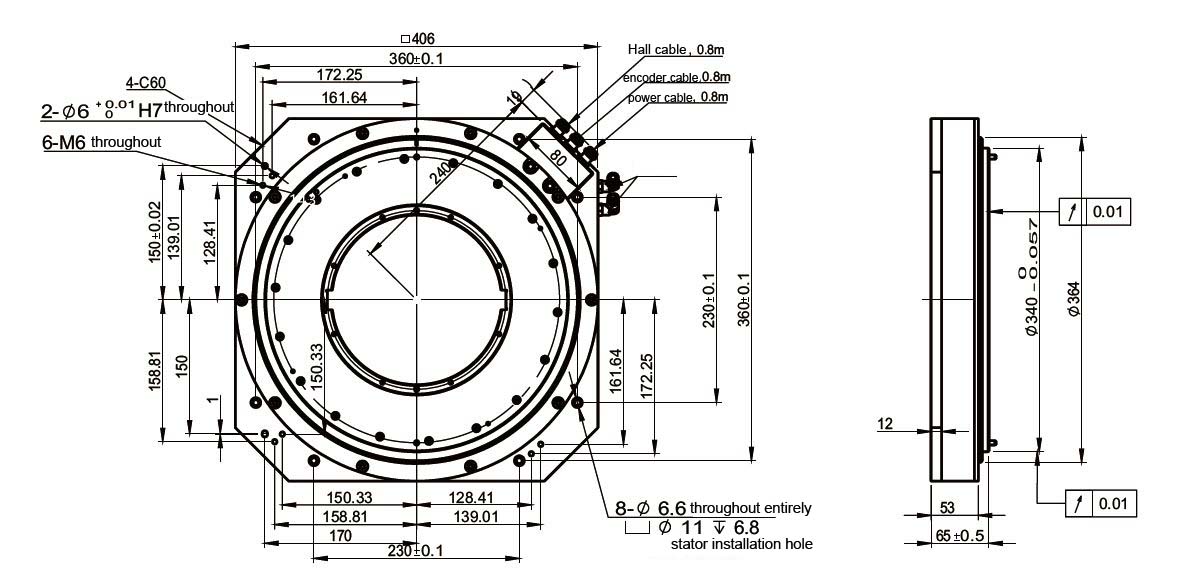

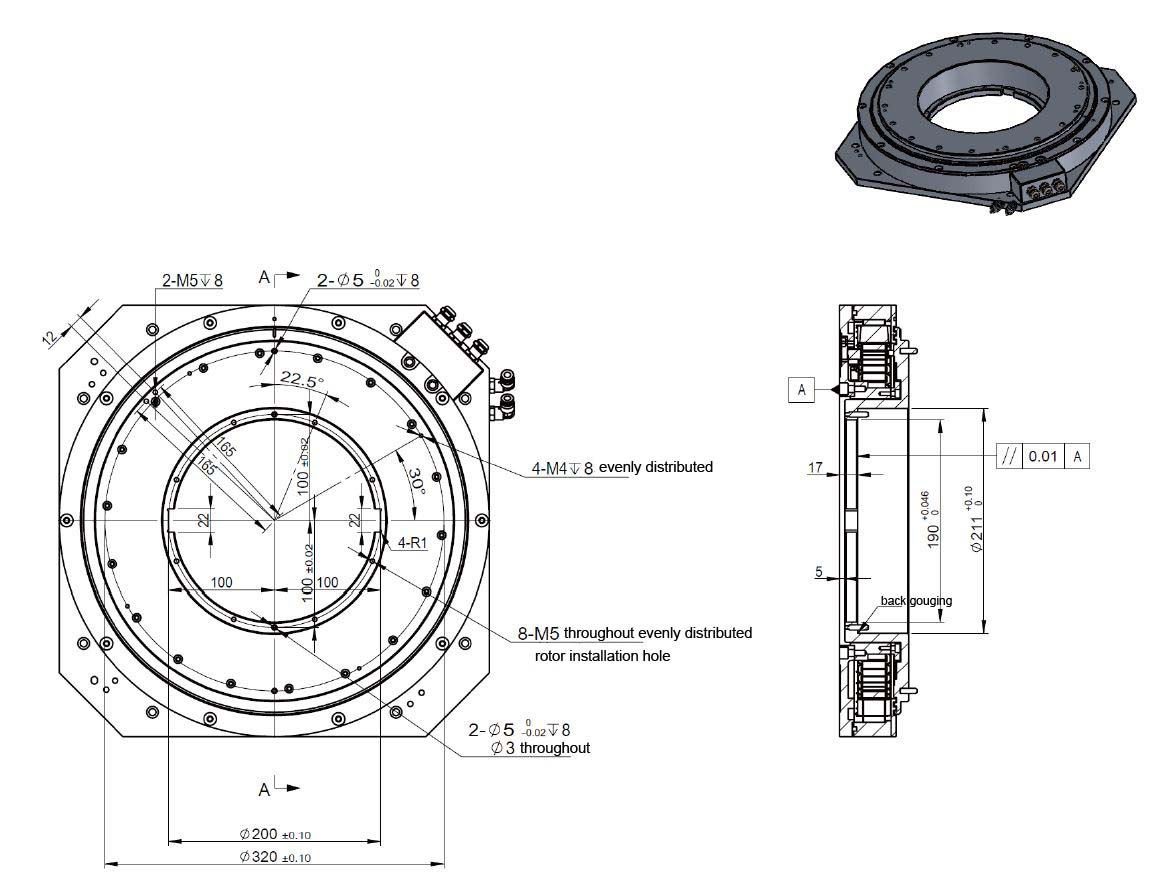

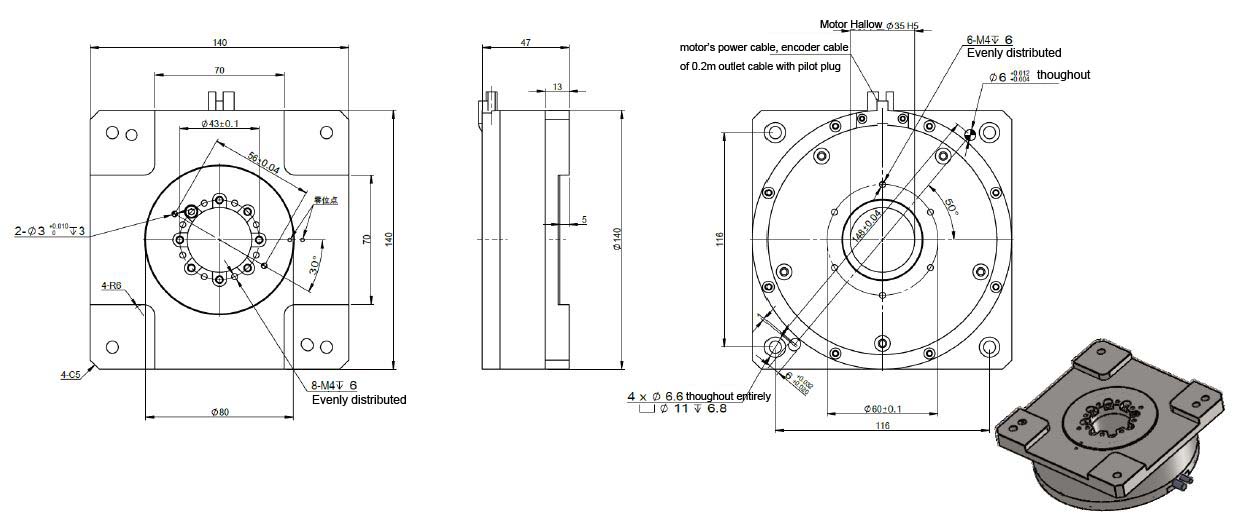

Dimension

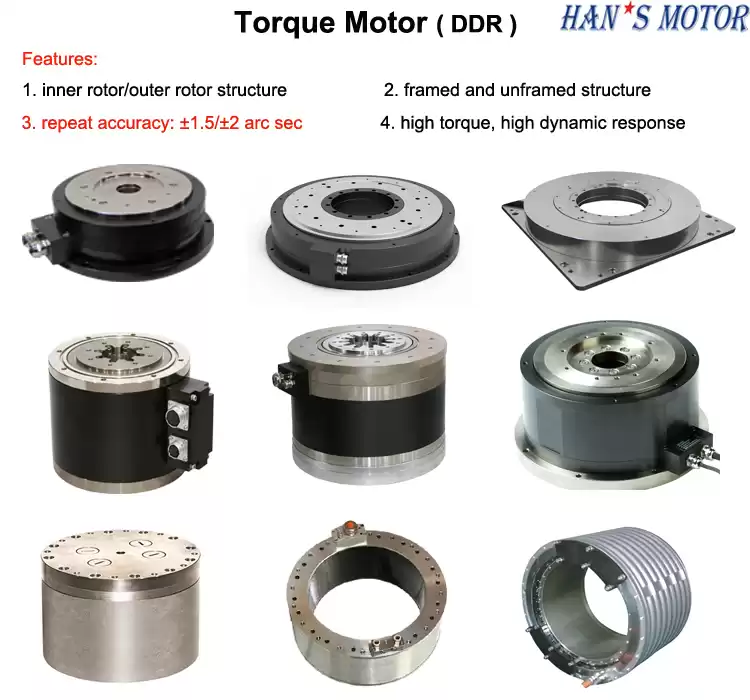

Characteristics:
1. Supply high torque at low speeds, increased rigidity and greater
accuracy
2. Standard Inner rotor/outer rotor structure
3. HAN'S MOTOR direct drive torque motors designed with the aim of ensuring excellent performance with effective-cost can be used in many applications--CNC high speed machining center, Automatic CNC cutting machine, Precision CNC grinder, Heavy gantry machining center, Precision milling machine, Precision CNC lathe machine etc.
4. Using high energy permanent magnets to generate high torque for functional safety,smooth motion even at low speeds with stable performance (low velocity ripple)
5. Easy to install with precise installation dimensions,extremely easy to service and low cost
6. high level of availability and no elasticity in the power transmission system

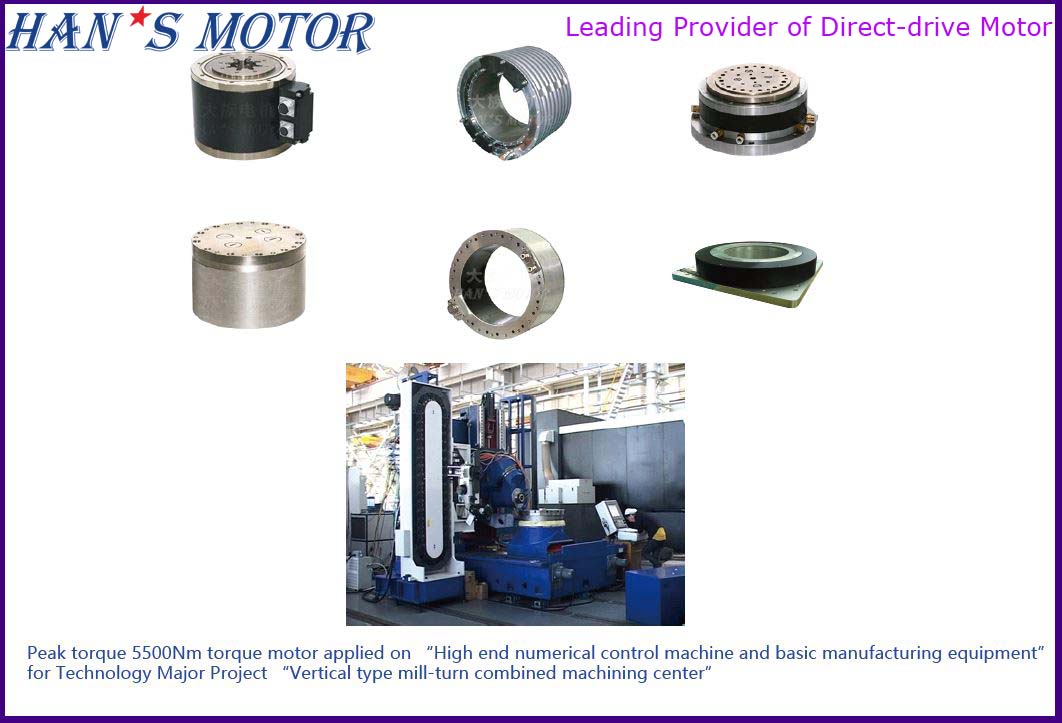

Why choose us?
Q1: Are you factory or trade company?
A1: Han's Motor focus on linear motors, torque motors, motor modules, motion stages, AC servo systems, variable frequency drives,and so on.
Which has specialized in direct drive system in the domestic research, development, promotion, application for 16 years.
Q2: Guarantee period of HAN'S MOTOR products?
A2: One year warranty and prompt technical support.
Q3: Can you offer customizable service?
A3: We can make bespoke models according to your requirement and design.

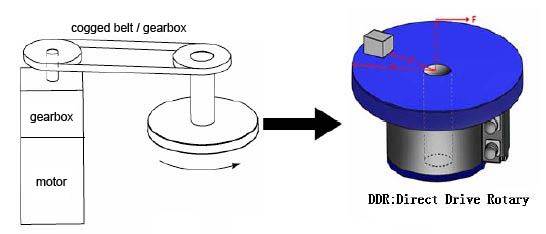

Q4: What's speciality of HAN'S MOTOR DDR Torque Motors?
A4: High overload capability/peak torque and available with hollow shaft.
Production Line & Quality Test.:

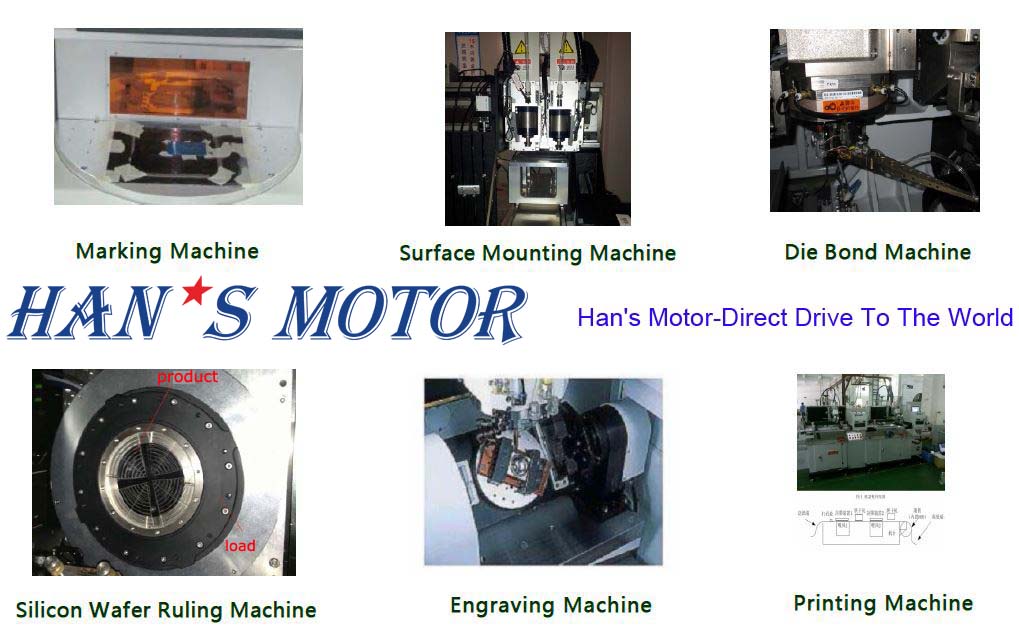

Applications:
Compact, precise, smooth motion and fully-integrated motor with improved dynamic performance .
Widely used for high precision applications and industrial automations.:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL
ect.)
Leading time: According to the order quantity, 10
days for the small order and 20 days for the bulk order
