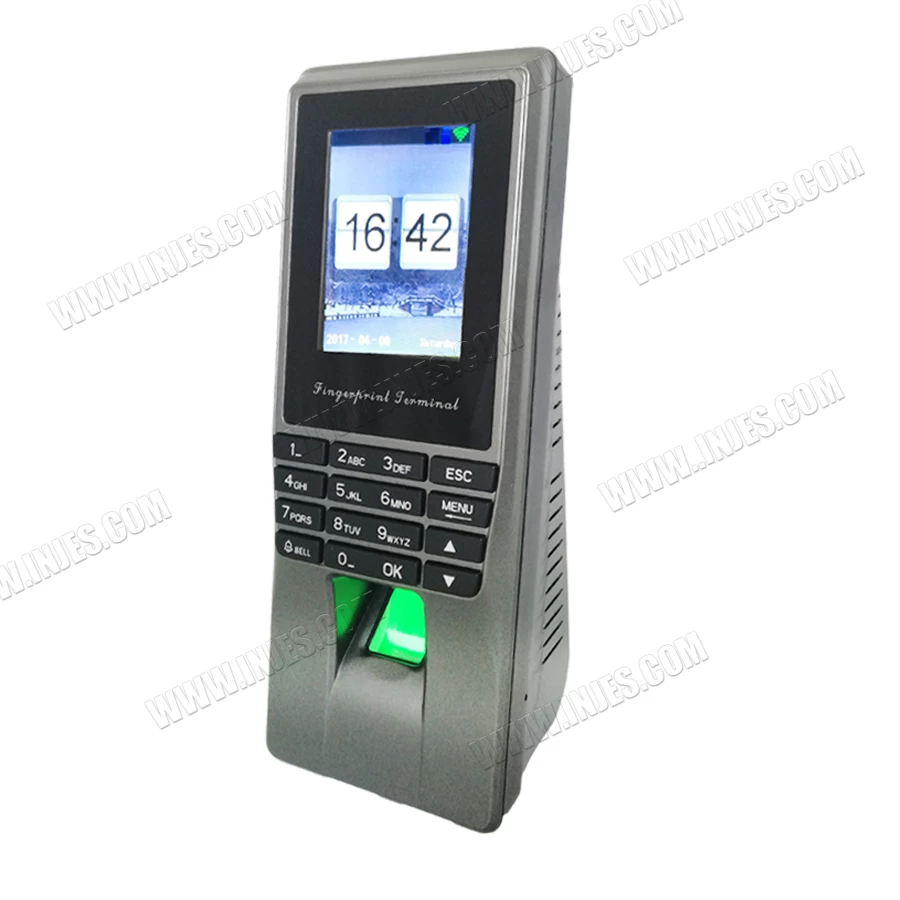

Fingerprint Swipe Card Access Control Door Entry Systems for Building Security

MYM8



Product Name: Fingerprint Swipe Card Access Control Door Entry Systems for Building Security


Description:

The multi-function Web Based Fingerprint Swipe Card Access Control Door Entry Systems MYM8 unit combines the security of the INJES optical fingerprint recognition technologies with the power of a full blown, Linux based platform. With quick and accurate fingerprint verification, supports 1:1 and 1:N identification. And audible voice prompts guiding users during verification process.
INJES MYM8 Building Security Fingerprint Entry RFID Access Control System can store up to 3000 fingerprint templates and 20,000 transactions. The data can be backed up to a USB flash drive and can also be transferred to another reader in the absence of computer connectivity. As well, data sharing also can be achieved via INJESPRO 2.0 access control software.
Biometric Rfid Proximity Door Entry Access Control MYM8’s effective access management protects an enterprise by minimising the dangers and losses associated with unauthorised access. It also creates an environment in which more accurate payroll can be achieved.

Features:

.Standard Linux System
.Elegant Vertical shape design
.2.8 inch TFT colorfuly display
.Support WIFI function optional
.Support multi-languages firmware
.USB and TCP/IP ethernet communication
.With 3,000 fingerprint and 200,000 transactions
.Advanced access control Wiegand In, Out port
.Free SDK clients' software integration and development
.Accept firmware or software customization on basis of clients’ requirements

Specifications:

Fingerprint Capacity

3000 (Optional 5000)

Transaction Capacity

200,000

Hardware Platform

Atmel 9G25

Sensor

Scratch-proof Optical Sensor

Display

2.8 inch TFT Color LCD Screen

Communication

TCP/IP, USB Disk, WIFI (Optional)

Standard Functions

Fingerprint, ID card,password,3rd party electric lock, door sensor,
exit button, alarm, Door Bell, Wiegand input, Wiegand output

Optional Functions

MF card, Power supply,WIFI

FAR

0.0001%

FRR

0.01%

Speed

 <1s

Verification mode

1:1,1:N

Power Supply

12V 3A

Operating Temperature

0 °C- 45 °C

Operating Humidity

20%-80%

Dimension

L198 *W78 *H62 (mm)

Gross Weight

1.2 KG

Introduction:

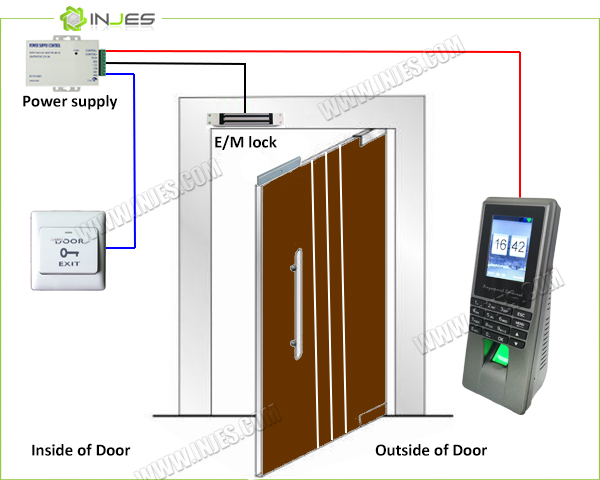

Building Security Access Control Systems

Configuration:

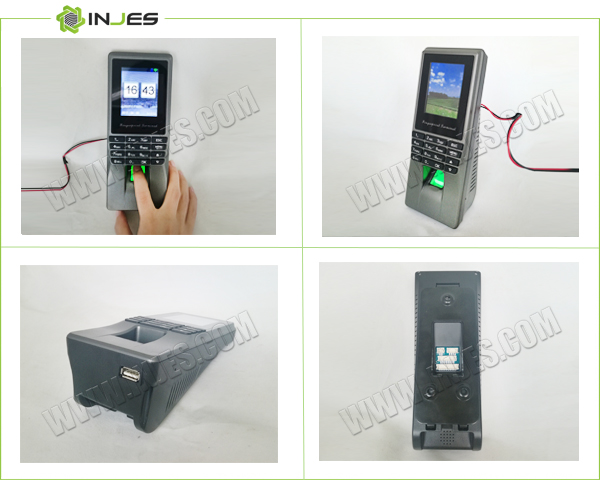

Fingerprint Door Entry Systems

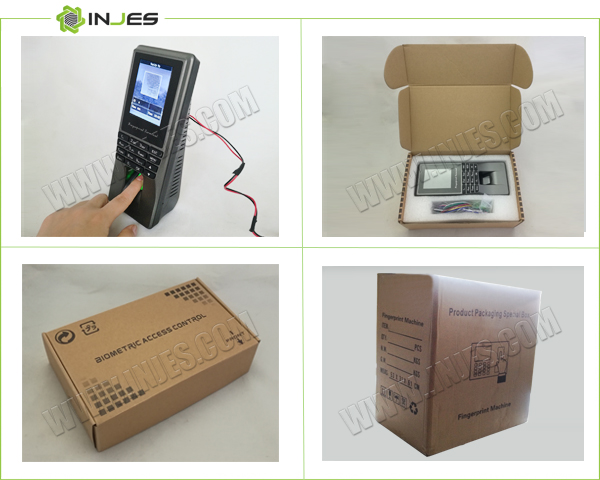

Package:

Fingerprint Swipe Card Access Control
