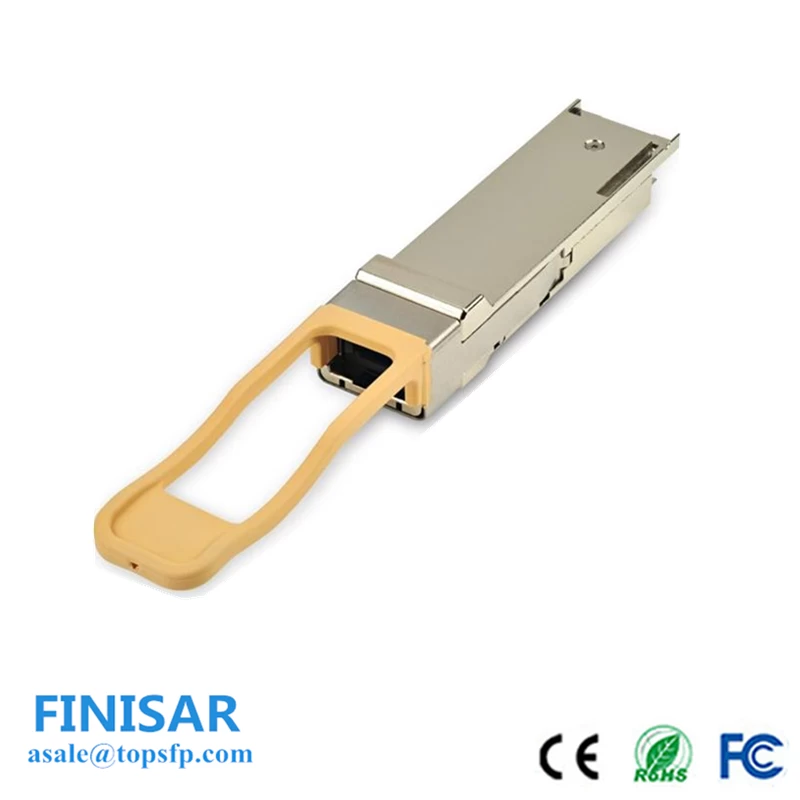

Finisar FTL410QD3C 40BASE-SR4/10GBASE-SR 300m QSFP+ AOC Gen3

Finisar’s FTL410QD3C QSFP+ transceiver modules are designed for use in 40 Gigabit per second links over parallel multimode fiber, including breakout to four 10 Gigabit per second links. They are compliant with the QSFP+ MSA1,2 and IEEE 802.3ba 40GBASE-SR43 and compatible with IEEE 802.3ae 10GBASE-SR4. The optical transceiver is compliant per the RoHS Directive 2011/65/EU5. See Finisar Application Note AN-2038 for more details6.





  • Wavelength850nm
  • Distance400m
  • Data Rate40G
  • Temperature0℃~70℃
  • Warranty1 Year
  • ConnectorMPO

Finisar FTL410QD3C 40BASE-SR4/10GBASE-SR 300m QSFP+ AOC Gen3


Features

Four-channel full-duplex transceiver module

Hot Pluggable QSFP+ form factor

Maximum link length of 300m on OM3 Multimode Fiber (MMF) and 400m on OM4 MMF

Multirate capability: 1.06Gb/s to 10.5Gb/s per channel

Unretimed XLPPI electrical interface

Max power dissipation: <1.2W

Reliable VCSEL array technology

Built-in digital diagnostic functions, including Tx and Rx power monitoring

Commercial operating case temperature range: 0ºC to 70ºC

Single 1x12 MPO receptacle

RoHS-6 Compliant


Applications

40GBASE-SR4 40G Ethernet

Breakout to 10GBASE-SR Ethernet

Proprietary interconnections
