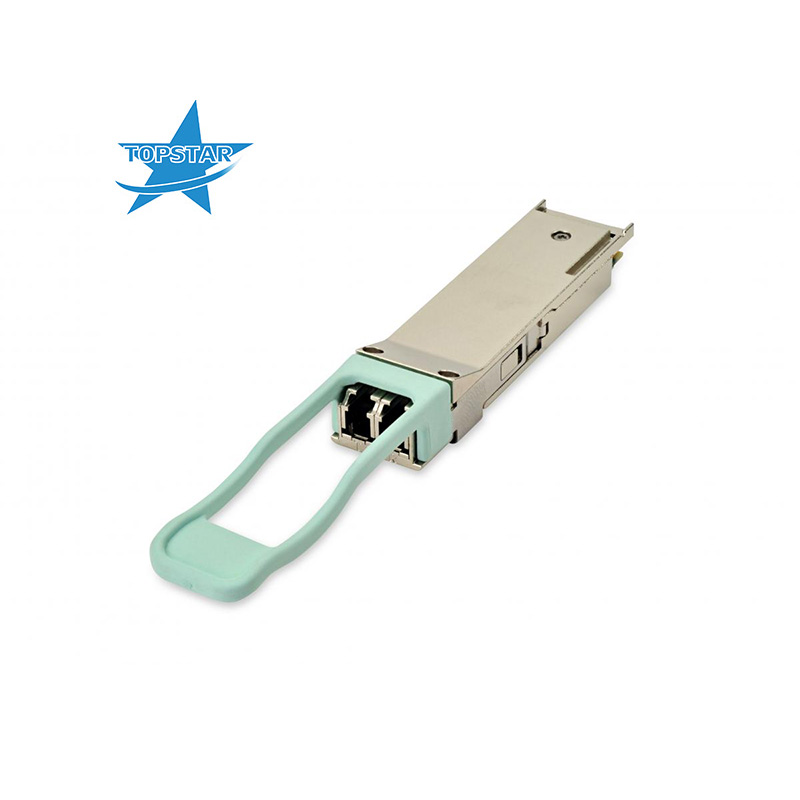

Finisar FTL4C2QE2C 40G Ethernet LM4 160m Duplex Multimode Gen2 QSFP+ Optical Transceiver

Form Factor:

QSFP+

Finisar's FTL4C2QE2C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over duplex multimode fiber. They are compliant with the QSFP+ MSA and represent a multimode adaptation of IEEE 802.3ba 40GBASE-LR4 referred to as LM4. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.

Warranty3 Years
ConditionNew
Temperature0-70
Data Rate41.2 Gb/s
Distance160m
Wavelength1310nm
ConnectorN/A

Facebook Twitter Pinterest LinkedIn 分享

Description

Product Description:

Distance:160 m
Data Rate (max):41.2 Gb/s
Protocol:40G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:N/A
Transmitter:4x CWDM DFB Laser
Receiver:PIN
Voltage Supply:3.3
Connector:N/A
Wavelength:1310nm Band

Product Feature:

Hot-pluggable QSFP+ form factor
Operates over duplex multimode fiber with dual LC receptacles
Supports 41.2 Gb/s aggregate bit rate
Power dissipation <3.5W
Commercial operating case temperature range 0°C to 70°C
Maximum link length of 140m on OM3 and 160m on OM4
Uncooled 4x10Gb/s CWDM transmitter
XLPPI electrical interface
Built-in digital diagnostic functions, including Tx/Rx power monitoring
RoHS-6 compliant
