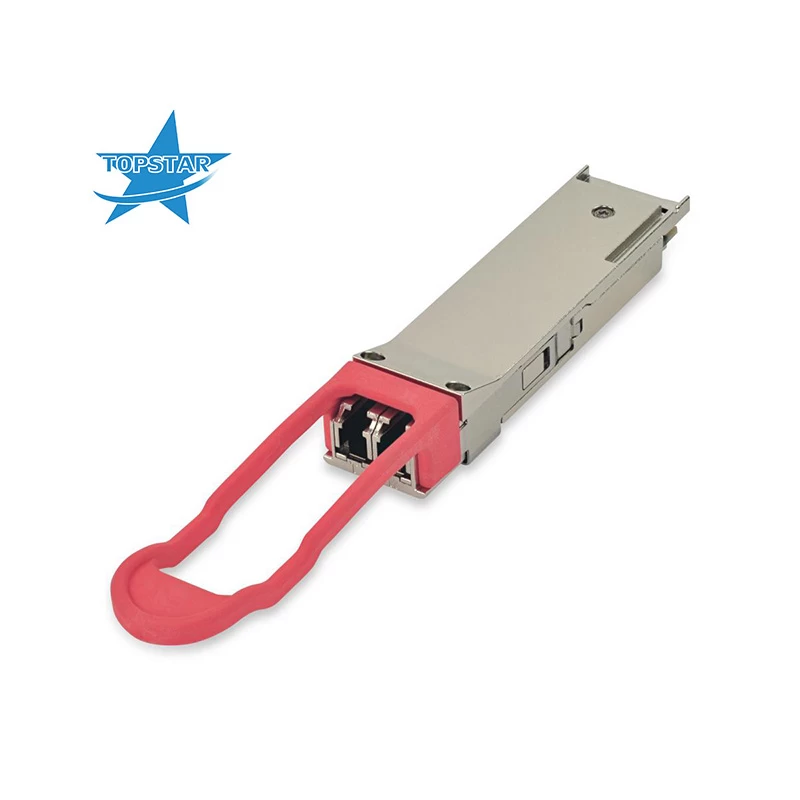

Finisar FTL4E1QE1C 40GBASE-ER4 Multirate 40km QSFP+ Optical Transceiver

Form Factor:

QSFP+

Finisar’s FTL4E1QE1C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3bm 40GBASE-ER4. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

Warranty1 Year
ConditionNew
Temperature0-70
Data Rate41.2 Gb/s
Distance40 km
Wavelength1310nm
ConnectorLC

Facebook Twitter Pinterest LinkedIn 分享

Description

Product Description：

Distance:40 km
Data Rate (max):41.2 Gb/s
Protocol:OTN OTU3 Compatible 40G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:4x DFB Laser
Receiver:APD
Voltage Supply:3.3
Connector:LC
Wavelength:1310nm Band

Product Feature；

Hot-pluggable QSFP+ form factor
Supports 41.3 Gb/s aggregate bit rates
Power dissipation < 3.5W
18.5 dB link insertion loss budget
RoHS-6 compliant
Commercial case temperature range 0°C to 70°C
Single 3.3V power supply
Maximum link length of 40km on Single Mode Fiber (SMF)
Uncooled 4x10Gb/s CWDM transmitter
XLPPI electrical interface
Duplex LC receptacles
Built-in digital diagnostic functions, including Tx/Rx power monitoring
