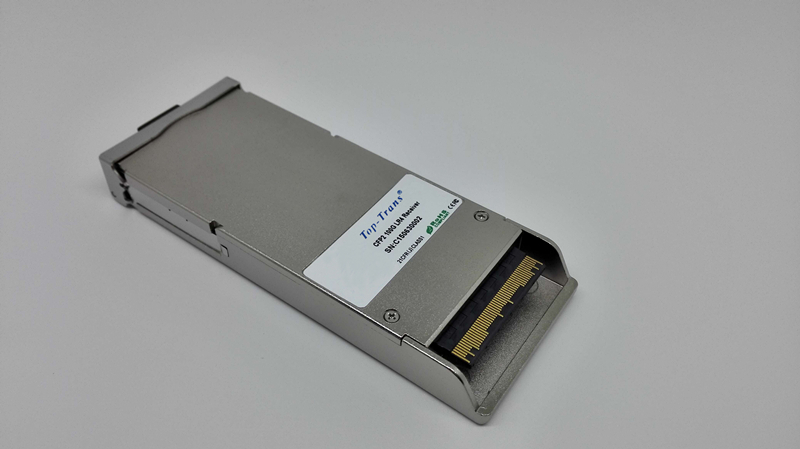

Finisar FTLC1121RDNL Compatible 100GBASE-LR4 LAN-WDM 10km CFP2 100G MSA

Topstar's CFP2 transceivers are designed for use in 100 Gigabit Ethernet links over 10km single module fiber, and it compliant to the CFP MSA CFP2 HW Specification and IEEE 802.3ba 100GBASE-LR4. Digital diagnostics are available via MDIO as specified in the CFP MSA Management Interface Specification.


  • WavelengthCWDM
  • Distance10km
  • Data Rate100G
  • Temperature0℃~70℃
  • Warranty3 Years
  • ConnectorDuplex LC

Finisar FTLC1121RDNL Compatible 100GBASE-LR4 LAN-WDM 10km CFP2 100G MSA

Finisar FTLC1121RDNL CFP2 10KM


Features


Hot Pluggable CFP2 MSA package

IEEE 802.3ba 100GBASE-LR4 compliant

CFP-MSA-CFP2-HW-Specification compliant

Up to 10km for G.652 SMF

Receiver: 4 x 25Gb/s PIN ROSA

Transmitter: 4 x 25Gb/s WDM TOSA (1295.56,1300.05,1304.58,1309.14nm)

4 x 28G Electrical Serial Interface (CEI-28G-VSR)

MDIO management interface with Digital Diagnostic

+3.3V power supply

Power consumption less than 9W

Compact size: 107.5 x 41.5 x 12.4 mm

Operating case temperature: 0 to +70 ℃

Duplex LC Receptacle

ROHs-6 compliant



Applications


100GE Routers and Switches

100G DWDM/OTN

100G Network Security And Monitoring



Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.



Compatibility:

Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.


OEM& ODM:

Customized label and package , OEM and ODM service offered.
