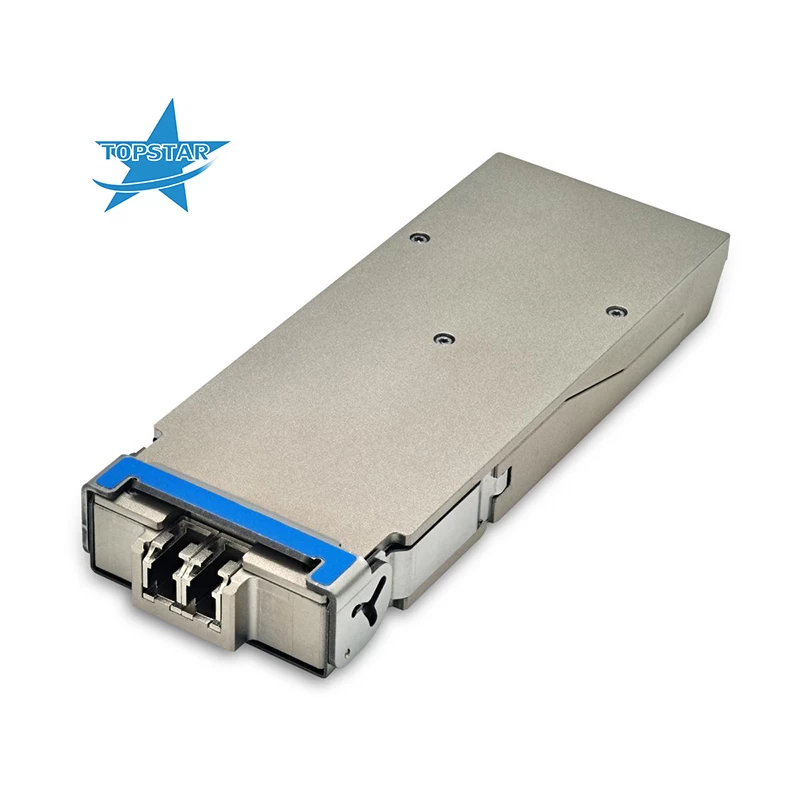

Finisar FTLC1122RDNL 100GBASE-LR4 10km Gen2 CFP2 Optical Transceiver

Form Factor:

CFP2

Finisar’s FTLC1122RDNL second-generation 100G CFP2 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber. They are compliant with the CFP MSA and IEEE 802.3ba 100GBASE-LR4 specifications. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP MSA and Finisar Application Note AN-2118. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

Warranty3 Years
ConditionNew
Temperature0-75
Data Rate103.1 Gb/s
Distance10km
Wavelength1310nm
ConnectorLC

Facebook Twitter Pinterest LinkedIn 分享

Description

Product Description:

Distance:10 km
Data Rate (max):103.1 Gb/s
Protocol:100G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):75
Diagnostics:Digital
Transmitter:4x LWDM DFB Laser
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:1310nm Band

Product Feature：

Hot-pluggable CFP2 form factor
Supports 103.1Gb/s aggregate bit rate
Power dissipation < 5W
RoHS-6 compliant (lead-free)
Commercial case temperature range of 0°C to 75°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
4x26Gb/s DFB-based LAN-WDM transmitter
4x26G electrical interface
Duplex LC receptacles
MDIO management interface
