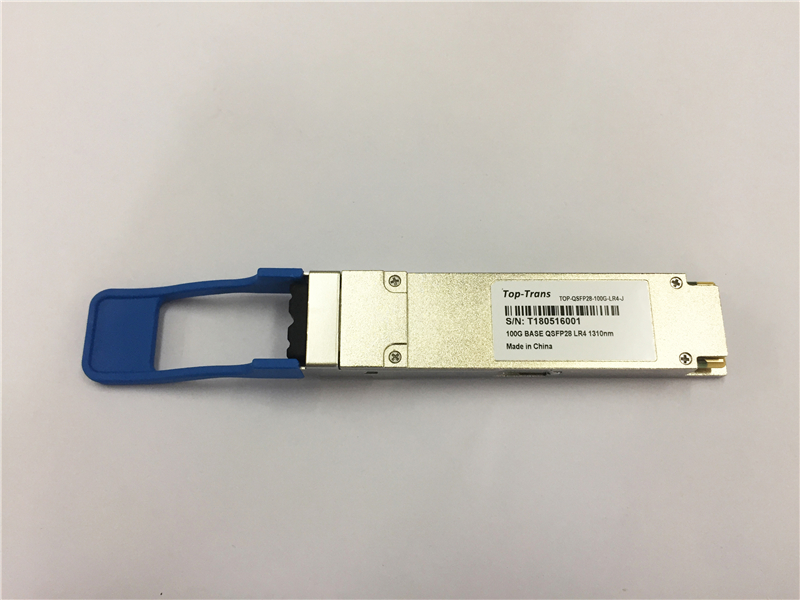

Finisar FTLC1151RDPL compatible 100GBASE-LR4 10km 100G QSFP28 CWDM4 Optical Transceiver

This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.


  • Warranty3 Years
  • Condition
  • Temperature0℃~70℃
  • Data Rate100G
  • Distance10km
  • WavelengthCWDM
  • ConnectorLC

Finisar FTLC1151RDPL compatible 100GBASE-LR4 10km 100G QSFP28 CWDM4 Optical Transceiver

Finisar FTLC1151RDPL QSFP28 CWDM4 10km


Features

Hot pluggable QSFP28 MSA form factor

Compliant to IEEE 802.3ba 100GBASE-LR4

Up to 10km reach for G.652 SMF

Single +3.3V power supply

Operating case temperature: 0~70℃

Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 304.58, 1309.14nm)

Receiver: 4x25Gb/s PIN ROSA

4x28G Electrical Serial Interface (CEI-28G-VSR)

Maximum power consumption 4.0W

Duplex LC receptacle

RoHS-6 compliant


Applications

100GBASE-LR4 Ethernet Links

Infiniband QDR and DDR interconnects

Client-side 100G Telecom connections


Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.



Compatibility:

Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.


OEM& ODM:

Customized label and package , OEM and ODM service offered.
