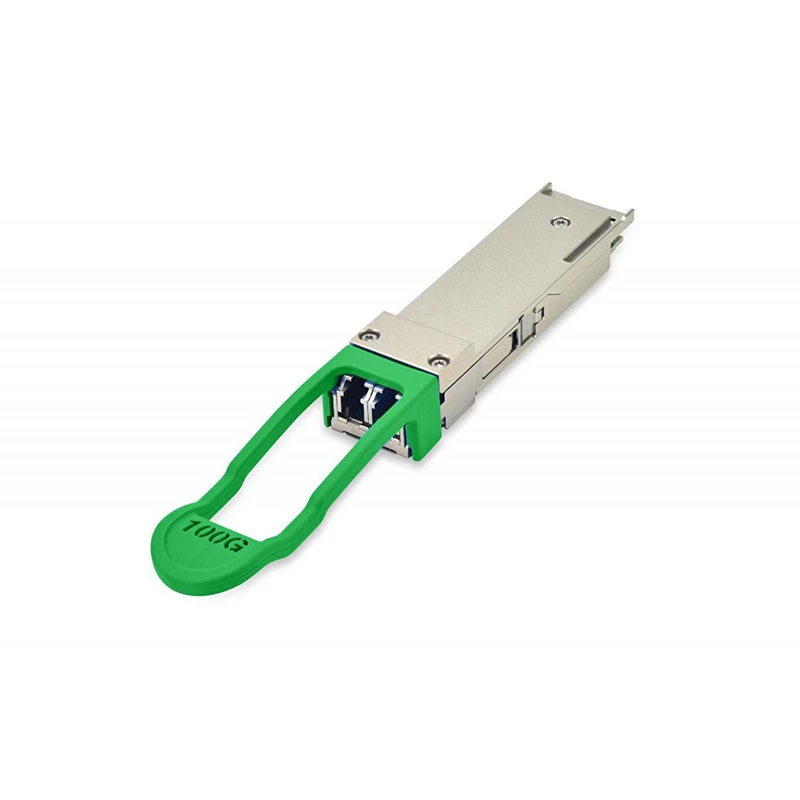

Finisar FTLC1155RGPL 100G QSFP28 SR4 CWDM4 2km Gen2 QSFP28 Optical Transceiver

Description：

Finisar’s FTLC1155RGPL QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the QSFP28 MSA, CWDM4 MSA, and portions of IEEE P802.3bm. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Notes AN-2153 and AN-2154.

Warranty1 Year
ConditionNew
Temperature0-70
Data Rate100G
Distance2km
WavelengthCWDM
ConnectorLC

Facebook Twitter Pinterest LinkedIn 分享

Description

Product Feature:

Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rate
Power dissipation < 3.5W
RoHS compliant
Commercial case temperature range of 0°C to +70°C
Adaptive CTLE
Single 3.3V power supply
Loss budget of 5 dB on up to 2km of Single Mode Fiber (SMF) [with KR4 FEC]
4x25Gb/s CWDM transmitter
4x25G retimed electrical interface
Duplex LC receptacles
I2C management interface
