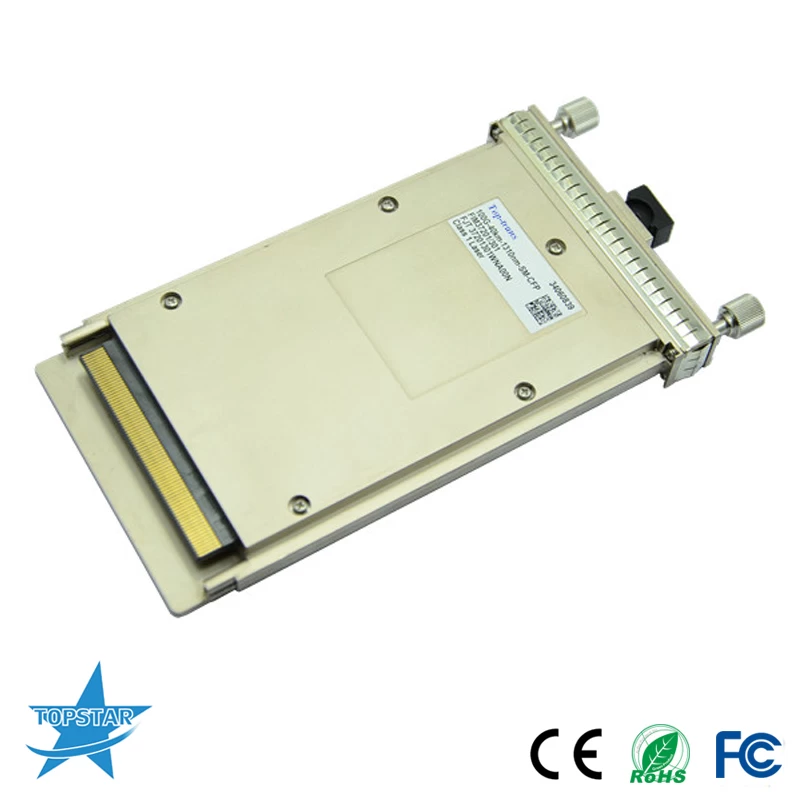

Finisar FTLC1183RDNx Compatible 100GBASE-LR4 10km Gen2 100G CFP Types OTN


The second-generation 100GE CFP optical transceiver modules are designed for use in 100 Gigabit Ethernet links over single mode fiber. They are compliant with the CFP MSA and IEEE 802.3ba 100GBASE-LR4. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP MSA and Finisar Application Note AN-2080. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.  See Finisar Application Note AN-2038 for more details.



  • WavelengthCWDM
  • Distance10km
  • Data Rate100G
  • Temperature0℃~70℃
  • Warranty3 Years
  • ConnectorLC

Finisar FTLC1183RDNx Compatible 100GBASE-LR4 10km Gen2 100G CFP Types OTN


Features

Hot Pluggable CFP MSA package

IEEE 802.3ba 100GBASE-LR4 compliant

ITU-T 4I1-9D1F compliant

CFP-MSA-HW-Spec-rev1-40 compliant

Up to 10km for G.652 SMF

Receiver: 4-lane x 25Gb/s PIN ROSAs

Transmitter: 4-lane x 25Gb/s LAN-WDM EA-DFB TOSAs (1295.56,1300.05,1304.58,1309.14nm)

10x10G Electrical Serial Interface (CAUI/OTL4.10)

MDIO management interface with Digital Diagnostic

+3.3V power supply

Power consumption less than 12W

Compact size: 144.75 x 82 x 13.6 mm

Operating case temperature: 0 to +70 ℃

Duplex SC or LC Receptacle

ROHs-6 compliant


Applications

100GBase-LR4 Ethernet

ITU-T OTU4


Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.



Compatibility:

Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.


OEM& ODM:

Customized label and package , OEM and ODM service offered.
