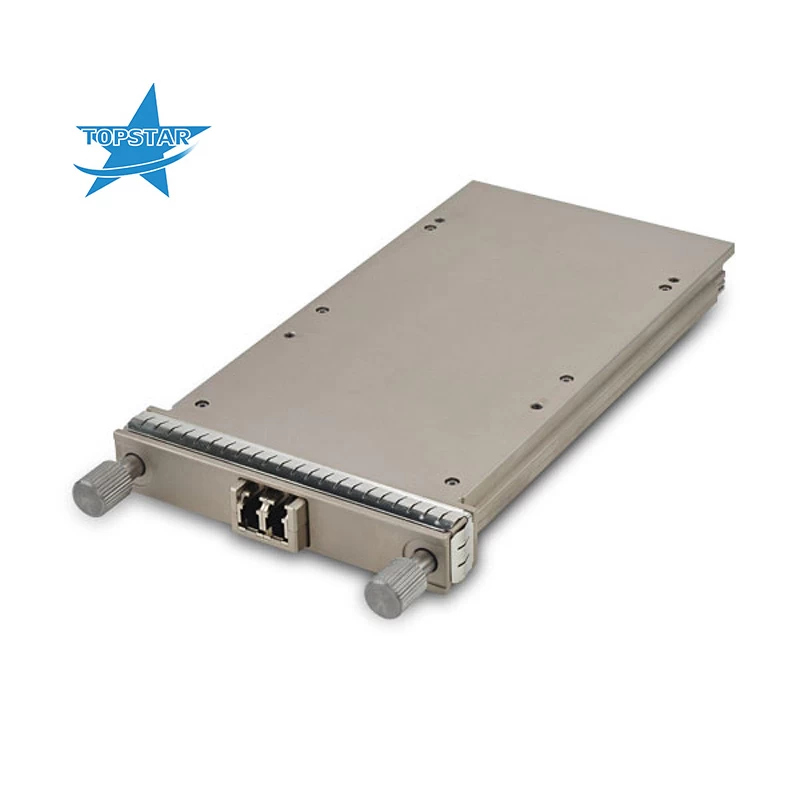

Finisar FTLC1183SDNx 100GBASE-LR4 and OTN Multirate 10km Gen2 CFP Optical Transceiver

Form Factor:

CFP

Finisar’s FTLC1183SDNx second-generation 100GE CFP optical transceiver modules are designed for use in 100 Gigabit Ethernet links and 4x28G OTN client interfaces over single mode fiber. They are compliant with the CFP MSA, IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39). Digital diagnostics functions are available via an MDIO interface, as specified by the CFP MSA and Finisar Application Note AN-2080. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

Warranty3 Years
ConditionNew
Temperature0-70
Data Rate112 Gb/s
Distance10km
Wavelength1310nm
ConnectorLC/SC

Facebook Twitter Pinterest LinkedIn 分享

Description

Description：

Distance:10 km
Data Rate (max):112 Gb/s
Protocol:OTN OTU4 Compliant 100G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:4x LWDM DFB Laser
Receiver:PIN
Voltage Supply:3.3
Connector:LC/SC
Wavelength:1310nm Band

Feature:

Hot-pluggable CFP form factor
Supports 103.1Gb/s and 112Gb/s aggregate bit rate
Power dissipation <16W
RoHS-6 compliant (lead-free)
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
4x28Gb/s DFB-based LAN-WDM transmitter
10x10G MLD electrical interface
Duplex SC or LC receptacles
MDIO management interface
Commercial case temperature: 0°C to 70°C
