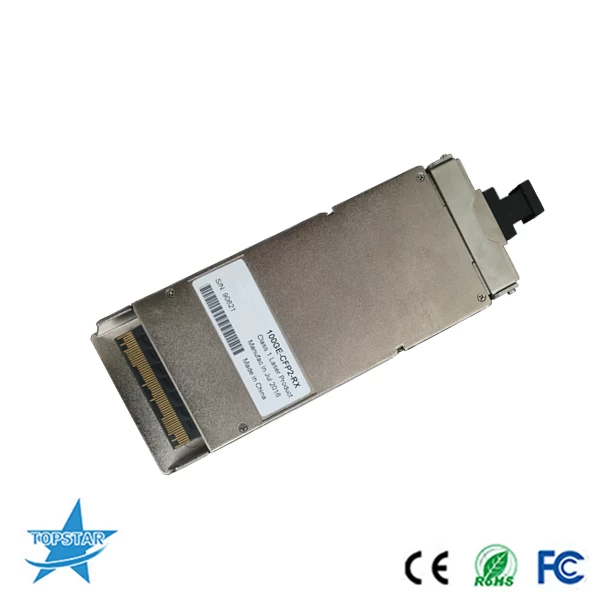

Finisar FTLC8221RFNM Compatible 100GBASE-SR10 850nm 300m 100G CFP2 10x10

The CFP2 optical transceiver module are a high performance, low power consumption, short reachinterconnect solution supporting 100G Ethernet and Telecom. It is compliant with the CFP2 MSA and IEEE P802.3ba 100GBASE-SR10. Topstar CFP2 SR10 modules offer 10 transmit and 10 receive asynchronous channels operating at up to 11.18Gbps per channel.


  • Distance300m
  • Data Rate100G
  • Temperature0℃~70℃
  • Warranty3 Years
  • Wavelength850nm
  • ConnectorMPO

Finisar FTLC8221RFNM Compatible 100GBASE-SR10 850nm 300m 100G CFP2 10x10

Finisar FTLC8221RFNM CFP2 SR10


Features


Compliant to CFP2Hardware Specification Version 1.0

Compliant to CFP2 MSA Management Interface Specification Version 2.2

Compliant to the IEEE 802.3ba(100GBASE-SR10)

Transmission data rate up to 11.18Gbit/s per channel

Up to 300m on OM3 and 400m on OM4 MMF

Power class 1 (<8W max)

OTU4 compatible

10 channels 850nm VCSEL array transmitter

10 channels PIN photo detector array receiver

MDIO digital diagnostic interface and control capabilities.

TX input and RX output CDR retiming

Hot pluggable electrical interface

Operating case temperature:0°C~ +70°C

Single 3.3V power supply

RoHS 6 compliant(lead free)

Utilizes a standard 24/20 lane optical fiber with MPO connector



Applications


100GBE interconnects

High-speed core router connections&Datacom/Telecom switch

Data aggregation and backplane applications

Proprietary protocol and density application



Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.



Compatibility:

Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.


OEM& ODM:

Customized label and package , OEM and ODM service offered.
