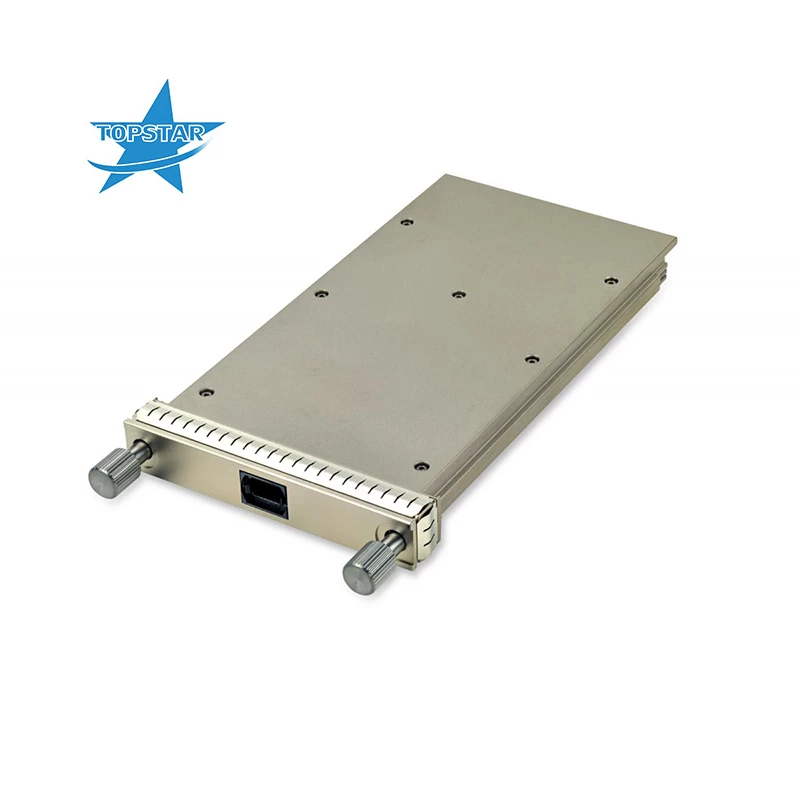

Finisar FTLC8281xCNM 100GBASE-SR10 and OTN Multirate 100m CFP Optical Transceiver

Form Factor:

CFP

Finisar’s FTLC8281RCNM and FTLC8281SCNM 100GE CFP transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the CFP MSA as defined in this document and with IEEE 802.3ba 100GBASE-SR10 including 10x 11.2G OTN applications. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP MSA and Finisar Application Note AN-2106. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

Warranty3 Years
Condition0-75
TemperatureNew
Data Rate103.1G
Distance100m
Wavelength850nm
ConnectorMPT

Facebook Twitter Pinterest LinkedIn 分享

Description

Description:

Distance:100 m
Data Rate (max):112 Gb/s
Protocol:100G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO (MTP24)
Wavelength:850nm Band

Feature:

Hot-pluggable CFP form factor
Supports 103.1Gb/s (FTLC8281RCNM) or dual-rate including 112 Gb/s (FTLC8281SCNM) aggregate bit rates
Power dissipation < 12W
RoHS-6 compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
Uncooled 10x10Gb/s 850nm transmitter
CAUI electrical interface
Single MPO24/MTP24 receptacle
MDIO management interface
