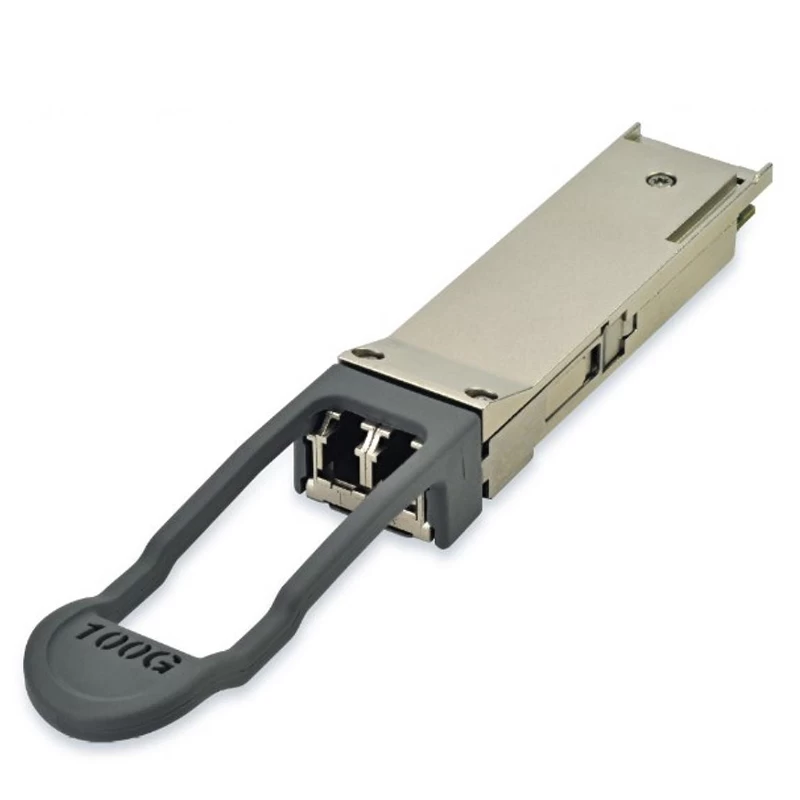

Finisar FTLC9152RGPL 100G 100m SWDM4 QSFP28 Optical Transceiver

Form Factor:

QSFP28

Finisar’s FTLC9152RGPL 100G QSFP28 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-2171. The optical transceiver is RoHS compliant as described in Finisar Application Note AN-2038.

Warranty1 Year
ConditionNew
Temperature0-70
Data Rate103.1 Gb/s
Distance100m
Wavelength850nm
ConnectorLC

Facebook Twitter Pinterest LinkedIn 分享

Description

Product Description:

Distance:100 m
Data Rate (max):103.1 Gb/s
Protocol:100G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:4x SWDM VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:850nm Band

Product Feature:

Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rate
Power dissipation <3.5W
RoHS compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 75m/100m/150m on OM3/OM4/OM5 Duplex Multimode Fiber (MMF)
4x25Gb/s 850nm VCSEL-based transmitter
4x25G CAUI-4 electrical interface
Duplex LC receptacles
I2C management interface
