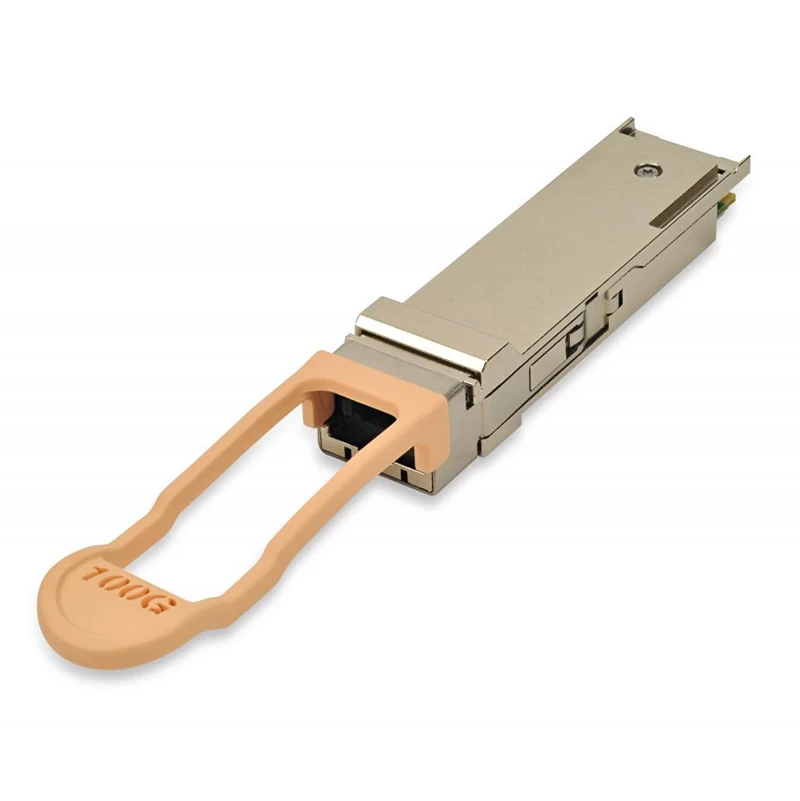

Finisar FTLC9555FEPM 128G Fibre Channel Parallel 100m MMF Gen2 QSFP28 Optical Transceiver

Product Feature:


  • Hot-pluggable QSFP28 form factor
  • Supports up to 112.2Gb/s aggregate bit rate
  • Power dissipation <2.5W
  • RoHS compliant
  • Commercial case temperature range of 0°C to 70°C
  • Single 3.3V power supply
  • Maximum link length of 100m on OM4 Multimode Fiber (MMF)
  • 4x28Gb/s 850nm VCSEL-based transmitter
  • 4x25G electrical interface
  • Single MPO12 receptacle
  • I2C management interface


  • Warranty1 Year
  • ConditionNew
  • Temperature0-70
  • Data Rate128G
  • Distance100m
  • Wavelength850nm
  • ConnectorLC

Product Description:


Distance:100 m
Data Rate (max):112.2 Gb/s
Protocol:8x Fibre Channel Compliant 16x Fibre Channel Compliant 32x Fibre Channel Compliant 128x Fibre Channel Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:4x VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO (MTP12)
Wavelength:850nm Band
