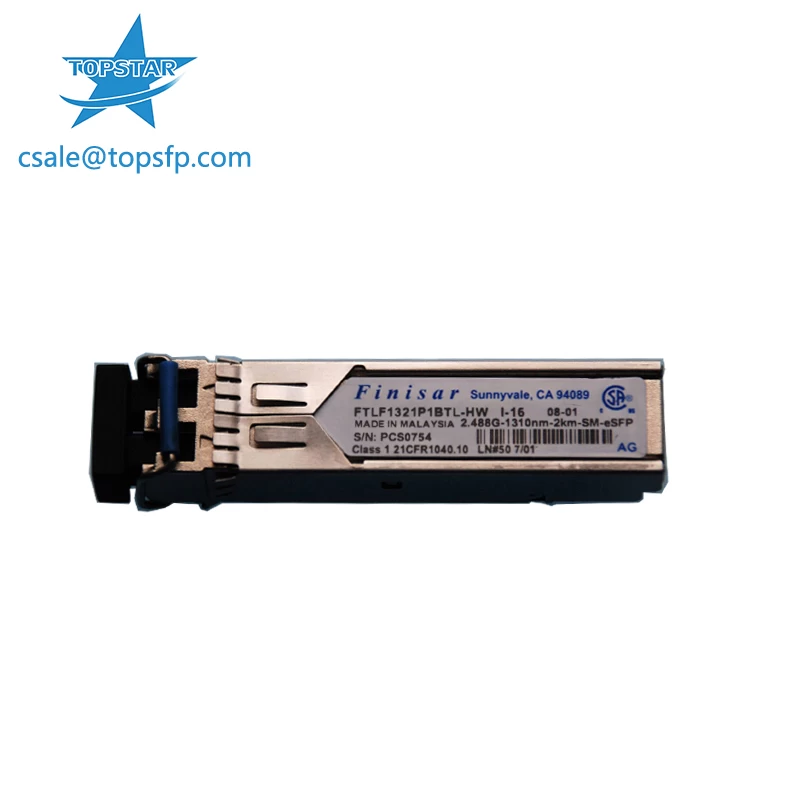

Finisar FTLF1321S1MTL OC-48 SR-1 2G 1310nm 2km Multirate 2×10 SFF Optical Transceiver

Finisar’s FTLF1321S1xTL Small Form Factor (SFF) transceivers are compatible with the Small Form Factor Multi-Sourcing Agreement (MSA). They comply with SONET OC-48 SR-1 (SDH STM S-16) standards, and are compatible with Gigabit Ethernet as specified in IEEE Std 802.3, Fibre Channel FC-PI 13.0, SONET OC-12 and SONET OC-3 standards2. The transceivers are RoHS compliant and lead-free per Directive 2002/95/EC and Finisar Application Note AN-2038


  • Warranty1 Year
  • ConditionNew
  • Temperature-40°C-85°C
  • Data Rate2.125G
  • Distance2km
  • Wavelength1310nm
  • ConnectorLC

Finisar FTLF1321S1MTL OC-48 SR-1 2G 1310nm 2km Multirate 2×10 SFF Optical Transceiver

Finisar OC-48 SR-1/STM-16 Multirate 2×10 Pin SFF Transceiver


Product Fectures

Brand Finisar
Original Place Malaysia
Form Factor SFP
Part Number FTLF1321S1MTL
Datarate 2.125G
Wavelength 1310nm
Distance 2km
Connector LC Connector
Temperature -40-85°C
Warranty
1 year

FTLF1321S1MTL

Details

Up to 2.67Gb/s bi-directional data links

Standard 2x10 pin SFF footprint (MSA compliant)

Analog diagnostics functions

Uncooled 1310nm FP laser transmitter

Duplex LC connector

very low jitter

Metal enclosure, for lower EMI

Single 3.3V power supply

Low power dissipation <700 mW typical

Extended operating temperature range: -40°C to 85°C


APPLICATIONS


SONET OC-48 SR-1 / SDH STM I-16.1

SONET OC-12 SR-1 / SDH STM I-4.1

SONET OC-3 SR-1/ SDH STM I-1.1

Gigabit Ethernet / 1x/2x Fibre Channel
