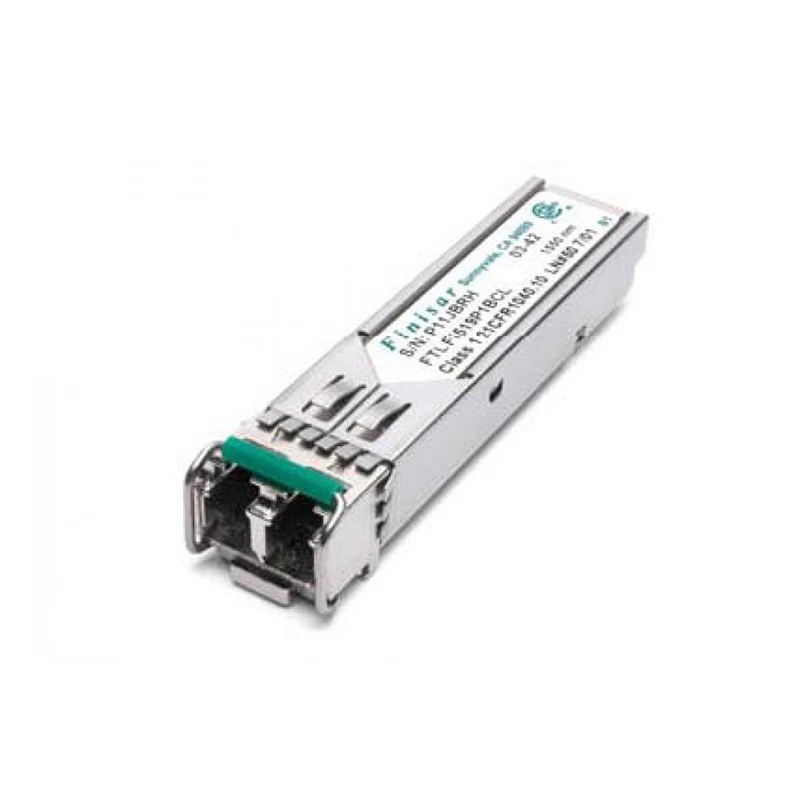

Finisar FTLF1519P1xCL 1000BASE-ZX and 2G Fibre Channel (2GFC) 80km SFP Optical Transceiver

Form Factor:
SFP

Finisar's FTLF1519P1xCL Small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE Std 802.3, and 1x and 2x Fibre Channel as defined in FC-PI 13.0. They are RoHS compliant and lead-free per Directive 2011/65/EU and Finisar Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.


  • Warranty3 Years
  • ConditionNew
  • Temperature-10-70
  • Data Rate2.125 Gb/s
  • Distance80km
  • Wavelength1550nm
  • ConnectorLC

Product Description:


Distance:90 km
Data Rate (max):2.125 Gb/s
Protocol:Optical Gigabit Ethernet Compliant 1x Fibre Channel Compliant 2x Fibre Channel Compliant Wireless CPRI Compliant
Low End Case Temperature (°C):-10
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:DFB Laser
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:1550nm


Product Feature:


Up to 2.125Gb/s bi-directional data links
Hot-pluggable SFP footprint
Built-in digital diagnostic functions
Uncooled 1550nm DFB laser transmitter
Duplex LC connector
RoHS compliant and Lead Free
Metal enclosure, for lower EMI
Single 3.3V power supply
Up to 80 km on 9/125μm SMF
Low power dissipation <700mW typical
Extended operating temperature range: -10°C to 70°C
