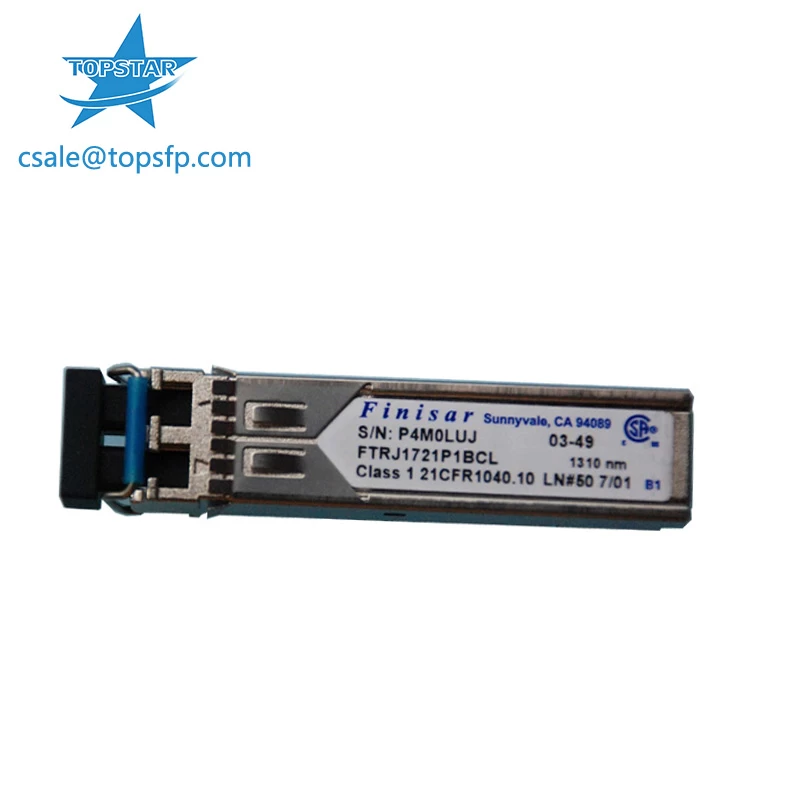

Finisar FTLF1721S1xCL OC-48 LR-1/STM L-16.1 Multirate 2x10 SFF Transceiver


Finisar’s FTLF1721S1xCL Small Form Factor (SFF) transceivers are compatible with the Small Form Factor Multi-Sourcing Agreement (MSA) . They comply with SONET OC48 LR-1 (SDH STM L-16.1) standards , and are compatible with Gigabit Ethernet as specified in IEEE Std 802.3 , Fibre Channel FC-PI 13.0 , SONET OC-12 and SONET OC-3 standards . The transceivers are RoHS compliant and lead-free per Directive 2002/95/EC and Finisar Application Note AN-2038



  • Distance40km
  • Data Rate2.125G
  • Temperature-10°C-70°C
  • ConditionOriginal
  • Warranty1 Year
  • Wavelength1310nm
  • ConnectorLC

Finisar FTLF1721S1xCL OC-48 LR-1/STM L-16.1 Multirate 2x10 SFF Transceiver

SFP 2.5 G 1310 nm 40 km Conector LC con DDM  Finisar FTLF1721S1MCL



Product Fectures

Brand Finisar
Original Place Malaysia
Form Factor SFP
Part Number FTLF1721S1xCL
Datarate 2.125G
Wavelength 1310nm
Distance 40km
Connector LC Connector
Temperature -10-70°C
Warranty
1 year

Finisar FTLF1721S1xCL

Details

Up to 2.67Gb/s bi-directional data links

Standard 2x10 pin SFF footprint (MSA compliant)

Analog diagnostics functions

Uncooled 1310nm DFB laser transmitter

APD Receiver

Duplex LC connector

Very low jitter

Metal enclosure, for lower EMI

Single 3.3V power supply

Low power dissipation <900mW typical

Extended operating temperature range: -10°C to 70°C





APPLICATIONS


SONET OC-48 LR-1/ SDH STM L-16.1

SONET OC-12 LR-1 / SDH STM L-4.1

SONET OC-3 LR-1 / SDH STM L-1.1

Gigabit Ethernet / 1x/2x Fibre Channel
