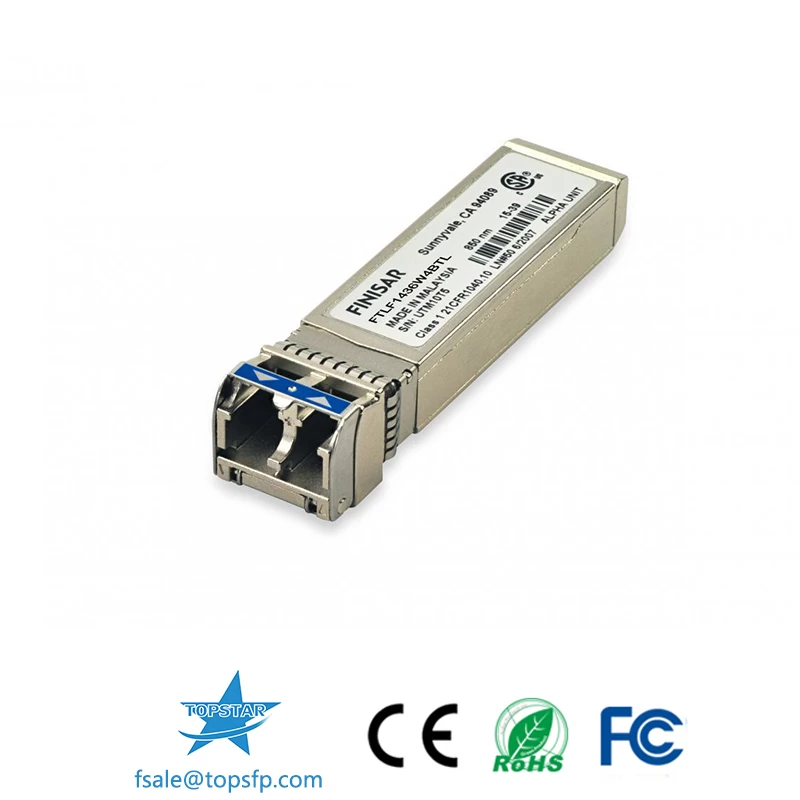

Finisar FTLF3436W4BTxx 25G LR/eCPRI CWDM SFP+ 10km 1310nm SFP28
Finisar FTLF3436W4BTxx are the FTLF3436W4BT27
FTLF3436W4BT29
FTLF3436W4BT31
FTLF3436W4BT33 CWDM Transceiver Module. It can be used in Data Center, Enterprise switch line card applications, Storage, IP network and LAN.
Features
|
Part number
|
Finisar FTLF3436W4BTxx
|
|
Data Rate
|
16G
|
|
Wavelength
|
CWDM
|
|
Distance
|
10KM
|
|
Fiber Type
|
Single-mode Fiber
|
|
Connector
|
LC
|
|
Warranty
|
1-year
|
|
Form Factor
|
SFP+
|
Temperature
|
-5°C to 70°C
|
|
Power Supply
|
3.3V
|
|
Package
|
10pc/CT
|
Product Selection
Product Code
|
Bail Color
|
Center Wavelength
|
FTLF3436W4BT27
|
Gray
|
1271nm
|
FTLF3436W4BT29
|
Violet
|
1291nm
|
FTLF3436W4BT31
|
Blue
|
1310nm
|
FTLF3436W4BT33
|
Green
|
1330nm
|
Specification
-
Up to 25.78 Gb/s bi-directional data links
-
Hot-pluggable SFP+ footprint
-
Built-in digital diagnostic functions
-
1310nm DFB laser transmitter
-
Duplex LC connector
-
RoHS compliant
-
Up to 10 km on 9/125μm SMF
-
Metal enclosure, for lower EMI
-
1.5W maximum power consumption with established link
-
Single 3.3V power supply
-
Operating temperature range: -40°C to 85°C
Application
