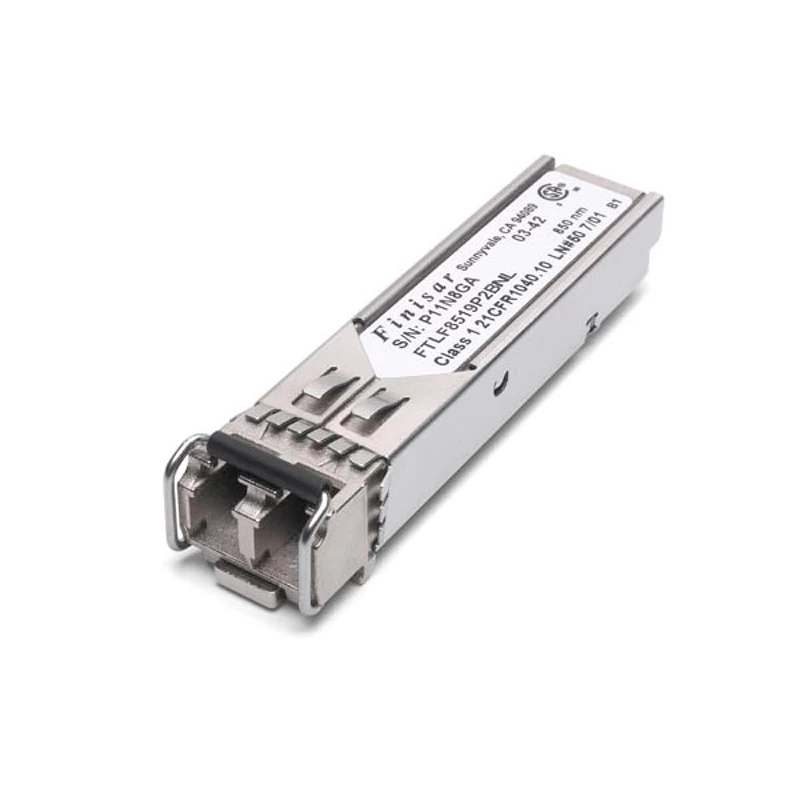

Finisar FTLF8519P3BNL 1000BASE-SX and 2G Fibre Channel (2GFC) 500m Extended Temperature SFP Optical Transceiver

Form Factor: SFP

Finisar's FTLF8519P3BNL Small Form Factor Pluggable (SFP) optical transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3 and Fibre Channel FC- PI-2 Rev. 5.0.  Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.  The transceiver is RoHS-6 compliant per Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.


  • Warranty3 Years
  • ConditionNew
  • Temperature-20-85
  • Data Rate2.125 Gb/s
  • Distance500m
  • Wavelength850nm
  • ConnectorLC

Product Description:


Distance:500 m
Data Rate (max):2.125 Gb/s
Protocol:Optical Gigabit Ethernet Compliant 1x Fibre Channel Compliant 2x Fibre Channel Compliant Wireless CPRI Compliant
Low End Case Temperature (°C):-20
High End Case Temperature (°C):85
Diagnostics:Digital
Transmitter:VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:850nm Band

Product Feature:


Up to 2.125 Gb/s bi-directional data links
Hot-pluggable SFP footprint
Built-in digital diagnostic functions
850nm Oxide VCSEL laser transmitter
Duplex LC connector
RoHS compliant and Lead-Free
Up to 500m on 50/125 µm MMF, 300m on 62.5/125 µm MMF
Metal enclosure, for lower EMI
Single 3.3 V power supply
<500mW power dissipation
Extended operating temperature range: -20°C to 85°C
