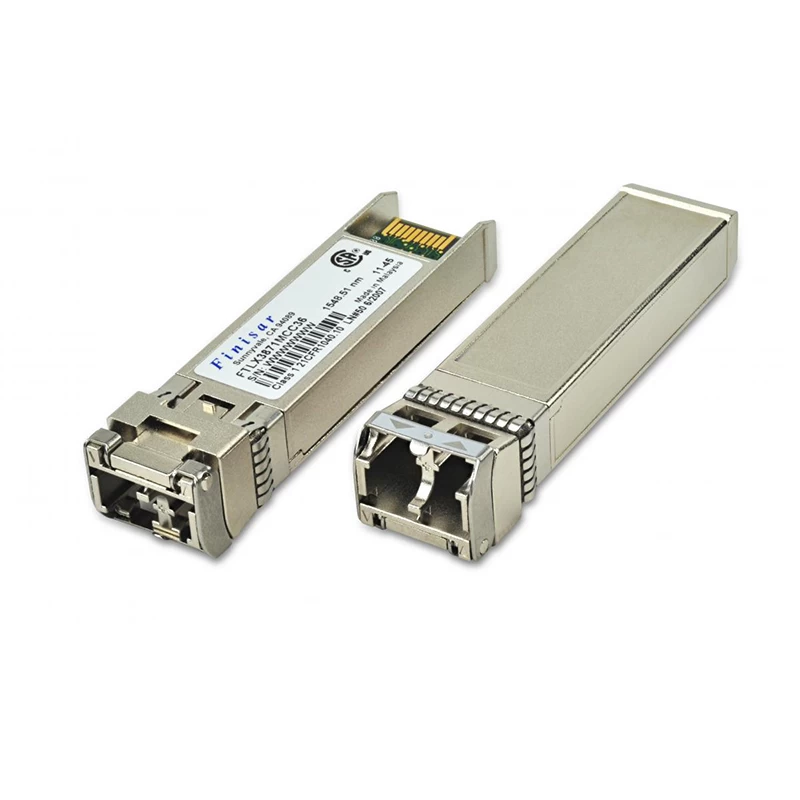

Finisar FTLX3871MCCxx 10G Multi-Protocol Fixed Channel DWDM 80km SFP+ Optical Transceiver

Form Factor:

SFP+

Finisar’s FTLX3871MCCxx optical transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 80km of G.652 single mode fiber. They are compliant with SFF-8431 DS100S1-2Dz(C) and support SONET OC-192, SDH STM-64, 10G Ethernet ZR and 10G Fibre Channel over 80km fiber. Finisar’s FTLX3871MCCxx transceivers use internal retimers (clock and data recovery or CDR) IC’s for both the transmitter and the receiver. This guarantees compliance with the SONET/SDH jitter requirements, and they can be used to set the electrical interface XFI-compliant.

Warranty3 Years
ConditionNew
Temperature-5-70
Data Rate11.3 Gb/s
Distance80km
WavelengthC-Band DWDM Fixed
ConnectorLC

Facebook Twitter Pinterest LinkedIn 分享

Description

Product Description:

Distance:80 km
Data Rate (max):11.3 Gb/s
Protocol:8x Fibre Channel Compliant 10x Fibre Channel Compliant 10 Gigabit Ethernet Compliant Wireless CPRI Compatible
Low End Case Temperature (°C):-5
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:DWDM EML
Receiver:APD
Voltage Supply:3.3
Connector:LC
Wavelength:C-Band DWDM Fixed

Product Feature:

Hot-pluggable SFP+ footprint
Supports 8.5 and 9.95 to 11.3 Gb/s
Up to 80km link length
100 GHz channel spacing
Single 3.3V power supply
Cooled 1550nm EML laser
Limiting electrical interface receiver
Duplex LC connector
Built-in digital diagnostic functions
RoHS-6 compliant (lead-free)
Case temperature range: -5°C to 70°C
