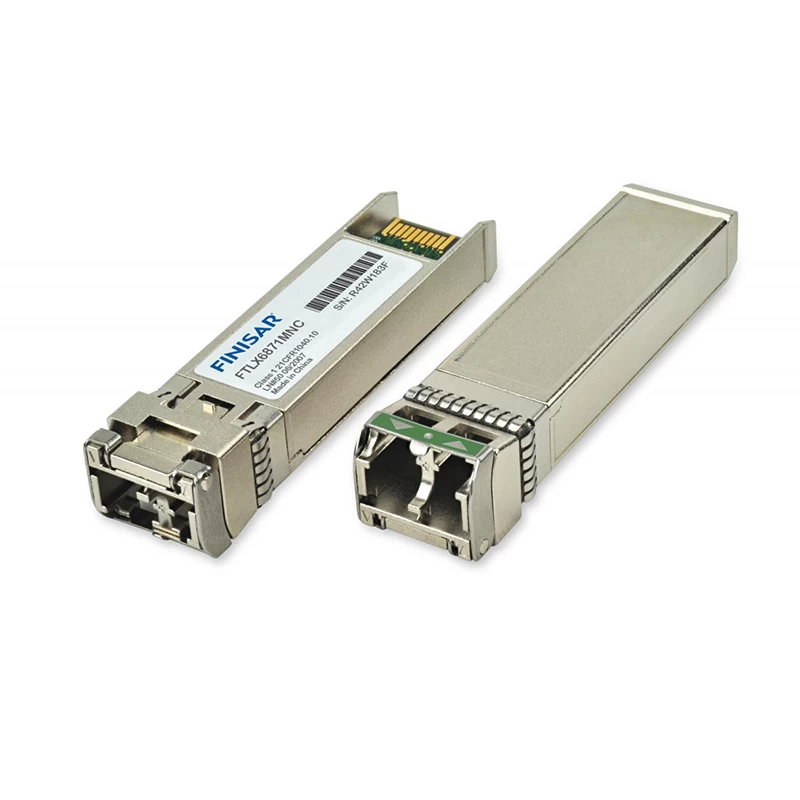

Finisar FTLX6871MNC 10G DWDM 80km Multi-Rate Tunable SFP+ (T-SFP+) with Linear APD Rx Optical Transceiver

Form Factor:
SFP+

Finisar’s FTLX6871MNC optical transceivers are Enhanced Small Form Factor Pluggable Tunable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 80km of G.652 single mode fiber. They are compliant with SFF-8431, SFF-8432, SFF-8690, and G.698.1 DS100S1-2Dz(C), and support SONET OC-192, SDH STM-64, 10G Ethernet ZR  and 10G Fibre Channel over 80km fiber. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.  See Finisar Application Note AN-2038 for more details.


  • Warranty1 Year
  • ConditionNew
  • Temperature-5-85
  • Data Rate11.3 Gb/s
  • Distance80km
  • WavelengthC-Band DWDM Tunable
  • ConnectorLC

Product Description:


Distance:80 km
Data Rate (max):11.3 Gb/s
Protocol:SONET OC-192 Compliant 10x Fibre Channel Compliant 10 Gigabit Ethernet Compliant
Low End Case Temperature (°C):-5
High End Case Temperature (°C):85
Diagnostics:Digital
Transmitter:Tunable + InP MZM
Receiver:Linear APD
Voltage Supply:3.3
Connector:LC
Wavelength:C-Band DWDM Tunable

Product Feature:


Hot-pluggable SFP+ footprint
Supports 8.5 and 9.95 to 11.3 Gb/s
Up to 80km link length
50GHz ITU-based channel spacing (C-Band) with a wavelenght locker
Single 3.3V power supply
Monolithic MZM Tunable TOSA
Linear electrical interface receiver
Duplex LC connector
Built-in digital diagnostic functions
RoHS-6 compliant (lead-free)
Case temperature range: -5°C to 85°C
