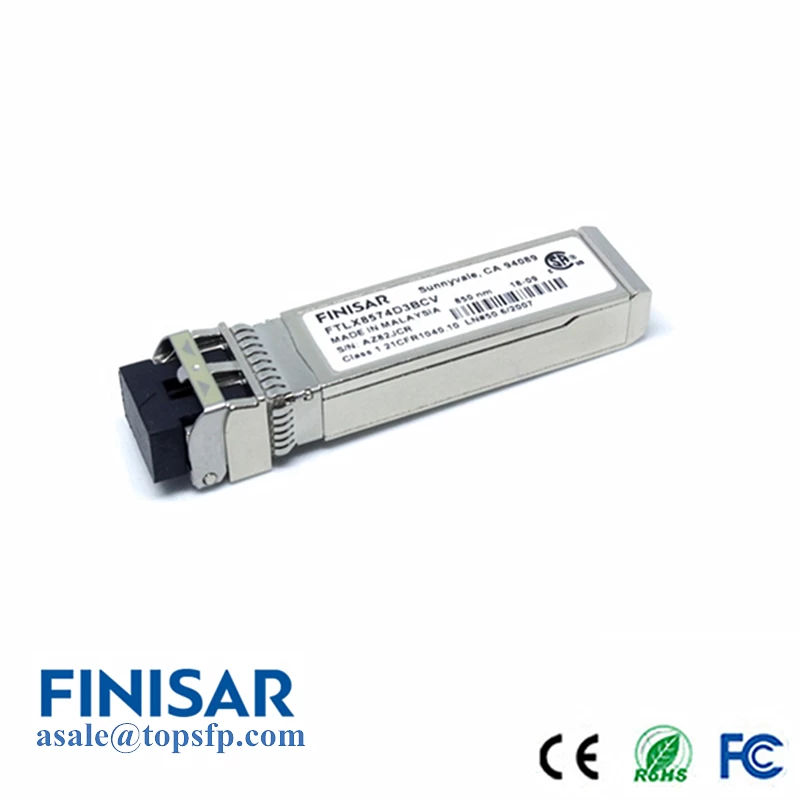

Finisar FTLX8574D3BNL 10GBASE-SR/SW 850nm 400m SFP+ Extended Temperature Optical Module

Finisar’s FTLX8574D3BNL Extended Temperature 10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet links over multimode fiber. They are compliant with SFF-84311 , SFF-84322 , IEEE 802.3-2012 10GBASE-SR/SW3 and 10G Fibre Channel 1200-Mx-SN-I 4 . Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84725 . The FTLX8574D3BNL is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer’s recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. The optical transceiver is compliant per the RoHS Directive 2011/65/EU6 . See Finisar Application Note AN-20387 for more details.


  • Wavelength850nm
  • Distance400m
  • Data Rate10G
  • Temperature-5℃~85℃
  • Warranty1 Year
  • ConnectorDual LC

Finisar FTLX8574D3BNL 10GBASE-SR/SW 850nm 400m SFP+ Extended Temperature Optical Module


Features

Hot-pluggable SFP+ footprint

Supports 9.95 to 10.5 Gb/s bit rates*

Power dissipation < 1W

RoHS-6 compliant (lead-free)

Commercial temperature range -5°C to 85°C

Single 3.3Vpower supply

Maximum link length of 400m on OM4 MMF

Uncooled 850nm VCSEL laser

Receiver limiting electrical interface

Duplex LC connector

Built-in digital diagnostic functions


Applications

10GBASE-SR/SW 10G Ethernet

1200-Mx-SN-I 10G Fibre Channel
