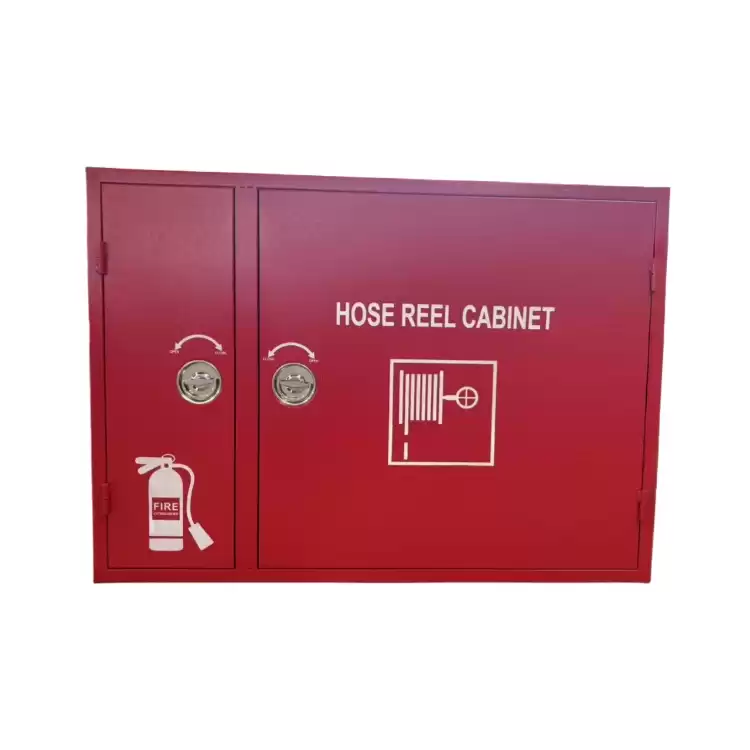

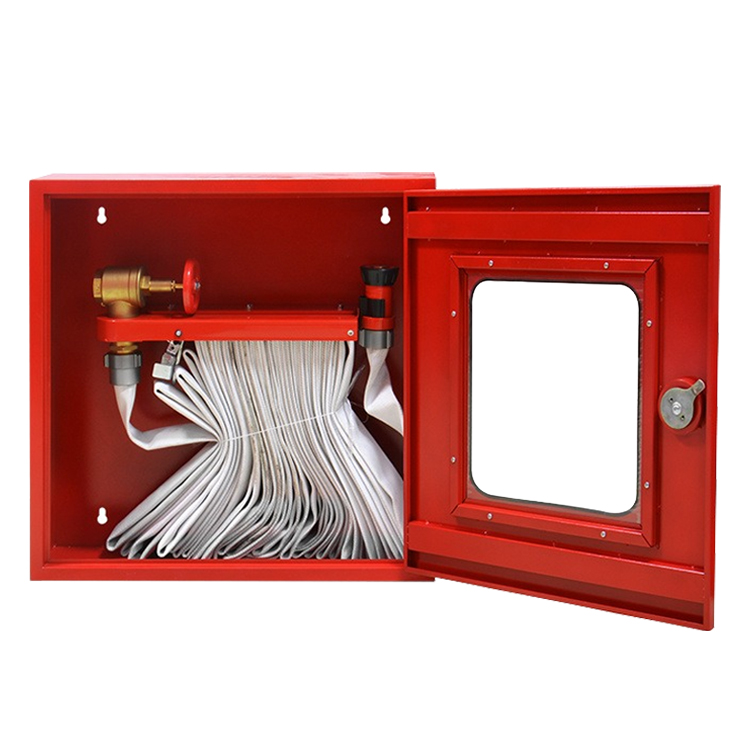

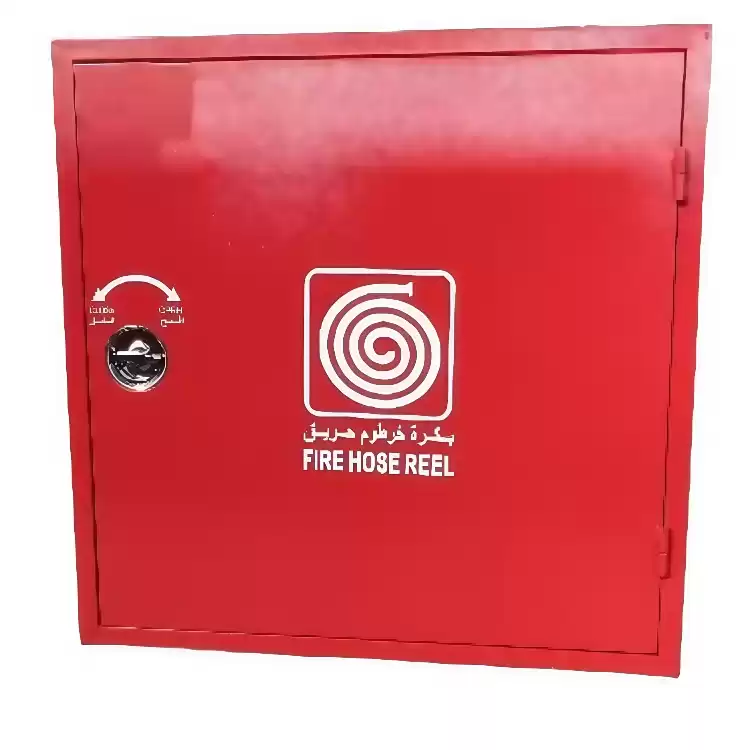

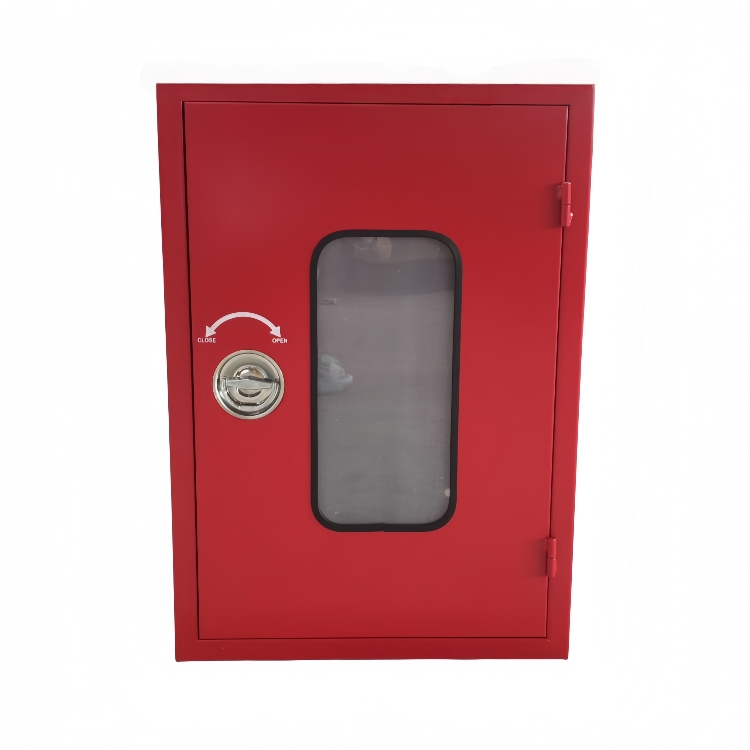

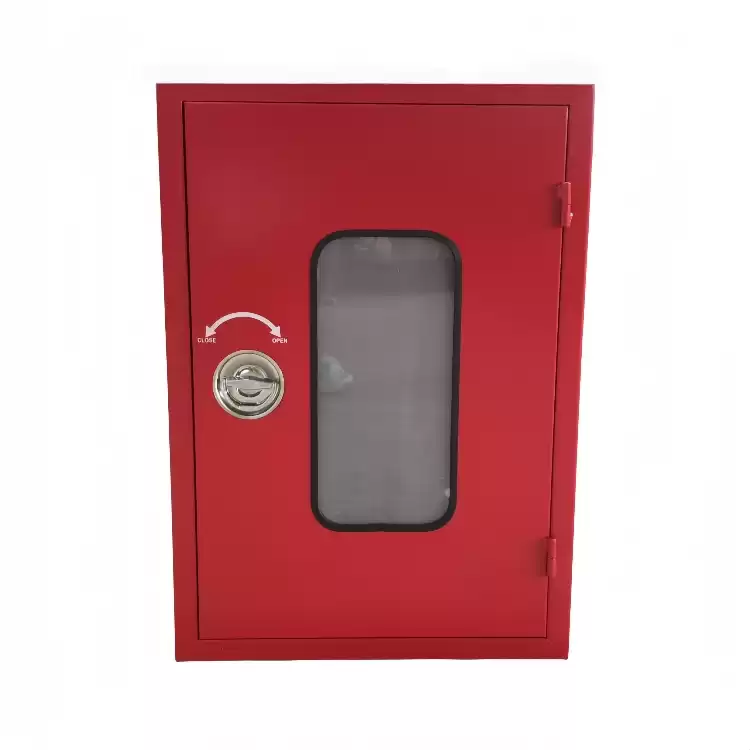

Fire Hose Cabinet

Red mild steel fire hose cabinet for wall mounting, stores fire - fighting equipment for quick small - fire self - rescue.

Facebook Twitter Pinterest LinkedIn 分享

Produ

ct Description



 Made of mild steel, the fire hose cabinet is primarily installed on walls. It comes in two types: recess mounted and wall mounted. Fire - fighting reels, fire extinguishers, fire nozzles, valves, and other equipment can be installed inside the cabinet as per customer requirements.


During manufacturing, advanced laser cutting and automatic welding technologies are employed to guarantee high product quality. Both the interior and exterior of the cabinet are painted, which effectively prevents corrosion and extends the service life of the cabinet.

When a fire breaks out, first drag the fire hose to the fire location, open the copper nozzle of the reel, aim at the fire source, and put out the fire. One end of the hose is connected to a small - caliber fire hydrant, and the other end is connected to a small - caliber water gun. The complete set of fire - fighting reels and ordinary fire hydrants can be placed in a combined fire - fighting box or separately in a special fire - fighting box. The spacing of the fire - fighting reels should ensure that a stream of water can reach any part of the indoor floor.

The fire - fighting reel is intended for non - fire - fighting professionals to self - rescue when a small fire occurs. The diameter of the reel water hose is 16mm, 19mm, or 25mm, with lengths of 16m, 20m, or 25m. The diameter of the water gun is 6mm, 7mm, or 8mm, matching the fire hydrant model. When using a fire hydrant, it is usually operated by two people together and should be used after special training.

Feature

  • Constructed from mild steel for durability.
  • Available in recess mounted and wall mounted types.
  • Can be customized with various fire - fighting equipment.
  • Utilizes advanced laser cutting and automatic welding for quality.
  • Red powder coated inside and out for rust resistance.

Product Parameter

TYPE Content Capacity W*H*D(mm）
Fire hose cabinet Rack assembly 1.5″ x 30m 705 x 705 x 240
Fire hose cabinet Rack assembly + landing valve 1.5″ x 30m + DN65 650 x 800 x 260
Fire hose cabinet Rack assembly + landing valve 2.5″ x 1.5″ x 30m + DN65 850 x 800 x 300
Fire hydrant cabinet Layflat hose + branchpipe 2.5″ x 30m, 1 set 650 x 800 x 260
Fire hydrant cabinet Layflat hose + branchpipe 2.5″ x 30m, 2 set 900 x 930 x 290
Fire hydrant cabinet Layflat hose + branchpipe + others 2.5″ x 30m, 2 sets, etc. 700 x 1000 x 260
Fire extinguisher cabinet Dry powder extinguisher 1 x 6 kg 285 x 655 x 225
Fire extinguisher cabinet Dry powder extinguisher 1 x 9 kg 390 x 770 x 250
Fire extinguisher cabinet Dry powder extinguisher 2 x 6 kg 500 x 650 x 300
Fire extinguisher cabinet Dry powder extinguisher 2 x 9 kg 500 x 800 x 240



FAQ

 Q: What’s the MOQ for your Mild Steel Fire Hose Cabinet?

 A: 50 Pieces.

Q: Can you accept sample order?
A: Yes, we accept samples with little and reasonable charge. But need customer pay sample fees and transport fees first.
Q: What is your payment terms?
A: Payment supports T/T, L/C, etc.
Q: How can I get my order?
A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other forwarder, all with tracking number.
Q: Why choose us?
A: We serve customers for over 20 years—so we’ve got the knowledge and industry experience to help you get it right. Let the professionals at Jinyuan Fire help you select the products that meet your exact needs.
