Fire Resistant Hose Protector Sleeve With Velcro
1.Product
Introduction

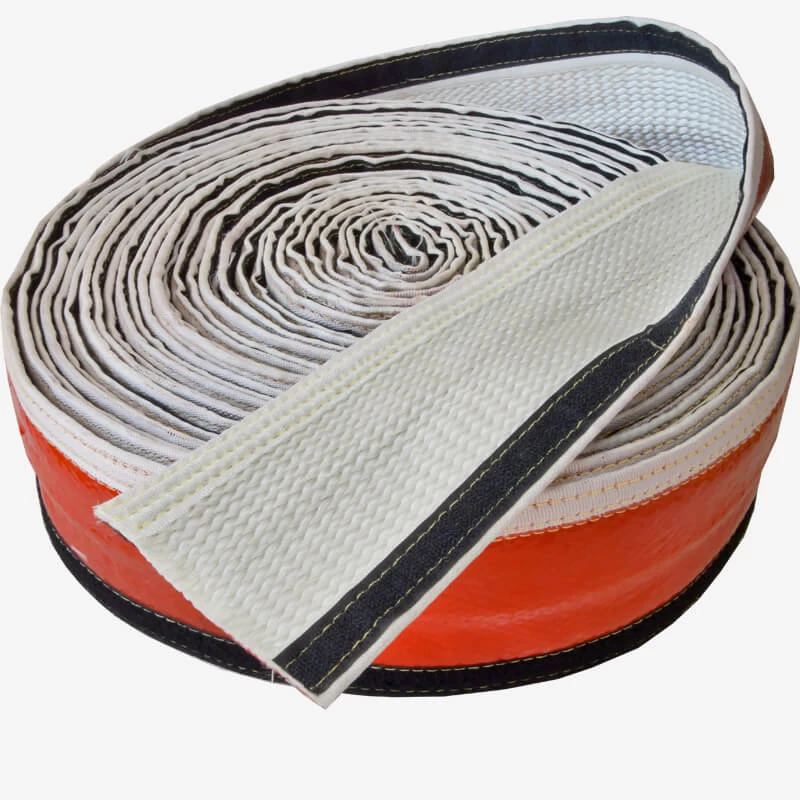

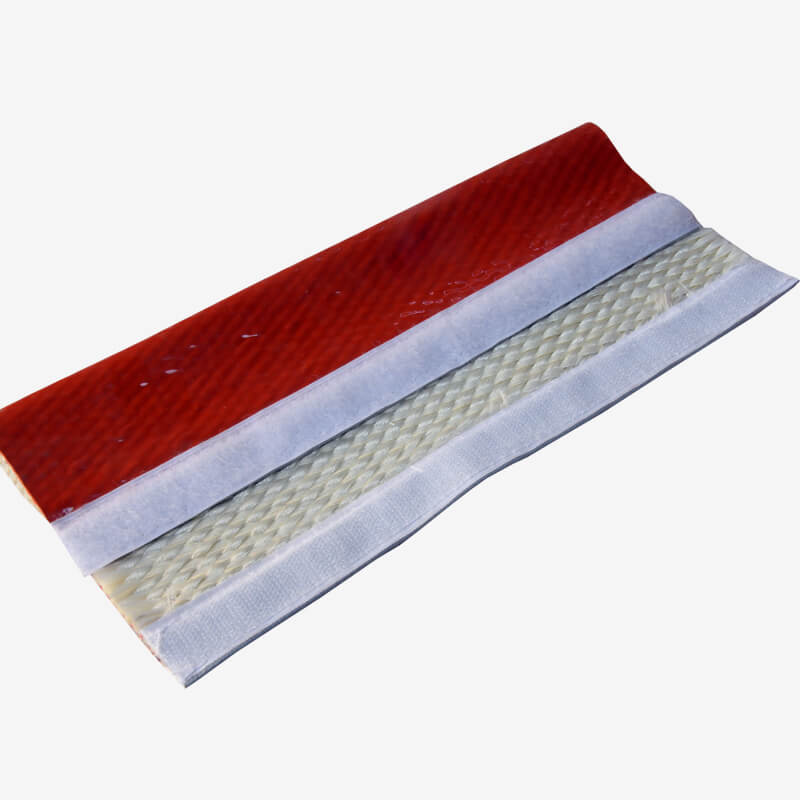

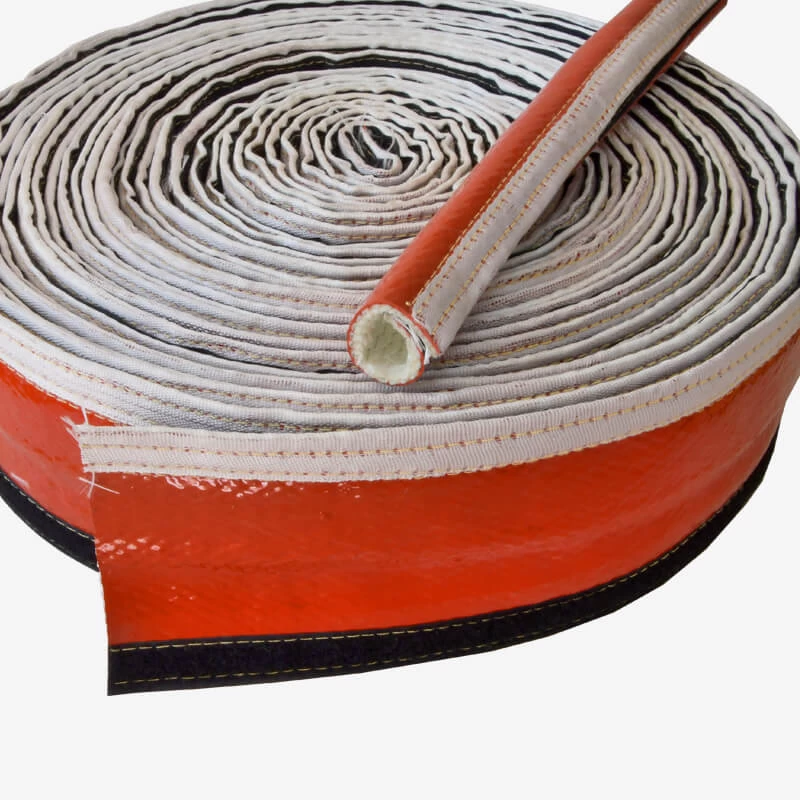

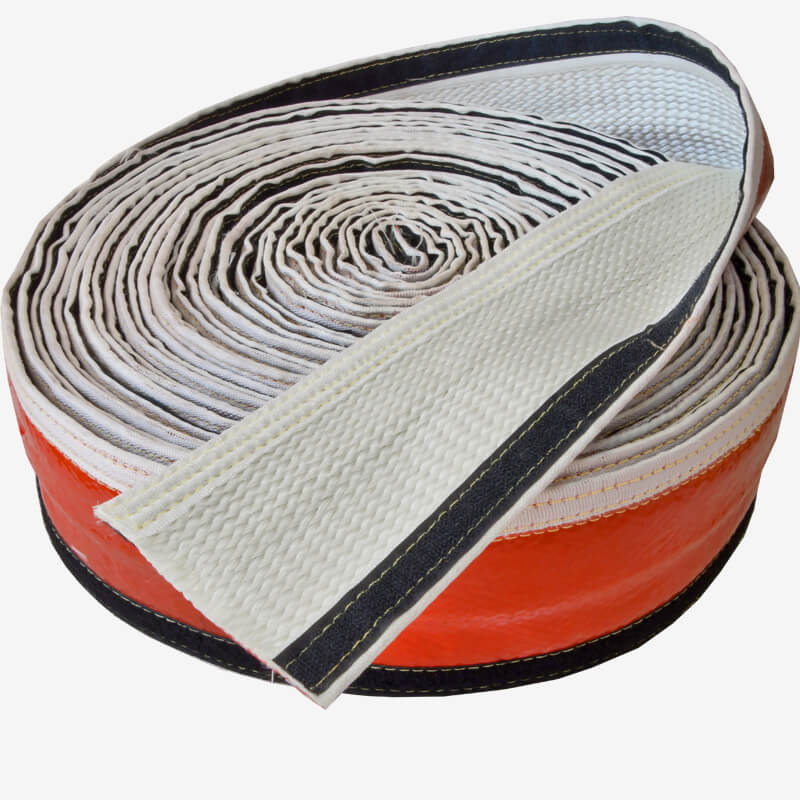

ZBAO Fire Sleeve Velcro
made of Fire sleeve sewn with velcro hook-and-loop closure,which designed as a
kind of heavy duty jacket to protect different kinds of hoses, wires and cables
from the hazards of high heat and occasional flame.
The Velcro construction is
easy for installation and disassembly without disconnect the device or
circuit.Good thermal insulation and fire proof performance make ZBAO Fire sleeve velcro reduce
heat energy losses and protect employees from burning effectively.
2.Product
Characters
|
Materials
|
E-grade fiberglass and Silicone rubber
|
|
Size/inner diameter
|
10mm-115mm
|
|
Rate voltage
|
7kv--25kv,it depends on different size and wall thickness.
|
|
Flammability
|
VW-1
|
|
Working temperature
|
Continues working under 260℃,short time exposure to 1650℃.
|
|
Colour
|
Standard iron oxide red,other colors blue,yellow,silver,black etc are
available.
|
|
Properties
|
High temperature and flame resistant
Thermal insulation
Anti-fire,anti-aging
Shield the splashing of the molten metal
Abrasion resistant,water proof,oil proof,acid and alkali resistant
|
|
Application Industries
|
Metals(Iron & steel), Foundries, Transportation(Aerospace, Auto, Rail
vehicles, Heavy Equipment, Marine), Oil & Gas, Power industry, etc.
|
|
How to use
|
Cover fuel lines, hydraulic and oil lines from heat and to prolong the
life of wiring and hoses in case of fire so that critical systems can
function longer.
|
|
Purpose
|
Protect hose,wires,lines and cables
Reduce heat energy losses
Protect employees from burning effectively
|
3.Standard
Specifications
|
Part No.
|
Inner Dia.
|
Wall Thickness
|
Roll Length/mtr
|
|
mm
|
inch
|
|
ZBAOSF-VL-10
|
10
|
3/8
|
2.1
|
20
|
|
ZBAOSF-VL-15
|
15
|
5/8
|
2.4
|
20
|
|
ZBAOSF-VL-20
|
20
|
3/4
|
2.6
|
20
|
|
ZBAOSF-VL-25
|
25
|
1
|
2.9
|
20
|
|
ZBAOSF-VL-30
|
30
|
1 1/8
|
3.1
|
20
|
|
ZBAOSF-VL-35
|
35
|
1 3/8
|
3.4
|
20
|
|
ZBAOSF-VL-40
|
40
|
1 5/8
|
3.4
|
20
|
|
ZBAOSF-VL-45
|
45
|
1 3/4
|
3.6
|
20
|
|
ZBAOSF-VL-50
|
50
|
2
|
3.7
|
20
|
|
ZBAOSF-VL-55
|
55
|
2 1/6
|
3.8
|
15
|
|
ZBAOSF-VL-60
|
60
|
2 3/8
|
4
|
15
|
|
ZBAOSF-VL-65
|
65
|
2 1/2
|
4.1
|
15
|
|
ZBAOSF-VL-70
|
70
|
2 3/4
|
4.3
|
15
|
|
ZBAOSF-VL-75
|
75
|
3
|
4.3
|
15
|
|
ZBAOSF-VL-80
|
80
|
3 1/8
|
4.5
|
15
|
|
ZBAOSF-VL-85
|
85
|
3 3/8
|
4.5
|
15
|
|
ZBAOSF-VL-90
|
90
|
3 1/2
|
4.6
|
15
|
|
ZBAOSF-VL-95
|
95
|
3 3/4
|
4.6
|
15
|
|
ZBAOSF-VL-100
|
100
|
4
|
4.7
|
10
|
|
ZBAOSF-VL-105
|
105
|
4 1/8
|
4.7
|
10
|
|
ZBAOSF-VL-110
|
110
|
4 3/8
|
4.8
|
10
|
|
ZBAOSF-VL-115
|
115
|
4 1/2
|
4.8
|
10
|
4.EAF
Cable Cover--Fire Sleeve Velcro made of silicon rubber coated fiberglass fabric
Withstand the heat,
abrasion, impacts, flame and molten metal splash normally encountered in AC and
DC EAF operations. Even splashes encountered during wet charges are repelled,
allowing for continued operation of the EAF without unexpected cable failures.
Hook and loop closure
system to enable installation without disconnecting the water cooled cables.
|
ZBAO Part No.
|
ZBSF-VL-F
|
|
Mteraial
|
Silicon rubber
Fiberglass Fabric
|
|
Thickness.
|
3.0mm
|
|
Inner Dia.
|
≤310mm
|
