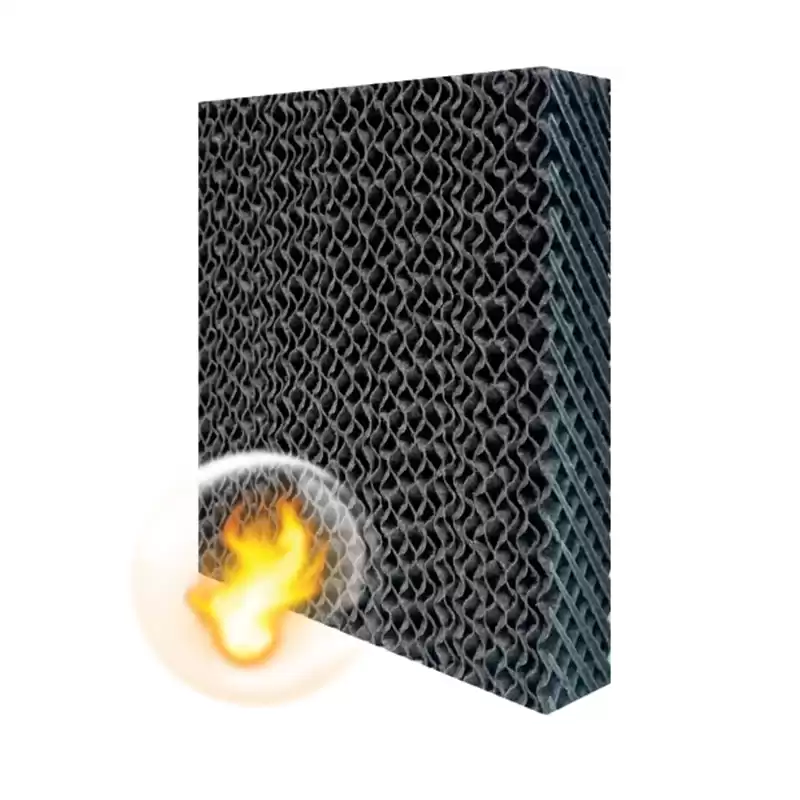

Characteristics Of Fireproof Evaporative Cooling Pad
●Imported polymer organic-inorganic composite materials are processed and formed by special technology, and the structure is firm.long lasting.
●With B1 fire rating, the combustion performance will not be reduced due to water spraying.
●Good water absorption performance, high evaporation efficiency, good cooling and humidification effect.
Specification:
| Model Specifications |
Water Absorption |
Water Absorption Height (mm/min) |
Height H(mm) |
Width W(mm) |
Thickness D(mm) |
Corrugation Height h(mm) |
Corrugation Angle α、ß (°) |
| ZF18M 6090 Type |
≥255% |
55/10 |
≤800 |
≤500 |
30~300 |
6 |
45 |
| ZD100H 7090 Type |
≥262% |
61/10 |
≤800 |
≤500 |
50~300 |
7 |
45 |
| ZB22Z 5090Type |
≥255% |
62/10 |
≤2170 |
≤1000 |
30~300 |
5 |
45 |
| ZB22Z 7090 Type |
≥238% |
76/10 |
≤2170 |
≤1000 |
50~300 |
7 |
45 |
Characteristics:

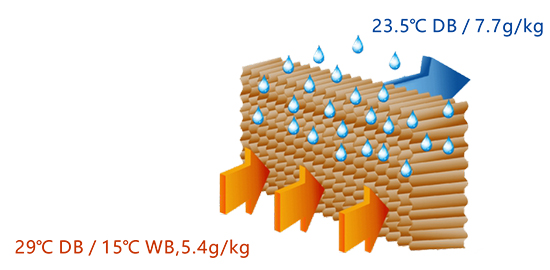

Evaporative Cooling Introduction

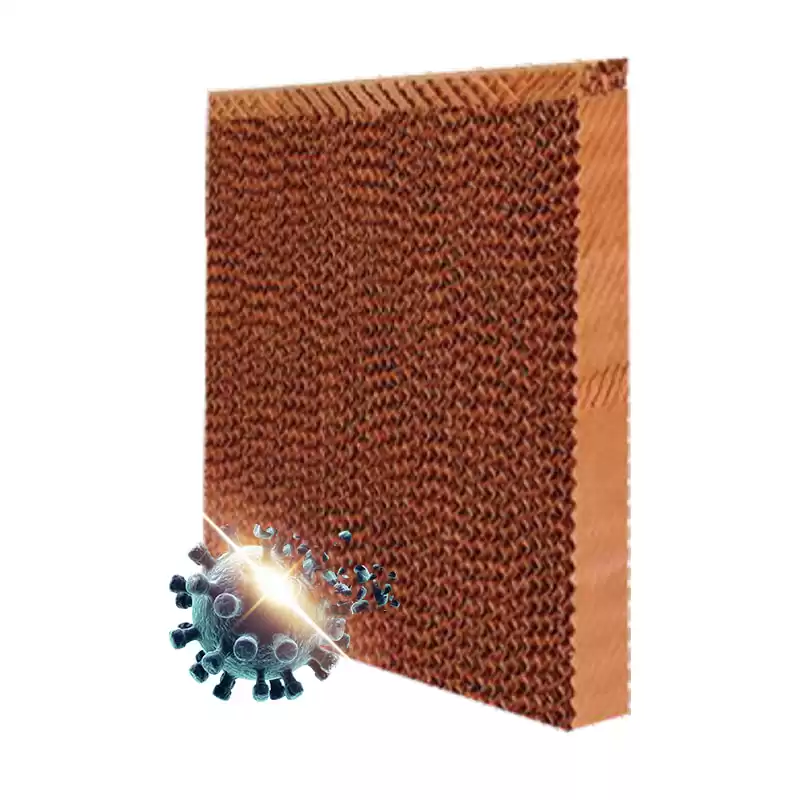

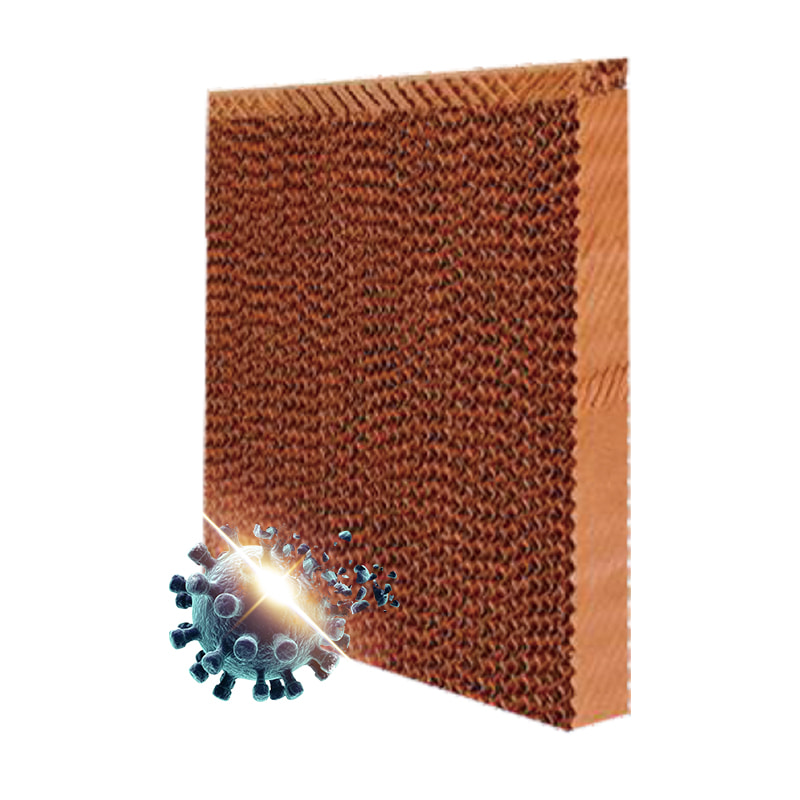

The honeycomb structure media made of high-grade corrugated fiber material by special process has the characteristics of good water absorption, high wet stiffness, anti-bacterial and anti-mildew, long service life etc.

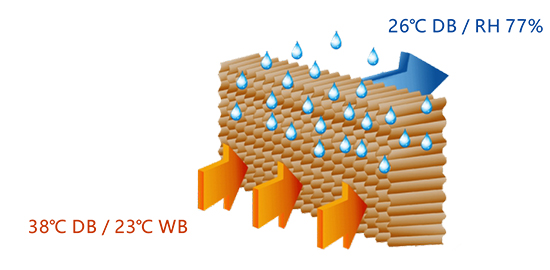

Outdoor fresh air cooling
* An example of a evaporative cooling pad thickness of 100 mm.
Humidify the indoor air
* An example of a evaporative cooling pad thickness of 35 mm.
