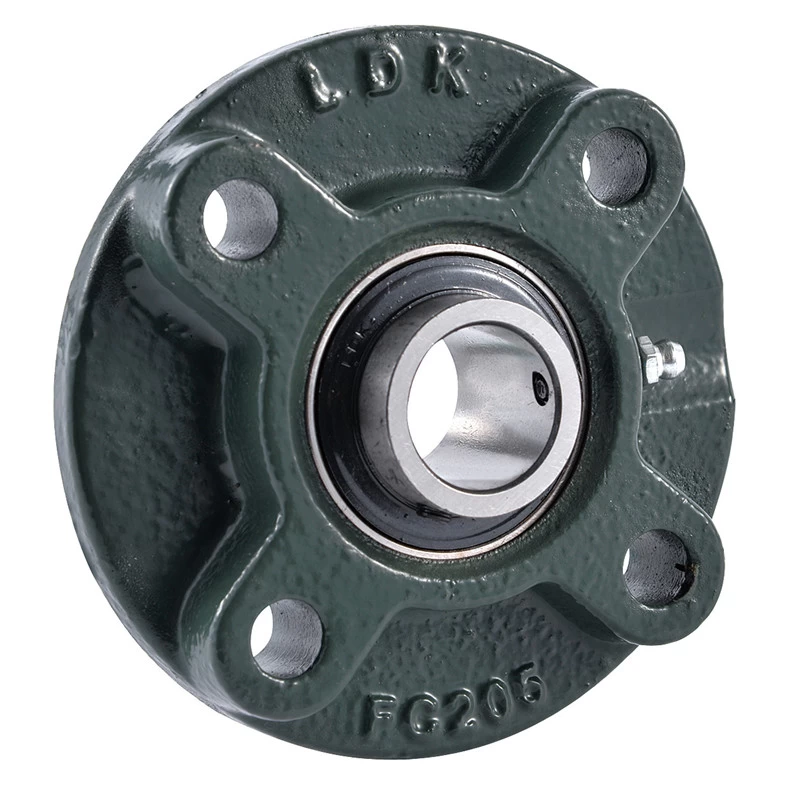

Flange Cartridge Bearing Units UCFC2

UCFC  Standard duty,Wider inner ring bearing,Setscrew locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.

Facebook Twitter Pinterest LinkedIn 分享

Flange Cartridge Bearing Housing UCFC210

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight (kg)
d D2 P J A2 N L H1 A1 D1 B S Z
(in) (mm)
UCWFC201    12 90 70 49.5 10 10 4 5 19 55 27.4 11.5 25.9 M8 0.64
UCWFC201-8 1/2   90 70 49.5 10 10 4 5 19 55 27.4 11.5 25.9 M8 0.64
UCWFC202    15 90 70 49.5 10 10 4 5 19 55 27.4 11.5 25.9 M8 0.60
UCWFC202-9  9/16    90 70 49.5 10 10 4 5 19 55 27.4 11.5 25.9 M8 0.60
UCWFC202-10 5/8   90 70 49.5 10 10 4 5 19 55 27.4 11.5 25.9 M8 0.60
UCWFC203    17 90 70 49.5 10 10 4 5 19 55 27.4 11.5 25.9 M8 0.58
UCWFC203-11 11/16   90 70 49.5 10 10 4 5 19 55 27.4 11.5 25.9 M8 0.58
UCFC204    20 100 78 55.1 10 12 5 7 20.5 62 31 12.7 28.3 M10 0.75
UCFC204-12 3/4   100 78 55.1 10 12 5 7 20.5 62 31 12.7 28.3 M10 0.75
UCFC205    25 115 90 63.6 10 12 6 7 21 70 34.1 14.3 29.8 M10 1.00
UCFC205-14  7/8    115 90 63.6 10 12 6 7 21 70 34.1 14.3 29.8 M10 1.00
UCFC205-15  15/16    115 90 63.6 10 12 6 7 21 70 34.1 14.3 29.8 M10 1.00
UCFC205-16 1   115 90 63.6 10 12 6 7 21 70 34.1 14.3 29.8 M10 1.00
UCFC206    30 125 100 70.7 10 12 8 8 23 80 38.1 15.9 32.2 M10 1.30
UCFC206-17  1-1/16    125 100 70.7 10 12 8 8 23 80 38.1 15.9 32.2 M10 1.30
UCFC206-18  1-1/8    125 100 70.7 10 12 8 8 23 80 38.1 15.9 32.2 M10 1.30
UCFC206-19  1-3/16    125 100 70.7 10 12 8 8 23 80 38.1 15.9 32.2 M10 1.30
UCFC206-20 1-1/4   125 100 70.7 10 12 8 8 23 80 38.1 15.9 32.2 M10 1.30
UCFC207    35 135 110 77.8 11 14 8 9 26 90 42.9 17.5 36.4 M12 1.75
UCFC207-20  1-1/4    135 110 77.8 11 14 8 9 26 90 42.9 17.5 36.4 M12 1.75
UCFC207-21  1-5/16    135 110 77.8 11 14 8 9 26 90 42.9 17.5 36.4 M12 1.75
UCFC207-22  1-3/8    135 110 77.8 11 14 8 9 26 90 42.9 17.5 36.4 M12 1.75
UCFC207-23 1-7/16   135 110 77.8 11 14 8 9 26 90 42.9 17.5 36.4 M12 1.75
UCFC208    40 145 120 84.8 11 14 10 9 26 100 49.2 19 41.2 M12 2.00
UCFC208-24  1-1/2    145 120 84.8 11 14 10 9 26 100 49.2 19 41.2 M12 2.00
UCFC208-25 1-9/16   145 120 84.8 11 14 10 9 26 100 49.2 19 41.2 M12 2.00
UCFC209    45 160 132 93.3 10 16 12 14 26 105 49.2 19 40.2 M14 2.50
UCFC209-26  1-5/8    160 132 93.3 10 16 12 14 26 105 49.2 19 40.2 M14 2.50
UCFC209-27  1-11/16    160 132 93.3 10 16 12 14 26 105 49.2 19 40.2 M14 2.50
UCFC209-28 1-3/4   160 132 93.3 10 16 12 14 26 105 49.2 19 40.2 M14 2.50
UCFC210    50 165 138 97.6 10 16 12 14 28 110 51.6 19 42.6 M14 2.95
UCFC210-30  1-7/8    165 138 97.6 10 16 12 14 28 110 51.6 19 42.6 M14 2.95
UCFC210-31  1-15/16    165 138 97.6 10 16 12 14 28 110 51.6 19 42.6 M14 2.95
UCFC210-32 2   165 138 97.6 10 16 12 14 28 110 51.6 19 42.6 M14 2.95
UCFC211    55 185 150 106.1 13 19 12 15 30 125 55.6 22.2 46.4 M16 4.00
UCFC211-32  2   185 150 106.1 13 19 12 15 30 125 55.6 22.2 46.4 M16 4.00
UCFC211-34  2-1/8    185 150 106.1 13 19 12 15 30 125 55.6 22.2 46.4 M16 4.00
UCFC211-35 2-3/16   185 150 106.1 13 19 12 15 30 125 55.6 22.2 46.4 M16 4.00
UCFC212    60 195 160 113.1 17 19 12 15 35 135 65.1 25.4 56.7 M16 4.90
UCFC212-36  2-1/4    195 160 113.1 17 19 12 15 35 135 65.1 25.4 56.7 M16 4.90
UCFC212-38  2-3/8    195 160 113.1 17 19 12 15 35 135 65.1 25.4 56.7 M16 4.90
UCFC212-39 2-7/16   195 160 113.1 17 19 12 15 35 135 65.1 25.4 56.7 M16 4.90
UCFC213    65 205 170 120.2 16 19 14 15 36 145 65.1 25.4 55.7 M16 5.35
UCFC213-40 2-1/2   205 170 120.2 16 19 14 15 36 145 65.1 25.4 55.7 M16 5.35
UCFC214    70 215 177 125.1 17 19 14 18 38 150 74.6 30.2 61.4 M16 6.90
UCFC214-44 2-3/4   215 177 125.1 17 19 14 18 38 150 74.6 30.2 61.4 M16 6.90
UCFC215    75 220 184 130.1 18 19 16 18 39 160 77.8 33.3 62.5 M16 7.50
UCFC215-47  2-15/16    220 184 130.1 18 19 16 18 39 160 77.8 33.3 62.5 M16 7.50
UCFC215-48 3   220 184 130.1 18 19 16 18 39 160 77.8 33.3 62.5 M16 7.50
UCFC216   80 240 200 141.4 18 23 16 18 42 170 82.6 33.3 67.3 M20 8.70
UCFC217    85 250 208 147.1 18 23 18 20 45 180 85.7 34.1 69.6 M20 10.30
UCFC217-52 3-1/4   250 208 147.1 18 23 18 20 45 180 85.7 34.1 69.6 M20 10.30
UCFC218    90 265 220 155.5 22 23 18 20 50 190 96 39.7 78.3 M20 13.50
UCFC218-56 3-1/2   265 220 155.5 22 23 18 20 50 190 96 39.7 78.3 M20 13.50
